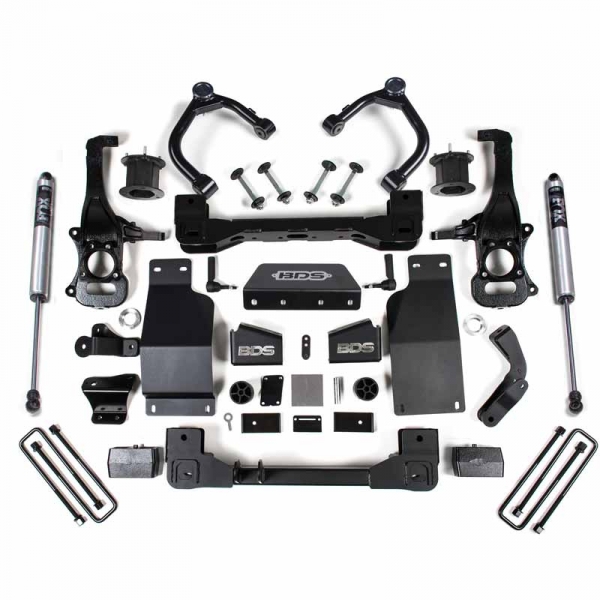

BDS Suspension BDS1802FS 4" Lift Kit With Fox 2.0 Shocks
PART#
BDS1802FS | SKU STUBDS1802FS
Vehicle Fitment For:
2020-2024 GM Silverado/Sierra 1500 3.0L Duramax 4WD
See full application list below
$2,432.84
Truck Freight Item(Shipping calculated at checkout)
Description
Lift your 2020-2024 GM Silverado/Sierra 1500 3.0L Duramax 4WD with a BDS Suspension BDS1802FS 4" Lift Kit With Fox 2.0 Series Shock from XDP. Specially designed to offer improved off-road capability while maintaining on-road handling and comfort, this 4" IFS system improves ground clearance and allows more wheel fitment options than any other kit on the market. The BDS 4" kits come complete with everything you need to properly lift your truck and allow clearance for up to 35" tires. The goal with these kits is to build off the factory steering and suspension geometry to offer the optimized strength, safety, and performance you've come to expect from BDS Suspension.
Parts list includes high strength 1/4" steel crossmembers, precision machined ductile iron steering knuckles, heavy duty tie rod ends, multipoint differential drop brackets, front and differential skid plates, performance series upper control arms, top mounted strut spacers, sway bar relocation, brake line relocation, rear block kit, and FOX 2.0 gas shocks. Kits allow compatibility with more tire/wheel options than other lift kits on the market. These systems are not only built for daily driving but will handle most any offroad excursion you want to tackle and provide extra ground clearance and heavy-duty skid plates. Take your GM truck to the next level with BDS.
33"x12.50 w/20x9/22x9 and 4.5 - 6.25" back spacing
33"x12.50 w/17x8/17x9/18x9 and 4.5" back spacing
*trimming may be required
Parts list includes high strength 1/4" steel crossmembers, precision machined ductile iron steering knuckles, heavy duty tie rod ends, multipoint differential drop brackets, front and differential skid plates, performance series upper control arms, top mounted strut spacers, sway bar relocation, brake line relocation, rear block kit, and FOX 2.0 gas shocks. Kits allow compatibility with more tire/wheel options than other lift kits on the market. These systems are not only built for daily driving but will handle most any offroad excursion you want to tackle and provide extra ground clearance and heavy-duty skid plates. Take your GM truck to the next level with BDS.
Features:
- 4" Lift Kit
- Rear Lift Blocks
- Front Skid Plate
- Differential Skid Plate
- BDS NX2 Nitro Series
- Extended Sway Bar Links
- Top Mounted Strut Spacers
- High Arched Crossmembers
- Brake Line Relocation Brackets
- Fox 2.0 IFP Performance Shocks
- Ductile Cast-Iron Steering Knuckles
- Performance Series Upper Control Arms
- Covered By The BDS "No Fine Print" Warranty
Suggested Wheel & Tire Combinations
35"x12.50 w/20x9/22x9 and 5.5 - 6.25" back spacing33"x12.50 w/20x9/22x9 and 4.5 - 6.25" back spacing
33"x12.50 w/17x8/17x9/18x9 and 4.5" back spacing
*trimming may be required
IN THE BOX
BDS1802FS
FOX 2.0 Series Shocks
FOX 2.0 Series Shocks
KIT NOTES:
Requires frame bracket modification.
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
2.7L models use Diesel kit for proper skid plate fitment.
Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
KIT CONTENTS:
(1) BDS011316 - Chevy/GMC 1500 Rear Box Kit - 4"
(1) BDS021405 - Chevy/GMC 4" Strut Spacer Box
(1) BDS021664 - Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4" and 6" Compatible)
(1) BDS021665 - Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4" and 6" Compatible
(1) BDS021682 - Chevy/GMC 1500 6in Front Box Kit 1of2
(1) BDS021685 - Chevy/GMC 1500 6in Diesel Front Box Kit 2 of 2
(2) FOX98224758 - Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
Requires frame bracket modification.
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
2.7L models use Diesel kit for proper skid plate fitment.
Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
KIT CONTENTS:
(1) BDS011316 - Chevy/GMC 1500 Rear Box Kit - 4"
(1) BDS021405 - Chevy/GMC 4" Strut Spacer Box
(1) BDS021664 - Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4" and 6" Compatible)
(1) BDS021665 - Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4" and 6" Compatible
(1) BDS021682 - Chevy/GMC 1500 6in Front Box Kit 1of2
(1) BDS021685 - Chevy/GMC 1500 6in Diesel Front Box Kit 2 of 2
(2) FOX98224758 - Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
Reviews For BDS Suspension BDS1802FS
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For BDS Suspension BDS1802FS
MPN
BDS1802FS
SKU
STUBDS1802FS
GTIN
840416409666
ID
134386
Manufacturer Name
BDS Suspension
Shipping Weight
270.00 lb.
Shipping Length
33 in.
Shipping Width
26 in.
Shipping Height
9 in.
Fuel Type
Diesel
E-Code
1
Lift Height
4"
