USD 110
Part #: BL24-185776

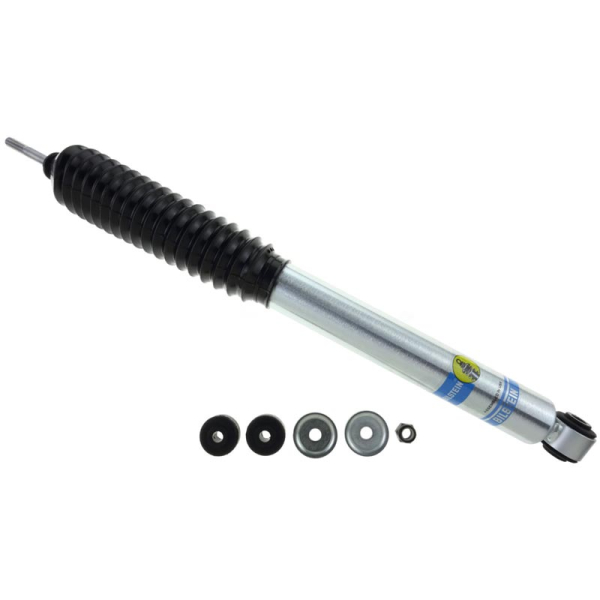

Bilstein 5100 Series Shock Absorber 24-185776
Vehicle Fitment:
1994-2013 Dodge Ram 2500 4WD | 1994-2012 Dodge Ram 3500 (Front) Lifted 0"-2.5" | 2005-2016 Ford Super Duty 4WD (Front) Lifted 4"
1994-2013 Dodge Ram 2500 4WD | 1994-2012 Dodge Ram 3500 (Front) Lifted 0"-2.5" | 2005-2016 Ford Super Duty 4WD (Front) Lifted 4"
★★★★★
Buy now, pay later using
during checkout.
during checkout. FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close Part #: {{:: (product.sku == undefined) ? product.code : product.sku }}
{{:: product.customfield_values.customfields.short_desc }}
View Details Description
The Bilstein 24-185776 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Specifications:
- Part Number: 24-185776
- Old Part Number: F4-BE5-6681-H8
- Setting: 5100 Series
- Drive Type: 4WD
- Position: Front
- Quantity Needed Per Vehicle: 2 (Sold Individually)
- Description: Front Lifted Height: (0"-2.5" Dodge) (4" Lift Super Duty)**
- Finish: Zinc plated
- Reservoir: No
- Body Design: 46mm ID smooth body (Non-coilover)
Measurements:
- Collapsed Length (IN): 14.88
- Extended Length (IN): 24.37
- Collapsed Length (MM): 378
- Extended Length (MM): 619
Applications:
1994-2013 Dodge Ram 2500 4WD - Front (Lifted 0"-2.5")
1994-2012 Dodge Ram 3500 4WD - Front (Lifted 0"-2.5")
2005-2016 Ford Super Duty F-250/350 4WD - Front (Lifted 4")
Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
Vehicle Fitment
| YEAR | MAKE | FOR ENGINE SERIES |
|---|---|---|
| 1994 | Dodge | 5.9L 12V Cummins |
| 1995 | Dodge | 5.9L 12V Cummins |
| 1996 | Dodge | 5.9L 12V Cummins |
| 1997 | Dodge | 5.9L 12V Cummins |
| 1998 | Dodge | 5.9L 12V Cummins |
| 1998.5 | Dodge | 5.9L 24V Cummins |
| 1999 | Dodge | 5.9L 24V Cummins |
| 2000 | Dodge | 5.9L 24V Cummins |
| 2001 | Dodge | 5.9L 24V Cummins |
| 2002 | Dodge | 5.9L 24V Cummins |
| 2003 | Dodge | 5.9L 24V Cummins |
| 2004 | Dodge | 5.9L 24V Cummins |
| 2004.5 | Dodge | 5.9L 24V Cummins |
| 2005 | Dodge | 5.9L 24V Cummins |
| 2006 | Dodge | 5.9L 24V Cummins |
| 2007 | Dodge | 5.9L 24V Cummins |
| 2007.5 | Dodge | 6.7L 24V Cummins |
| 2008 | Dodge | 6.7L 24V Cummins |
| 2009 | Dodge | 6.7L 24V Cummins |
| 2005 | Ford | 6.0L Powerstroke |
| 2006 | Ford | 6.0L Powerstroke |
| 2007 | Ford | 6.0L Powerstroke |
| 2008 | Ford | 6.4L Powerstroke |
| 2009 | Ford | 6.4L Powerstroke |
| 2010 | Ford | 6.4L Powerstroke |
| 2011 | Ford | 6.7L Powerstroke |
| 2012 | Ford | 6.7L Powerstroke |
| 2013 | Ford | 6.7L Powerstroke |
| 2014 | Ford | 6.7L Powerstroke |
| 2015 | Ford | 6.7L Powerstroke |
| 2016 | Ford | 6.7L Powerstroke |
| 2010 | Ram | 6.7L 24V Cummins |
| 2011 | Ram | 6.7L 24V Cummins |
| 2012 | Ram | 6.7L 24V Cummins |
| 2013 | Ram | 6.7L 24V Cummins |
| 2014 | Ram | 6.7L 24V Cummins |
| 2015 | Ram | 6.7L 24V Cummins |
| 2016 | Ram | 6.7L 24V Cummins |
| 2017 | Ram | 6.7L 24V Cummins |
| 1994 | Dodge | Gas |
| 1995 | Dodge | Gas |
| 1996 | Dodge | Gas |
| 1997 | Dodge | Gas |
| 1998 | Dodge | Gas |
| 1998.5 | Dodge | Gas |
| 1999 | Dodge | Gas |
| 2000 | Dodge | Gas |
| 2001 | Dodge | Gas |
| 2002 | Dodge | Gas |
| 2003 | Dodge | Gas |
| 2004 | Dodge | Gas |
| 2004.5 | Dodge | Gas |
| 2005 | Dodge | Gas |
| 2006 | Dodge | Gas |
| 2007 | Dodge | Gas |
| 2007.5 | Dodge | Gas |
| 2008 | Dodge | Gas |
| 2009 | Dodge | Gas |
| 2005 | Ford | Gas |
| 2006 | Ford | Gas |
| 2007 | Ford | Gas |
| 2008 | Ford | Gas |
| 2009 | Ford | Gas |
| 2010 | Ford | Gas |
| 2011 | Ford | Gas |
| 2012 | Ford | Gas |
| 2013 | Ford | Gas |
| 2014 | Ford | Gas |
| 2015 | Ford | Gas |
| 2016 | Ford | Gas |
| 2010 | Ram | Gas |
| 2011 | Ram | Gas |
| 2012 | Ram | Gas |
| 2013 | Ram | Gas |
| 2014 | Ram | Gas |
| 2015 | Ram | Gas |
| 2016 | Ram | Gas |
| 2017 | Ram | Gas |
Specifications
- MFG. Number 24-185776
- Manufacturer Name Bilstein
- Shipping Weight 5.00 lb.
- Shipping Length 27 in.
- Shipping Width 3 in.
- Shipping Height 3 in.
- Fuel Type Diesel / Gas
- Position Front
- UPC 651860638560
- Warranty Info Limited Lifetime
- Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov - Internal L142.00R63.00
Frequently Bought Together
Reviews
★★★★★
4.7/5 Stars out of 9 Reviews
0
0
1
1
7
Bob (Florida) | February 18th, 2023
These shocks are a remarkable value and at the price point I dont think they can be beat. Loaded or unloaded, they manage just about any road condition you can throw at it.
JMeeks (Oakdale) | November 25th, 2022
Great shocks at an affordable price. They came with all new hardware making the install easy!
Fernando chirinos (Chelsea Massachusetts) | September 25th, 2022
Excellent product!
Write a Review
Questions and Answers
Will this install on my 03 ram 3500 2WD?
View Staff Answer
Answer
The BILSTEIN 5100 SERIES SHOCK ABSORBER 24-185776 will ONLY fit the following applications:
1994-2013 Dodge Ram 2500 4WD & 1994-2012 Dodge Ram 3500 4WD (Front) Lifted 0"-2.5"
2005-2016 Ford Super Duty 4WD (Front) Lifted 4"
Do I have to buy 2 quantity to complete the front?
View Staff Answer
Answer
Yes, the Bilstein 5100 Series Shock Absorber 24-185776 is sold individually and requires the purchase of 2 to do both sides.
Yes, the Bilstein 5100 Series Shock Absorber 24-185776 is sold individually and requires the purchase of 2 to do both sides.
