Part #: BL24-186025

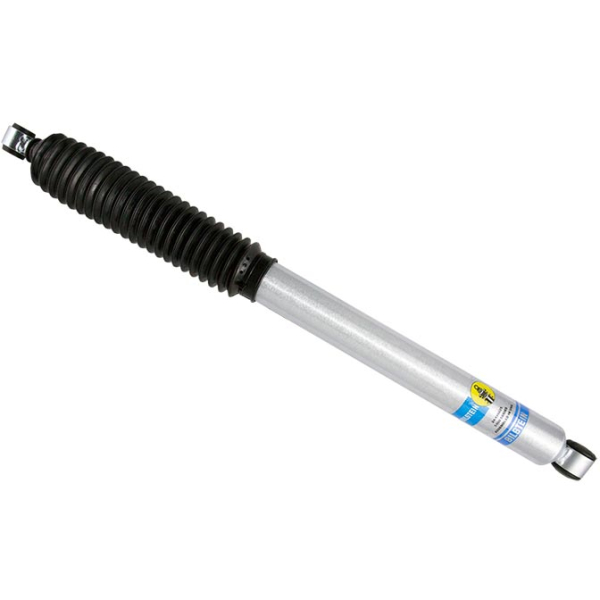

Bilstein 24-186025 B8 5100 Series Shock Absorber

Vehicle Fitment:
1999-2016 Ford F-250/350 4WD (Rear) Lifted 0" | See full application list below
Part #: BL24-186025
★★★★★ ★★★★★ 1 Reviews
$110.00
Buy now, pay later using Affirm Logo during checkout.
In-Stock
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The Bilstein 5100 Series Shock Absorbers 24-186025 are high gas pressure monotube shocks designed specifically for your 1999-2016 Ford F-250/350 4WD Pickup. These shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )

Specifications:
  • Part Number: 24-186025
  • Old Part Number: F4-BE5-C336-H0
  • Setting: 5100 Series
  • Drive Type: 4WD
  • Position: Rear
  • Descriptor: Rear Lifted Height: 0"
  • Quantity Per Vehicle: 2 (sold individually)
  • Finish: Zinc plated
  • Reservoir: No
  • Body Design: 46mm ID smooth body (Non-coilover)
Measurements:
  • Collapsed Length (IN): 18.04
  • Extended Length (IN): 29.7
  • Collapsed Length (MM): 458.3
  • Extended Length (MM): 754.5
Applications:
1999-2016 Ford Super Duty F-250/350

Note: Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application.  An eye to eye shock is measured from the center of one eyelet to other.Shock Absorbers sold individually.

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
1999 Ford F-250 Super Duty
2000 Ford F-250 Super Duty
2001 Ford F-250 Super Duty
2002 Ford F-250 Super Duty
2003 Ford F-250 Super Duty
2004 Ford F-250 Super Duty
2005 Ford F-250 Super Duty
2006 Ford F-250 Super Duty
2007 Ford F-250 Super Duty
2008 Ford F-250 Super Duty
2009 Ford F-250 Super Duty
2010 Ford F-250 Super Duty
2011 Ford F-250 Super Duty
2012 Ford F-250 Super Duty
2013 Ford F-250 Super Duty
2014 Ford F-250 Super Duty
2015 Ford F-250 Super Duty
2016 Ford F-250 Super Duty
1999 Ford F-350 Super Duty
2000 Ford F-350 Super Duty
2001 Ford F-350 Super Duty
2002 Ford F-350 Super Duty
2003 Ford F-350 Super Duty
2004 Ford F-350 Super Duty
2005 Ford F-350 Super Duty
2006 Ford F-350 Super Duty
2007 Ford F-350 Super Duty
2008 Ford F-350 Super Duty
2009 Ford F-350 Super Duty
2010 Ford F-350 Super Duty
2011 Ford F-350 Super Duty
2012 Ford F-350 Super Duty
2013 Ford F-350 Super Duty
2014 Ford F-350 Super Duty
2015 Ford F-350 Super Duty
2016 Ford F-350 Super Duty

Specifications

  • MFG. Number 24-186025
  • Manufacturer Name Bilstein
  • Shipping Weight 5.00 lb.
  • Shipping Length 27 in.
  • Shipping Width 3 in.
  • Shipping Height 3 in.
  • Fuel Type Diesel / Gas
  • Position Rear
  • UPC 651860493206
  • Warranty Info Limited Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L61R38

Reviews

★★★★★ ★★★★★
5.0/5 Stars out of 1 Reviews
1
0
2
0
3
0
4
0
5
1
Verified Buyer
2006 F250 Bilstein Shocks
5
Bought these shocks after the one I had were pretty shot along with my ball bearings. I had to get the front and rear shocks, so I bought Bilsteins for both. Read great reviews on the Bilsteins and the main complaints were a rougher ride. Is this truck, 4 Door 8 foot bed with a topper, the shocks have been outstanding. Not a rough ride at all. Highway, gravel, dirt or mountains. The only time the shocks have had any roughness is going over train tracks. I would def buy these again.

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

If i was to lower the rear of my truck 2 inches would it hurt these shocks or hinder there performance?
View Staff Answer
Answer
You would have to make sure that, at full compression of your suspension, the shock doesn't bottom-out before reaching the suspension bumpstop. This would require measurements from the top shock mount to the bottom shock mount when the suspension is fully compressed and on the bumpstop. If your measurement is less than the collapsed length of the shock, than you can either extend your bumpstop to an acceptable length so the suspension has less up travel, or you can purchase a shock with the correct measurements for your modified suspension. Bottoming out a shock absorber WILL damage it and may cause other suspension damage as well.
fit 05 f350 sew 4x4 with factory 4" blocks and overloads?
View Staff Answer
Answer

The BILSTEIN 5100 SERIES SHOCK ABSORBER 24-186025 is a rear shock designed for the 1999-2016 Ford F-250/350 4WD with 0” of lift.
