Part #: BL24-196284

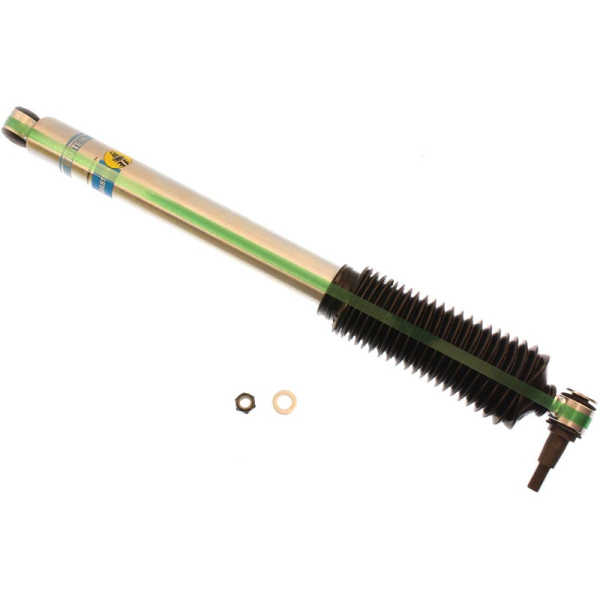

Bilstein 24-196284 B8 5100 Series Steering Damper
★★★★★
Buy now, pay later using
during checkout.
during checkout.
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations
Compatible Products
Close
Part #: {{:: (product.sku == undefined) ? product.code : product.sku }}
{{:: product.customfield_values.customfields.short_desc }}
View Details
Description
The Bilstein 5100 Series Steering Damper 24-196284 are designed specifically to help you maintain complete command of your 2008-2016 Ford F-250/350 Super Duty at all times. The 5100 Series Steering Damper equipped vehicle offers a much more controlled feeling, allowing you to get the true feeling of your vehicle and what it is capable of. Utilizing our proven design, the steering damper is able to dampen minute movements in the steering and reduce steering vibrations that naturally occur especially in older vehicles. These dampers are the least expensive and most effective upgrade to extend the service life of any vehicle out on the road today.
Specifications:
- Part Number: 24-196284
- Setting: 5100 Series (Steering Damper)
- Drive Type: 4WD
- Position: Front
- Quantity Per Vehicle: 1
- Finish: Zinc plated
- Reservoir: No
- Body Design: 46mm ID smooth body (Non-coilover)
Measurements:
- Collapsed Length (IN): 19.13
- Extended Length (IN): 27.44
- Collapsed Length (MM): 486.0
- Extended Length (MM): 697.0
Applications:
2008-2016 Ford Super Duty F-250/350
Vehicle Fitment
| YEAR | MAKE | MODEL | FOR ENGINE SERIES |
|---|---|---|---|
| 2008 | Ford | F-250 Super Duty | |
| 2009 | Ford | F-250 Super Duty | |
| 2010 | Ford | F-250 Super Duty | |
| 2011 | Ford | F-250 Super Duty | |
| 2012 | Ford | F-250 Super Duty | |
| 2013 | Ford | F-250 Super Duty | |
| 2014 | Ford | F-250 Super Duty | |
| 2015 | Ford | F-250 Super Duty | |
| 2016 | Ford | F-250 Super Duty | |
| 2008 | Ford | F-350 Super Duty | |
| 2009 | Ford | F-350 Super Duty | |
| 2010 | Ford | F-350 Super Duty | |
| 2011 | Ford | F-350 Super Duty | |
| 2012 | Ford | F-350 Super Duty | |
| 2013 | Ford | F-350 Super Duty | |
| 2014 | Ford | F-350 Super Duty | |
| 2015 | Ford | F-350 Super Duty | |
| 2016 | Ford | F-350 Super Duty |
Specifications
- MPN 24-196284
- SKU BL24-196284
- GTIN 651860680569
- ID 13681
- Manufacturer Name Bilstein
- Shipping Weight 5.00 lb.
- Shipping Length 27 in.
- Shipping Width 5 in.
- Shipping Height 5 in.
- Fuel Type Diesel / Gas
- Warranty Info Limited Lifetime
-
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
- Internal L30R15
Frequently Bought Together
Reviews
★★★★★
5.0/5 Stars out of 6 Reviews
0
0
0
0
6
Max (MA) | November 11th, 2023
Works as it should and looks good. That’s all you can ask.
Flatbed Ford (Kansas) | October 26th, 2023
Installed this on a 2011 F-350 dually. Before it would wander going down the road, after installing this new up graded steering stabilizer the truck drives like new. Would recommend for a cost effective option to up grade from wore out factory parts.
Alan (Midland, TX) | September 19th, 2023
The latter part of July I experienced my first death wobble in my 2015 F250 with 104000 miles on it. I took it to a local shop where they replaced the stabilizer bar, ball joint assembly, tie rod end, and spindle rod ends. I could definitely tell an improvement in the steering. But about 2000 miles later I had another death wobble. Took it back to the shop but they couldn't look at it for two weeks and I needed my truck within two weeks. They suggested they could change the steering damper. I took a look at the steering damper and saw it was easy to replace. After some research I decided to go with a Bilstein 5100 Steering Damper. I picked up a Tie Rod and Pitman Arm Puller from the local Chinese tool store to remove the tapered linkage bolt. That was money well spent. Then the question was how much torque to use. Online values are all over the place. I finally went with 59 ft-lbs on the frame bolt and 66 ft-lbs on the link nut. The Bilstein 5100 made another big improvement in steering. Time will tell if my death wobble is fixed but I drove on some really rough roads this past weekend with no problem.
Write a Review
Questions and Answers
I need to know if this steering stabilizer comes with the brackets I need to install on my 2014 Ford? My 2014 f 350 does not have a steering stabilizer currently. Only the solid bar that comes on the vehicle stock. If I purchase this stabilizer will it have all the parts I need to install onto my truck or do I need to buy something else with it?
View Staff Answer
Answer
This Bilstein 5100 Series Steering Damper 24-196284 is a direct replacement of the factory equipped Steering Damper and will not include brackets for trucks that are not factory equipped.
will it fit a 2008 F-450 4WD?
View Staff Answer
Answer
Application information on XDP’s website is provided to XDP by the manufacturers directly. Any fitment questions other than what’s listed under the products application info must be directed to one of our Diesel Experts. Experts are available via E-mail (), Phone (1-888-343-7354) or LiveChat (Found on the bottom right hand corer of our website). This allows XDP to offer you a more personalized response to your question as well as an open channel for further questions and conversation.
