Carli Suspension Extended Control Arms

The Carli Suspension Extended Control Arm Kit CS-CA-MS16-94 is engineered to correct axle geometry, improve ride quality, and provide maximum tire clearance for Ram 2500/3500 trucks with 2.5"-3" of front lift. Lifting a straight-axle truck shifts the front axle rearward and off-center, affecting suspension performance and tire fitment. Carli's extended control arms reposition the axle forward, optimizing travel and alignment while minimizing deflection. Constructed from 0.120" box steel with in-house machined joint cups, these arms are designed for strength and durability. Their unique offset design places the link further from the tire, ensuring superior clearance for larger tires.

Unlike traditional control arms that rely on hat bushings, Carli's design incorporates proprietary spherical joints for unmatched articulation and longevity. Featuring a 17-4 stainless steel ball center, custom Energy Suspension bushings with integrated grease channels, and a serviceable zerk fitting, these joints allow greater lateral and vertical misalignment, preventing binding and premature wear. The result is a stronger, more responsive suspension setup capable of handling extreme off-road conditions while maintaining excellent road manners. Whether you're lifting for performance or aesthetics, the Carli Extended Control Arm Kit delivers the precision engineering needed for a smooth, controlled ride. These control arms are finished off with a Satin Black powder coat to ensure long-term protection from corrosion.

Features:

• Box 0.120" Wall Mild Steel Construction
• 35" Tire Fitment (9" Wide Wheel, 5.75" BS)

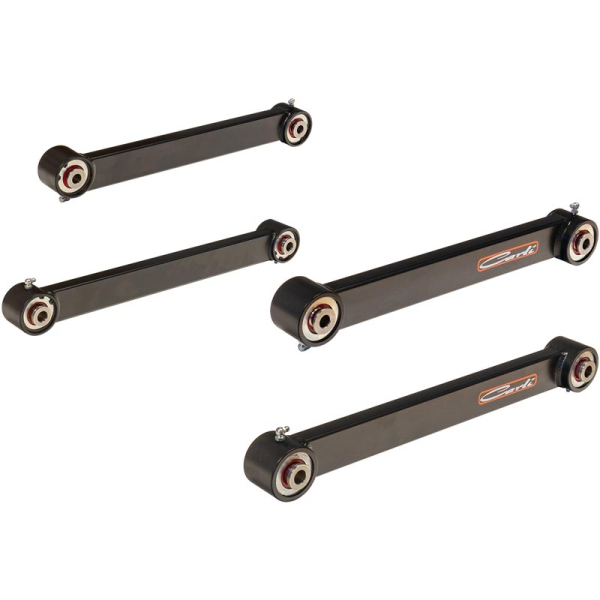

• Includes 4 Arms Pictured, 2 Upper, 2 Lower
• Re-Centers Front Axle On 3" Suspension Systems
• Arm Centers Welded Off-Center For Tire Clearance
• Fits 14mm Upper/16mm Lower Hardware - Factory Bolt Shank Diameter

Note: MUST measure control arm bolts on truck to ensure correction selection
