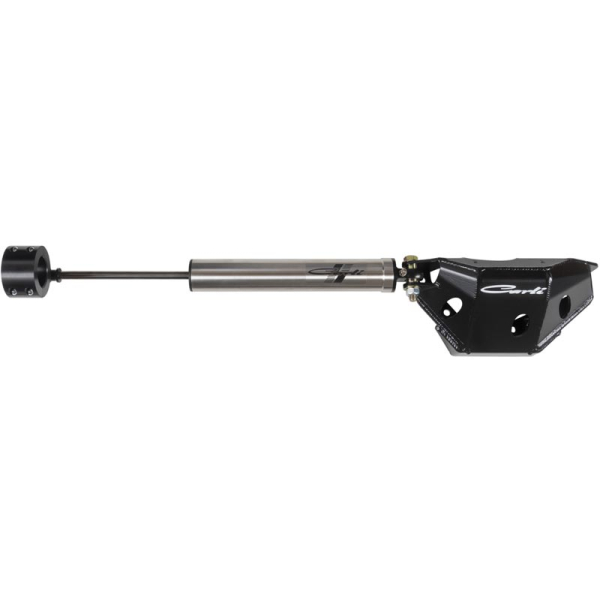

Carli Suspension Low Mount Steering Stabilizer Kit - With Differential Guard

The Carli Suspension Low Mount Steering Stabilizer Kit With Differential Guard CS-FLMSS-05 is designed to address the growing need for steering stabilization in Ford F-250/350 Super Duty 4WD trucks. With factory caster specs fluctuating over the years and the introduction of a new-style track bar with a built-in ball joint prone to premature failure, death wobble has become a rising concern. Carli Suspension has long offered a high-mount stabilizer to reduce steering feedback, but the addition of a low-mount stabilizer enhances control, particularly for trucks running larger aftermarket wheels and tires. This setup minimizes road-induced vibrations, prevents steering instability, and ensures a smoother, more controlled driving experience.

The low-mount stabilizer is strategically placed on the tie-rod, complementing the high-mount stabilizer on the drag link. This dual-stabilizer approach optimizes steering performance by dampening movement at two critical points, reducing stress on individual components. The opposing stabilizers balance out forces, preventing excessive steering wheel feedback and allowing for precise adjustability to counteract radial pull. Additionally, for those considering thru-shaft stabilizers, the dual setup eliminates fluid displacement issues, ensuring consistent, predictable steering response without the drawbacks of over-tightened steering.

Built for durability and performance, the Low Mount Steering Stabilizer features a stainless steel body, nitride shafts, and precision bearings for longevity and reliability. It is securely mounted behind the tie-rod for protection, attaching to a reinforced differential guard constructed from 3/16" boxed steel. The kit is compatible with Carli's 2.5"-5.5" lift systems, offering flexible mounting options for proper clearance and travel stroke. With premium materials and precision engineering, this stabilizer kit is the ultimate solution for drivers seeking improved handling, stability, and longevity in their Super Duty suspension system.

Front Differential Guard
A Front Differential Guard is one of those things you should purchase before you find out you needed it. The OEM front differential cover is made from a soft steel and the lip is vulnerable to even slight impacts on rocks, installing the Carli Differential Guard will give your ring and pinion a solid steel shield should a direct-impact be encountered. Any bump or nudge to your factory differential cover could push the cover into the gears or damage the seal causing a catastrophic lubricant loss.

This Differential Skid uses the lower 5 factory holes to secure with the longer hardware provided with the product. The cover is constructed from a thick 3/16″ steel with a boxed structure for strength. A double-shear mount is located on the passenger side of the cover for low-mount steering stabilizer.
