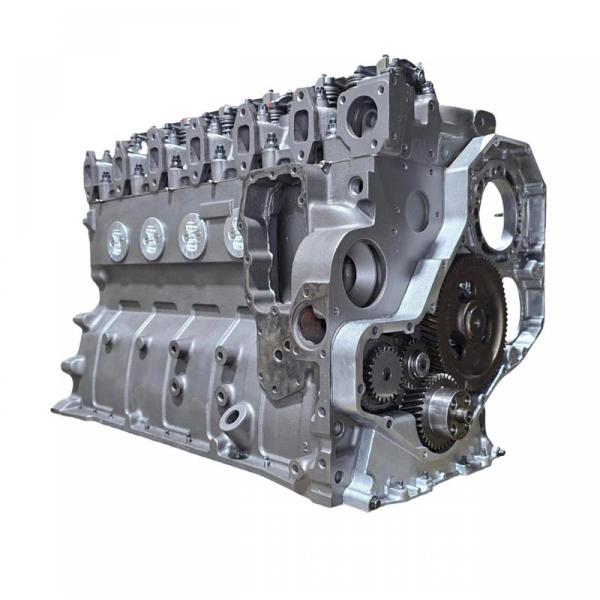

Choate Reman 5.9 Long Block Crate Engine - Model C

Replace the tired diesel engine in your Dodge D/W truck with a Choate Reman 5.9 Long Block Crate Engine - Model C. While the Dodge diesel engines have been known for their reliability over the years, they also have some common shortcomings. The Model C addresses these issues effectively, ensuring improved performance and reduced downtime for customers. With enhancements like Choate Billet freeze plugs and a new oil pump, this engine is designed for long-lasting reliability.

The full CNC blueprint machining process includes precision boring, decking, honing, and line honing to meet exact specifications. The cylinder bores are bored to a true 90 degrees from the crankshaft centerline and diamond honed to within .0002 inches for precise piston-to-cylinder bore clearances. The main housing is also honed to ensure perfect alignment of the crankshaft within the engine block. Each piston diameter is measured to the nearest .0001 inches to match the cylinder bores precisely.

The Model C is equipped with new pistons, piston rings, pin retainers, and OE tappets. The crankshaft is polished and ground to a concentricity of .0005 inches or less, ensuring smooth operation. New rod bearings, main bearings, and cam bearings are included for enhanced reliability. Furthermore, as the standard freeze plugs in the block can possibly blow out, every Choate engine comes equipped with blow-out-proof billet freeze plugs that are securely bolted to the block. In addition, the cylinder head receives new upgraded oversize valve seats and blow proof threaded plugs.

Features:

• Polished Crankshaft And Camshaft

• Main Bore Honed For Perfect Alignment Of The Crankshaft In The Engine Block
• Cylinders Bored At A 90-Degree Angle Over Crankshaft Centerline For Accuracy
• Square Deck Block Design For Consistent Compression Ratios Across Cylinders
• Full CNC Blueprint Machining For Bore, Deck, Hone, And Line Honing Processes
• Pistons Measured To The Nearest .0001 Inch For An Exact Fit And Optimized Performance
• Precision Honing To .0002 Inch Accuracy With Surface Finish Checked Using A Profilometer
• Diamond Honed Cylinder Bores To Within .0002 Inch For Precise Piston-To-Cylinder Bore Clearances
• Block Surface Finished To 30 Ra Or Lower For Proper Sealing With Multi-Layer Steel (MLS) Head Gasket

• New Pistons, Piston Rings, & Pin Retainers
• New Rod, Main, & Cam Bearings
• Polished Crankshaft & Camshaft
• New Valve Guides & Seals
• New OE Tappets
• New Oil Pump
• Billet Freeze Plugs
• Cylinder Head
• New Head Bolts
• New Head Gaskets
• Oversized New Upgraded Valve Seats
• Blow Proof Threaded Soft Plugs in Cylinder Head

New Engine Checklist (Replacement Items Required For Engine Warranty - Sold Separately):
Oil Cooler
Water Pump
Filters (Oil, Air, Fuel)

Choate Long Block Note:
Long Block engines typically consist of a short block with cylinder head and are ready for the final buildup. This long block does not include bolt-on components such as the valve cover, intake, exhaust, fuel system, or turbo components. These items will need to be changed over from your existing engine or purchased new, and installed onto your new Choate Long Block before installation into your truck.

Valve seats can fallout and contact the piston and cause catastrophic failure. Choate machines oversize valve seats within creased press fit area to remedy this issue.
Stamped gallery plugs in the head can blow out causing a mixture of oil and coolant, destroying the bearings. Choate threads the head and inserts threaded plugs to make sure this does not happen.
In addition, Freeze plugs in the block blow out leaving you at best stranded on the side of the road, at worst, with a severely overheated engine in need of remanufacturing. Every new Choate engine comes standard with Billet freeze plugs that use a tie bar bolting them into the side of the block, so they don’t blowout.

Manufacturer Warranty*:
1 Year / 12,000 Mile
View Warranty Form

Note:
Engine pictures are for display and reference purposes only.
Please check the product description for information on what components are included with this engine.
