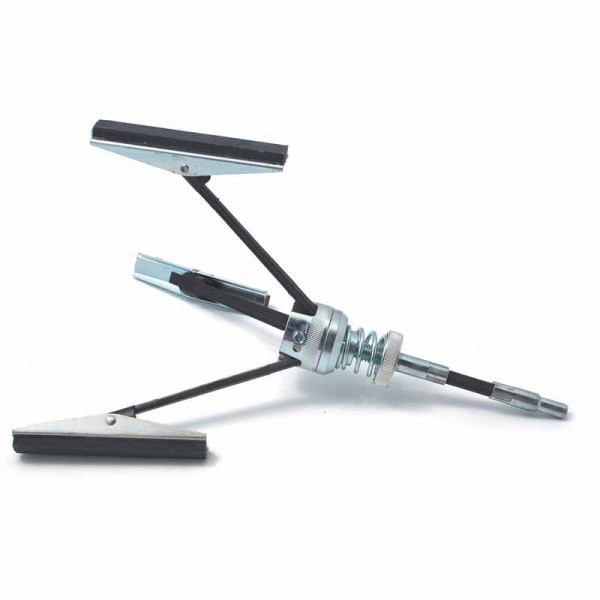

CTA Tools 2310 4" Engine Cylinder Hone
PART#
2310 | SKU CTA2310
Vehicle Fitment For:
Universal - Bore Diameters from 2" to 7"
NOTES: Bore may be honed dry or with light oil, but oil is generally recommended. Aerosol-type multi-purpose oil works well.
$34.42
Ground Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Get the CTA Tools 2310 4" Engine Cylinder Hone from XDP so you're prepared for the next project on your vehicle. CTA Tools has a large range of specialty tools to make routine maintenance and vehicle repairs simple. Having the right tools is critical for saving time in service and repairs. CTA builds each item out of quality materials for dependability and long service life. Make sure you have the tools needed for the next project with CTA Tools.
Features:
- Made In USA
- Medium Grit (220) Stones
- Flex Shaft Will Fit Variable Speed Drill
- Adjustable Diameter And Tension Settings
- Eliminate Minor Cylinder Wall Imperfections
- Resurface Cylinder Walls So New Rings Will Seat
Specifications:
Stone Length: 4" / 102mm
Bore Diameter Range: 2" to 7" (51 - 178mm)
Instructions:
1.Insert hone shaft into drill chuck and tighten chuck.
2.Compress stones so they fit into cylinder, then release.
3.Run drill at slow speed while moving hone in and out of cylinder rapidly. The combustion of drill rpm and stroke speed should be such that honing pattern is a 45-degree angle to bore.
Caution: Do not push hone so deeply into cylinder that it hits the crankshaft or main bearing webs. Also, do not draw it out or bore past the stones' pivot point or stones will be damaged.
4.Honing is completed when bore finish is even.
5.Clean bore thoroughly. Use hot water and detergent or motor oil on clean rags. Do not use kerosene or other thin solvents as they will cause the abrasive particles to penetrate the iron which will accelerate ring wear.
Note:
Bore may be honed dry or with light oil, but oil is generally recommended. Aerosol-type multi-purpose oil works well.
Reviews For CTA Tools 2310
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Will this work on a 2006 5.9 Cummins cylinder wall?
Yes, the CTA Tools 2310 4" Engine Cylinder Hone has a range of 2" to 7" so it will work on your application.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For CTA Tools 2310
MPN
2310
SKU
CTA2310
GTIN
053001023103
ID
122190
Manufacturer Name
CTA Tools
Shipping Weight
2.00 lb.
Shipping Length
16 in.
Shipping Width
4 in.
Shipping Height
3 in.
Fuel Type
Diesel / Gas
