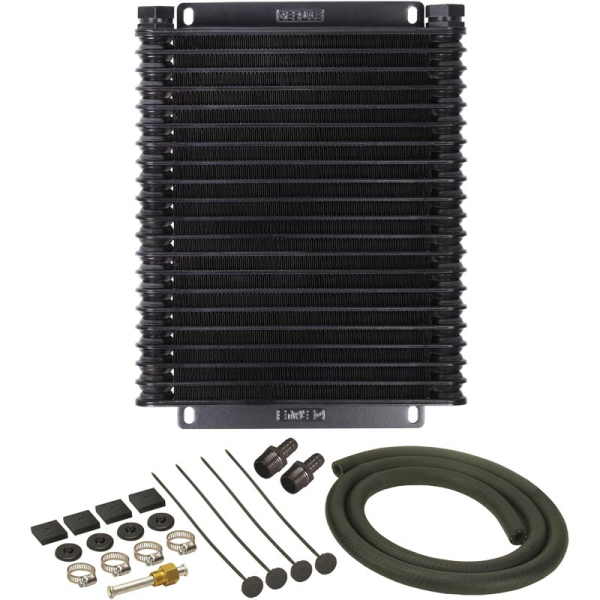

Derale 13615 21-Row Series 9000 Plate & Fin Transmission Cooler Kit

The Derale 13615 21-Row Series 9000 Transmission Cooler Kit from XDP helps improve transmission performance and prevents heat related transmission failures. Very popular with original equipment manufacturers for use on their towing applications, this plate and fin cooler is no exception, featuring a strong furnace-brazed construction, 1-1/4" wide plates, and embossed turbulators to maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures and improves shifting performance. Built with 1/2" FTP female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Features:

• BTU: 25000
• GVW: 26500
• 17 Row Cooler Design
• Fluid Capacity: 14 Oz.
• Extends Life Of Transmission
• Improves Transmission Performance
• Prevents Heat Related Transmission Failures
• 1/2" NPT X 3/8" Hose Barb Adapters Included
• Sturdy Furnace-Brazed Aluminum Construction
• 1-1/4" Turbulators Maximize Cooling & Minimize Pressure Drop
• All Derale Coolers Are Rated At 250psi Working Pressure And 300psi Burst Strength

Specifications:
Cooler Style: Plate & Fin
Construction: Aluminum
GVW: 26500
BTU: 25000
Inlet Size: 1/2" FTP Female
Fitting Size: 3/8" Barb
Width: 9-3/4"
Height: 12-13/16"
Depth: 1-1/4"
Inlet Dim: 8-1/2"
Mounting: 6-11/16" X 12"
Hose Size: 3/8"
Hose Length: 4'
