Derale 15900 16-Pass Electra-Cool Remote Transmission Cooler (-8AN)

The Derale 15900 16-Pass Electra-Cool Remote Transmission Cooler (-8AN) from XDP is perfect for heavy duty towing and hauling. With its own air supply, the popular Electra-Cool remote transmission cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. This setup includes an efficient 16-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets. Comes with a complete installation kit to install easily on all vehicles with 1/2" transmission cooler lines. Also included is a 180 F Degree in-line thermostat for activating the electric fan. This is a durable, trouble-free way to add years to the life of your transmission.

Features:

• -8AN Inlet Size
• 16 Passage Tube & Fin Cooler
• Mounts Anywhere Space Permits
• Clear Anodized Aluminum Shroud
• Electric Fan Supplies Optimum Airflow
• 650 CFM Reversible Tornado Electric Fan
• Dramatically Extends Engine And Transmission Life
• Derale Coolers Are Rated At 250psi Working Pressure And 300psi Burst Strength

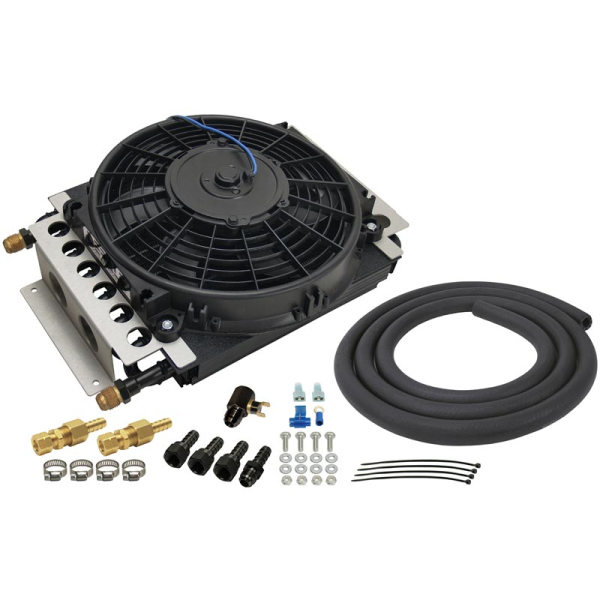

• Transmission Cooler Kit Includes Fan Mounted Cooler, Two -8AN To 1/2" Barbed Hose Fittings, 180�F In-Line Thermostat, 10 Ft. Of OEM Spec Hose, 1/2" Compression Fittings, & Hardware

Specifications:
Cooler Style: 16 Pass Tube & Fin
Inlet Size: -8AN
Fan Size: 10"
CFM: 650
Amp Draw: 5.3
Width: 15-3/4"
Height: 11-1/2"
Depth: 5"
Inlet Dim: 8-3/4"
Mounting: 14-3/4" X 5-1/4"
Cooler Fluid Capacity: 19.6 Oz
Hose Size: 1/2"
Hose Length: 10'
Airflow: Puller (Reversible)
