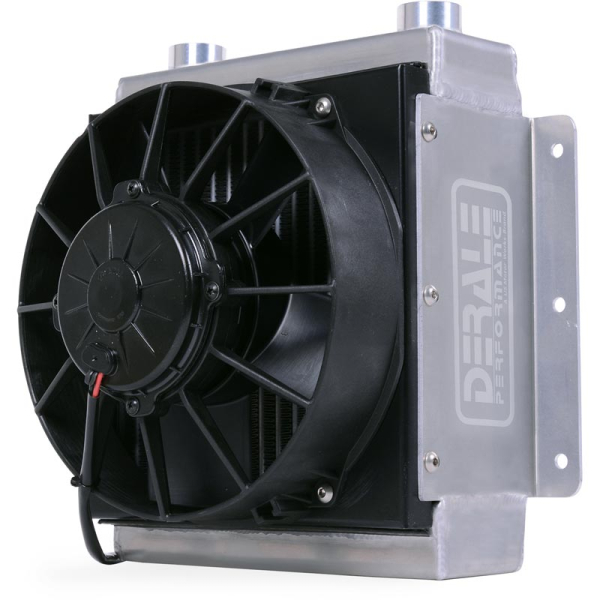

Derale 65861 18-Row Hi-Flow Racing Fluid Cooler With Single Fan

The Derale 65861 18-Row Hi-Flow Racing Fluid Cooler With Single Fan from XDP features an incredibly efficient tube design. This 18 Row Hi-Flow Racing Cooler is precision TIG welded and supports up to 350 PSI with minimal pressure drop. The mounted 8" Electric fan is IP68 certified (Water/Dust Proof) and designed to do its best under the most strenuous conditions.

Features:

• 20 GPM Flow Rate
• Precision TIG Welding
• Designed For Puller Applications
• Aircraft Aluminum Grade Cooler Design
• 8" Electric Fan Supplies Optimum Airflow
• Dramatically Extends Engine Or Transmission Life
• Supports Up To 350 P.S.I. With Minimal Pressure Drop
• Extruded Tube Design With Turbulators For Maximum Heat Dissipation

Specifications:
Inlet(s) Size: 7/8"-14 UNF o-ring
Fan size: 8"
CFM: 755
Fluid Capacity: 47 oz.
Inlet Dim.: 7"
Width: 11 7/8"
Height: 12-3/8"
Depth: 8-1/2"
Mounting: 6-3/4" x 7-3/16"
125,000 BTU's Per Hour
