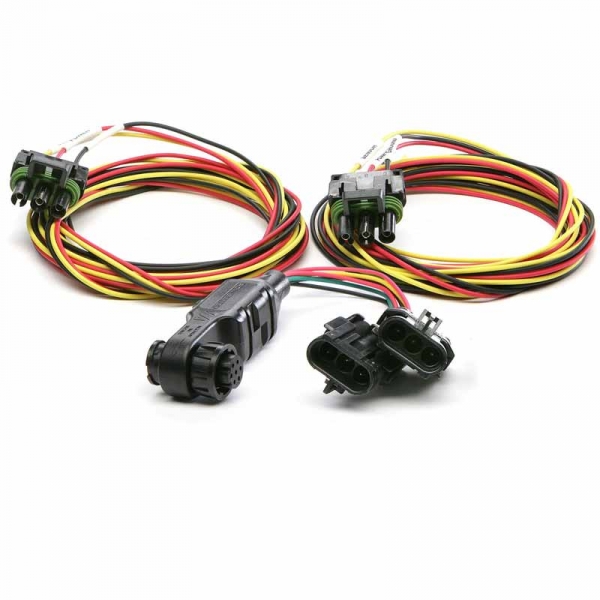

Edge Products 98605 EAS Universal Sensor Input (5 Volt)

The Edge Products 98605 EAS Universal Sensor Input (5 Volt) was created with future expandability in mind. The architecture of the EAS allows users to connect multiple accessories daisy-chain style to the Evolution CS2, CTS2 or CTS3. This means Edge can create optional accessories that can be added by the owner at any time. A second exhaust gas temperature (EGT) probe is one example of an optional accessory that will be offered by Edge.

Add up to 16 additional sensors with the EAS universal senor input. Then setup, configure and customize those sensors through Edges My Style software package. Then Edge My Style software will recognize and Universal Sensor Input that has been connected to your CS2, CTS2 or CTS3 and allow the user to change PID name, gauge name description and units. The user can choose from a number of preconfigured sensors or enter in a custom look-up table to translate the input voltage to the measured parameter value and units,

The EGT probe is a sensor that allows users to monitor critical Exhaust Gas Temperatures to ensure added power is not creating excessive heat which, in turn can can cause engine damage. With EAS system a user can connect multiple EGT sensors to monitor temperatures in different locations and compare readings to be even more precise.

A turbo timer is a device designed to keep an engine running for a pre-specified period of time or a until a specific temperature is reached in order to automatically execute the cool-down period required to prevent premature turbo wear and failure. This also allows the lubricating oil from the engine to circulate properly so the turbine wont burn the lubricating oil that would otherwise be trapped within the charger with the turbine rotating at a high speed.

The EAS Universal Senor Input provides the ability to read any 0-5 volt signal and translate that signal a meaningful value for display on the Edge CS2, CTS2 or CTS3. This means you can add custom temperature, pressure, Air/fuel and even travel/position gauges to your Edge CS2, CTS2 or CTS3! Using the Edge Accessory System provides the following benefits:

Using My Style software, sensors can be easily configured and renamed.

Up to 8 Universal Sensor Input will support up to 2 sensors for the vehicle. Each Universal Sensor Input will support up to 2 sensors for a total of 16 additional sensors that can be added to your CS2, CTS or CTS3 device.

Note: Sensors from the manufactures other than Edge can also be attached to a CS2, CTS2 or CTS3 device through the EAS universal sensor input.

Eliminates the necessity of routing multiple wires to the CS2, CTS2 or CTS3 monitor.

Edges EAS Pressure Sensor is a 0 - 100 PSIg 1/8 NPT sensor that plugs directly into the Universal Sensor Input system (p/n 98605). Edges Pressure Sensor comes equipped with the proper wires and connectors to plug right into the Universal Sensor Input system saving time and money on cutting, splicing, and crimping wire terminals to connect the sensor. Use Edges Pressure Sensor to monitor data such as Boost PSI, Fuel Rail Pressure, Air Bag Pressure, Lift Pump Pressure, Pre and Post Intercooler Pressure and many more.

Tolerance: +-1.5% Full Span over temperature range of -20C to 85C and +-2.4% Full Span over temperature range of -40C to 135C.

The EAS Temperature Sensor is a 40F to 300F 1/8 NPT supplied with the connectors to plug directly into Edges Universal Senor Input System. Using Edges Temperature Sensor you can monitor Transmission Temp, Differential/Axel Oil Temp, Oil Temp, Engine Coolant Temp, Air intake temp, Pre and Post Intercooler Temp and many more. Use this in conjunction with the Universal Sensor Input and the CS2, CTS2 or CTS3 monitor to allow you to view critical temperatures with the most state-of- the- art product on the market today.

If your vehicle is not equipped with an outside temperature sensor then this is a must have! The EAS Ambient Temperature Sensor is a 40F to 230 F Waterproof 0.2 diameter sensor ready to plug into Edges Universal Sensor Input system. Now you'll never wonder what outside temperature is again.* - EAS Starter Kit Cable required ** - EAS Starter Kit Cable and EAS Universal Sensor Input required. The EAS Starter Kit Cable is required to connect a EAS system to any CS2, CTS2 or CTS3 device. Only one EAS starter kit Cable required per CS2, CTS2 or CTS3 device. The EAS Universal (5 volt) Sensor Input is also required to add any sensor. One Universal Sensor Input can connect up to 2 different sensors.

Note: Sensors from the manufactures other than Edge can also be attached to a CS2, CTS2 or CTS3 device through the EAS universal sensor input.
