Ford Motorcraft KC3Z-6079-DA (EVG-2) 20mm Head Gasket & Upper Seal Kit
PART#
KC3Z-6079-DA | SKU FOKC3Z-6079-DA
★★★★★
Vehicle Fitment For:
2006.5-2007 Ford 6.0L Powerstroke
See full application list below
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description

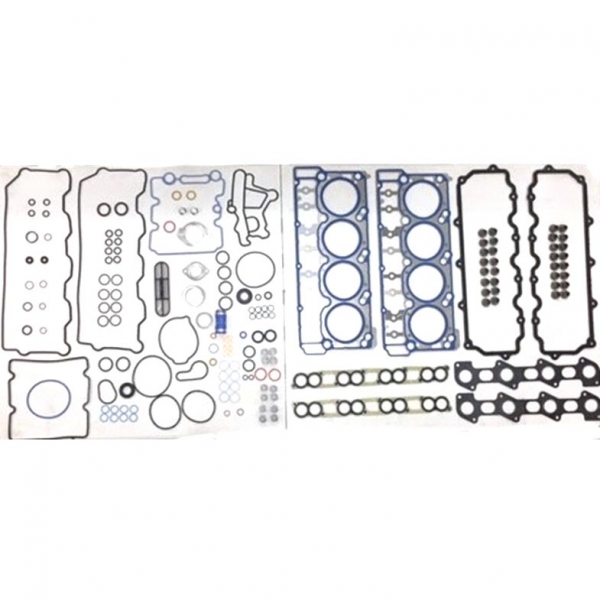

The Ford Motorcraft KC3Z-6079-DA (EVG-2) 20mm Head Gasket & Upper Seal Kit includes everything required to assemble the top end of your 2006-2010 Ford 6.0L Powerstroke engine. This reseal kit features the gaskets, dowels, and O-rings needed to install the heads, valve covers, exhaust and intake manifolds onto the block.
Features:
- Genuine Ford Parts
- Direct-Fit Replacement
- Includes Gaskets, O-rings & Dowels
Notes:
Please confirm dowel size when using remanufactured heads.
Most Ford remanufactured Heads are 20mm regardless of mfg date.
20mm Alignment Dowels were manufactured January 12, 2006 and newer.
18mm Alignment Dowels were manufactured September 30, 2003 - Jan 11, 2006 (verify that the ICP sensor is located on the passenger side valve cover above the glow plug control module).
Applications:
2006-2007 Ford 6.0L Powerstroke F-250/350/450/550
2006-2007 Ford 6.0L Powerstroke F-650/750
2006-2010 Ford 6.0L Powerstroke 6.0L E-Series
