Part #: FOX980-24-967

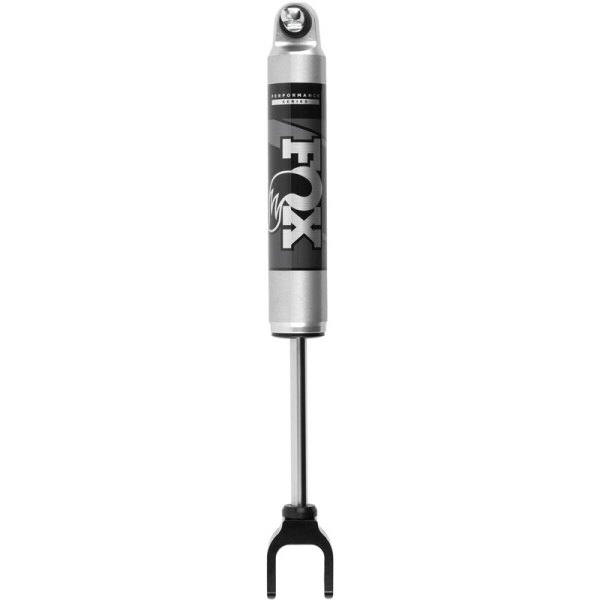

Fox 980-24-967 2.0 Performance Series IFP Shock Absorber
2011-2019 GM 2500HD/3500HD 2WD/4WD (Front) Lifted 7"-9"*
Buy now, pay later using
during checkout.
during checkout.
Our Recommendations
Compatible Products
Close
Part #: {{:: (product.sku == undefined) ? product.code : product.sku }}
{{:: product.customfield_values.customfields.short_desc }}
View Details
Description
The Fox 980-24-967 2.0 Performance Series IFP Shock Absorber contains the latest in shock technology for your 2011-2019 GM 2500HD/3500HD Pickup to transform the performance of your Truck. They use our race-proven damping control to provide a comfortable on-road ride and predictable offroad handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series IFP shock a predicable ride quality capable of handling the roughest road conditions.
Features:
- Body: 2.0" Metal impacted 6061-T6 Aluminum will resist rust over time
- Body Plating: Clear anodized for a durable finish
- Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from high-pressure nitrogen
- Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft: 5/8" hard chrome plated heat-treated alloy steel
- Piston: Race-developed high-flow piston design
- Valving: Application specific valving to maximize performance
- Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
- Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
- Bushings: Quiet nitrile rubber allows for increased suspension articulation
- Mounting: Direct replacement for stock and aftermarket lifts kits
Specifications:
- Ext. Length: 25.609
- Col. Length: 16.669
- Travel: 8.940
- Top Mount: Bar Pin
- Bottom Mount: Clevis
Applications:
2011-2019 GM 2500HD/3500HD 2WD/4WD Lifted 7"-9"* (Front)
Notes:
This shock features a lower clevis mount. Please check and confirm that your application uses this style mount before ordering.
7"-9" Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application.
Shock Absorbers sold individually.
Vehicle Applications
| YEAR | MAKE | ENGINE |
|---|---|---|
| 2011 | Chevy | 6.6L LML Duramax |
| 2012 | Chevy | 6.6L LML Duramax |
| 2013 | Chevy | 6.6L LML Duramax |
| 2014 | Chevy | 6.6L LML Duramax |
| 2015 | Chevy | 6.6L LML Duramax |
| 2016 | Chevy | 6.6L LML Duramax |
| 2017 | Chevy | 6.6L L5P Duramax |
| 2018 | Chevy | 6.6L L5P Duramax |
| 2019 | Chevy | 6.6L L5P Duramax |
| 2011 | GMC | 6.6L LML Duramax |
| 2012 | GMC | 6.6L LML Duramax |
| 2013 | GMC | 6.6L LML Duramax |
| 2014 | GMC | 6.6L LML Duramax |
| 2015 | GMC | 6.6L LML Duramax |
| 2016 | GMC | 6.6L LML Duramax |
| 2017 | GMC | 6.6L L5P Duramax |
| 2018 | GMC | 6.6L L5P Duramax |
| 2019 | GMC | 6.6L L5P Duramax |
| 2011 | Chevy | Gas |
| 2012 | Chevy | Gas |
| 2013 | Chevy | Gas |
| 2014 | Chevy | Gas |
| 2015 | Chevy | Gas |
| 2016 | Chevy | Gas |
| 2017 | Chevy | Gas |
| 2018 | Chevy | Gas |
| 2019 | Chevy | Gas |
| 2011 | GMC | Gas |
| 2012 | GMC | Gas |
| 2013 | GMC | Gas |
| 2014 | GMC | Gas |
| 2015 | GMC | Gas |
| 2016 | GMC | Gas |
| 2017 | GMC | Gas |
| 2018 | GMC | Gas |
| 2019 | GMC | Gas |
Specifications
- MFG. Number 980-24-967
- Manufacturer Name FOX
- Shipping Weight 15.00 lb.
- Shipping Length 41 in.
- Shipping Width 3 in.
- Shipping Height 3 in.
- Fuel Type Diesel / Gas
- Position Front
- UPC 714686856973
- Warranty Yes
- Warranty Info 1 Year Limited
-
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
- Internal L2.00R0.00
Frequently Bought Together
Reviews
No Reviews Yet!
Write a Review
Questions and Answers
Will this fit a 2016 chevy 2500 with 7.5 rc lift?
View Staff Answer
Answer
This shock absorber is designed to fit 2011-2016 GM 2500HD/3500HD 2WD/4WD (Front) Lifted 7-9 inches. Please confirm fitment for your lift kit through the lift kit manufacturer.
This shock absorber is designed to fit 2011-2016 GM 2500HD/3500HD 2WD/4WD (Front) Lifted 7-9 inches. Please confirm fitment for your lift kit through the lift kit manufacturer.
