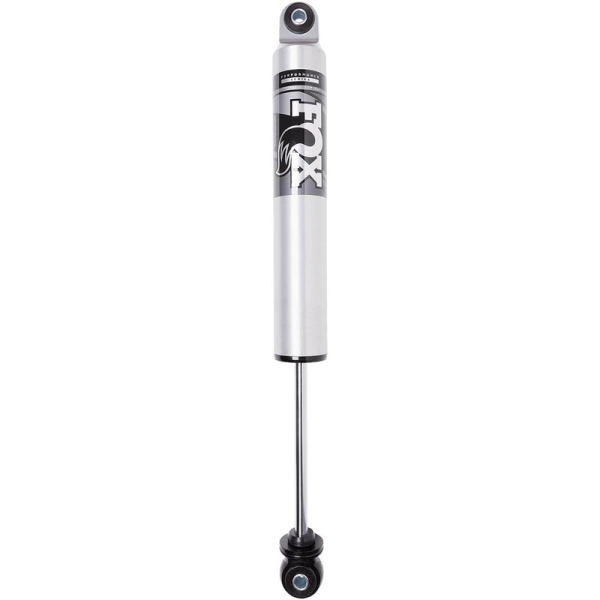

Fox 987-24-011 2.5 Performance Series IFP HTO Shock Absorber
PART#
987-24-011 | SKU FOX987-24-011
Vehicle Fitment For:
2011-2026 GM Silverado/Sierra 2500HD/3500HD (Rear) Lifted 1.5"-2.5"
See full application list below
$346.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
The Fox 987-24-011 2.5 Performance Series IFP HTO Shock Absorber offers position-sensitive technology, vehicle-specific valving, and larger pistons to help improve on and off-road performance in your Chevy Silverado or GMC Sierra 2500HD/3500HD. These FOX Shocks feature a type II anodized aluminum body that
efficiently dissipates heat and prevents corrosion. The 2.5-inch shock
body features an internal floating piston (IFP) to separate the shock
oil from the high-pressure nitrogen, optimizing damping. As a result, the IFP helps eliminate oil
aeration, allowing maximum performance from the factory-tuned precision
valving.
Hydraulic Top Out (HTO) technology offers usable position-sensitive
rebound-damping control on and off the pavement. HTO reduces harsh
top-outs and increases comfort by forcing shock oil through a secondary
shim stack to slow down shock shaft speed; HTO is particularly
beneficial after installing heavier, aggressive tires and applications
lifted higher than OEM specification.
Features:
- FOX Shocks 2.5
- 5/8" Hard Chrome Shaft
- Application Specific Tune
- Internal Floating Piston (IFP)
- Hydraulic Top Out (HTO) Piston
- Fully Rebuildable And Re-Tunable
- Type II Clear-Anodized Body Plating
- High-Flow Velocity-Sensitive Damping
- 2.5" Impact Extruded 6061-T6 Aluminum Shock Body
- Sold Individually
Specifications:
- Extended Length: 26.72
- Compressed Length: 17.54
- Travel: 9.18
- Top Mount: Eyelet
- Bottom Mount: Eyelet
Note:
Lift
height is suggested by manufacturer. Due to the many different aftermarket
suspension systems it is recommended that a measurement is taken for
proper application.
Shock absorbers sold individually.
Manufacturer Warranty*:
Limited Lifetime
Limited Lifetime
Instructions & Tech Info
Installation Info
Reviews For FOX 987-24-011
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For FOX 987-24-011
MPN
987-24-011
SKU
FOX987-24-011
GTIN
692878899369
ID
147090
Manufacturer Name
FOX
Shipping Weight
7.00 lb.
Shipping Length
26 in.
Shipping Width
3 in.
Shipping Height
3 in.
Fuel Type
Diesel / Gas
E-Code
1
Lift Height
1.5", 2", 2.5"
Position
Rear
Manufacturer Warranty*
Limited Lifetime
