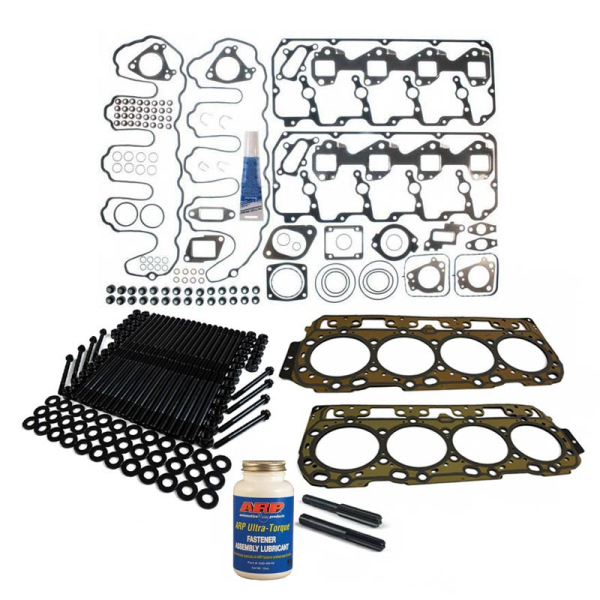

GM 6.6L Duramax LMM Top End Gasket Kit with Head Studs
In This Kit:
(1) HS54580B, (1) XD3006HS, (1) XD40124TC, (1) XD40128TC, (1) 100-9910, (1) 12637785, (1) 12637788
Vehicle Fitment For:
2007.5-2010 GM 6.6L Duramax LMM
See full application list below
$1,142.42
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
The XDP GM 6.6L Duramax LMM Top End Gasket Kit with Head Studs is the perfect solution to help you repair, service, or replace the cylinder heads on your LMM Duramax engine.
At the core of the kit is the MAHLE HS54580B Head Set, which provides OE-style gaskets and seals that provide a perfect fit and a long service life. For the head gaskets, XDP includes the GM 12637785 and GM 12637788 Grade C Head Gaskets (1.05mm), offering direct-replacement options for both the left and right sides of your Duramax engine.
Instead of using the factory head bolts, this kit includes a Head Stud Kit. Head studs are a big upgrade over the Torque-To-Yield (TTY) factory head bolts and are reusable, unlike the TTY head bolts that stretch and need replacement after each use, these head studs provide excellent clamping force.
Don't just install your new head studs into the dirty threaded holes in your engine block. You can prepare your block with the XDP Thread Cleaning Chasers. These tools ensure the internally threaded bolt holes in your engine block are clean of debris, contaminants, and anything else left behind. Clean threads allow for proper installation of your studs, and most importantly, proper torque sequence.
Speaking of torque sequence, you do not want to put those studs in dry. Also in this kit is the ARP Ultra-Torque Fastener Assembly Lubricant. Ultra-Torque has been specifically designed to reduce tension preload scatter and eliminate the need to cycle high performance engine fasteners before final installation. ARP Ultra-Torque far surpasses all requirements offered by previous ARP lubricants in terms of fastener preload repeatability and performance lubricating properties.
At the core of the kit is the MAHLE HS54580B Head Set, which provides OE-style gaskets and seals that provide a perfect fit and a long service life. For the head gaskets, XDP includes the GM 12637785 and GM 12637788 Grade C Head Gaskets (1.05mm), offering direct-replacement options for both the left and right sides of your Duramax engine.
Instead of using the factory head bolts, this kit includes a Head Stud Kit. Head studs are a big upgrade over the Torque-To-Yield (TTY) factory head bolts and are reusable, unlike the TTY head bolts that stretch and need replacement after each use, these head studs provide excellent clamping force.
Don't just install your new head studs into the dirty threaded holes in your engine block. You can prepare your block with the XDP Thread Cleaning Chasers. These tools ensure the internally threaded bolt holes in your engine block are clean of debris, contaminants, and anything else left behind. Clean threads allow for proper installation of your studs, and most importantly, proper torque sequence.
Speaking of torque sequence, you do not want to put those studs in dry. Also in this kit is the ARP Ultra-Torque Fastener Assembly Lubricant. Ultra-Torque has been specifically designed to reduce tension preload scatter and eliminate the need to cycle high performance engine fasteners before final installation. ARP Ultra-Torque far surpasses all requirements offered by previous ARP lubricants in terms of fastener preload repeatability and performance lubricating properties.
Features:
- Comprehensive Kit
- OE-Style Replacement Seals
- Grade C OEM Replacement Head Gaskets
- ARP Ultra-Torque Fastener Assembly Lubricant For Proper Lubrication
- Head Studs Provide Excellent Clamping To Help Avoid Head Gasket Failures
- Thread Chasers Included In M12x1.5 And M8x1.25 To Clean Engine Block Threads
In This Kit
1
MAHLE Head Set (Without Head Gasket) HS54580B
1
XDP X220 Series Head Stud Kit XD3006HS
1
XDP Thread Cleaning Chaser (M12x1.5) XD40124TC
1
XDP Thread Cleaning Chaser (M8x1.25) XD40128TC
1
ARP 100-9910 Ultra-Torque Fastener Assembly Lubricant
1
GM 12637785 Head Gasket (Grade C, Left)
1
GM 12637788 Head Gasket (Grade C, Right)
MAHLE Head Set (Without Head Gasket) HS54580B
1
XDP X220 Series Head Stud Kit XD3006HS
1
XDP Thread Cleaning Chaser (M12x1.5) XD40124TC
1
XDP Thread Cleaning Chaser (M8x1.25) XD40128TC
1
ARP 100-9910 Ultra-Torque Fastener Assembly Lubricant
1
GM 12637785 Head Gasket (Grade C, Left)
1
GM 12637788 Head Gasket (Grade C, Right)
Reviews
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications
ID
XDK216
Manufacturer Name
Custom Bundles
Shipping Weight
23 lb.
Fuel Type
Diesel
E-Code
1
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
HS54580B, XD3006HS, XD40124TC, XD40128TC, 12637785, 12637788, XDK216
