Merchant Automotive 10001 Transfer Case Pump Upgrade Kit
PART#
10001 | SKU ME10001
★★★★★
Vehicle Fitment For:
2001-2007 GM 6.6L Duramax LB7/LLY/LBZ
See full application list below
$77.63
Ground Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
The Merchant Automotive 10001 Transfer Case Pump Upgrade Kit for your 01-07 GM 6.6L Duramax is the best upgrade you can make to your GM transfer case (model 136, 146, 246, 261, 261HD, 263HD, 263XHD, 261XHD) to prevent the ever increasing problem of pump rub.
What is pump rub?
The GM transfer cases use a gear pump inside the case that is driven off the mainshaft. The pump forces oil to the planetary as well as the drive sprocket sleeve. Because the pump is driven by the shaft, the housing of the pump must 'float' in the rear housing. There are 5 tabs around the housing that fit into spots in the rear housing to position the pump. Over time, the pump can start to wear on the rear housing. GM installed a spring steel clip in the housing intended to prevent wear but the clip can break and render useless
Being that the pump housing is aluminum and is a harder material then the magnesium rear housing, it can wear a hole in the rear housing and cause a very small leak. This leak is high enough in the case that it typically will not leak when vehicle is not moving and therefore not leaving any drops on the ground. Typically the condition is not found until there is transfer case damage from running the case out of fluid.With installation of this kit, you will have a LIMITED LIFETIME WARRANTY against pump rub.
Included Components:
Frequently Asked Questions:
What do I do with the OEM anti rattle clip when installing this upgrade?
You can discard the factory clip during installation of this kit. Its been designed to work with the clip removed.
What other parts will I need to install this upgrade kit?
We tried to make the kit all inclusive for a basic installation. This is taking into consideration of course that its being installed as preventative measures. If its being installed as part of a repair or after pump rub has occurred, there is no real way to know the extent of the damage inside the case until it is torn down. Most times, as long as the case has not run out of fluid, it can usually be repaired with a new rear housing and seal and prevented from ever happening again using the upgrade kit. Regardless of the reason for installing this upgrade, you will need to refill the transfer case with oil. We recommend our Performance Transfer Case Oil for use in ALL transfer cases.
What is pump rub?
The GM transfer cases use a gear pump inside the case that is driven off the mainshaft. The pump forces oil to the planetary as well as the drive sprocket sleeve. Because the pump is driven by the shaft, the housing of the pump must 'float' in the rear housing. There are 5 tabs around the housing that fit into spots in the rear housing to position the pump. Over time, the pump can start to wear on the rear housing. GM installed a spring steel clip in the housing intended to prevent wear but the clip can break and render useless
Being that the pump housing is aluminum and is a harder material then the magnesium rear housing, it can wear a hole in the rear housing and cause a very small leak. This leak is high enough in the case that it typically will not leak when vehicle is not moving and therefore not leaving any drops on the ground. Typically the condition is not found until there is transfer case damage from running the case out of fluid.With installation of this kit, you will have a LIMITED LIFETIME WARRANTY against pump rub.

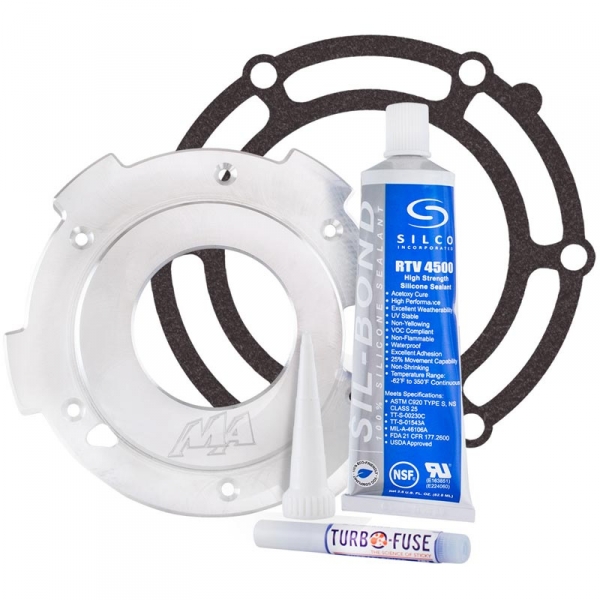

Included Components:
- Merchant Automotive billet transfer case pump housing
- Transfer case adapter gasket at trans
- RTV Silicone
- Blue Threadlock
- Merchant Automotive sticker
If you already have a hole in your case, its recommended to install a new rear housing for a proper repair. Lifetime warranty will only apply to installations with a new rear housing.
| Application Guide |
||
| Year |
Model |
Transfer Case Model Number |
| 1998-2007 |
GM Silverado/Sierra - 1500, 1500HD, 2500, 2500HD, 3500 |
NP246, NP261HD, NP263HD, NP261XHD, NP263XHD |
| 1998-2003 |
Blazer / Jimmy |
NP236 |
| 1999-2005 |
Astro/Safari |
NP136 |
| 1999-2007 |
Escalade |
NP246, NP149 |
| 2002-2007 |
Avalanche 1500/2500 |
NP246, NP261, NP263, NP263HD |
| 1998-2007 |
Suburban/Yukon/Tahoe/Yukon XL 1500/2500 |
NP246 |
Frequently Asked Questions:
What do I do with the OEM anti rattle clip when installing this upgrade?
You can discard the factory clip during installation of this kit. Its been designed to work with the clip removed.
What other parts will I need to install this upgrade kit?
We tried to make the kit all inclusive for a basic installation. This is taking into consideration of course that its being installed as preventative measures. If its being installed as part of a repair or after pump rub has occurred, there is no real way to know the extent of the damage inside the case until it is torn down. Most times, as long as the case has not run out of fluid, it can usually be repaired with a new rear housing and seal and prevented from ever happening again using the upgrade kit. Regardless of the reason for installing this upgrade, you will need to refill the transfer case with oil. We recommend our Performance Transfer Case Oil for use in ALL transfer cases.
Manufacturer Warranty*:
Lifetime
Lifetime
Reviews For Merchant Automotive 10001
Overall Rating
/5
2 Reviews
Rating Snapshot
2
0
0
0
0
Transfer Case Upgrade
Robert (Arizona) | August 3rd, 2020
This is an excellent upgrade for my transfer case should last a long time.
Merchant Automotive 10001 Kit
Rod (Kansas) | November 5th, 2015
Installed just in time. Hole in case was almost there. No directions sent with unit but found them on Merchant Automotive web site. Took just under four hours to install. Never looked back. Great upgrade.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For Merchant Automotive 10001
MPN
10001
SKU
ME10001
ID
23793
Manufacturer Name
Merchant Automotive
Shipping Weight
1.00 lb.
Shipping Length
9 in.
Shipping Width
9 in.
Shipping Height
3 in.
Fuel Type
Diesel
Manufacturer Warranty*
Lifetime
