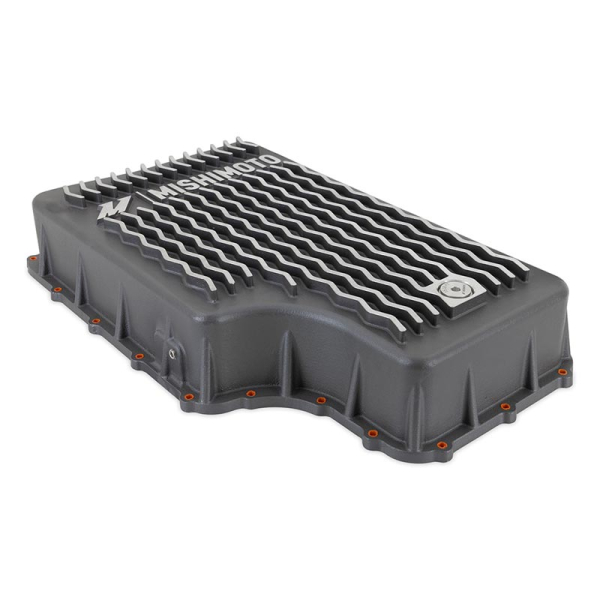

Mishimoto MMTP-F2D-11 6R140 Cast Aluminum Transmission Pan

Upgrade the transmission pan on your Ford 6.7 Powerstroke with the Mishimoto MMTP-F2D-11 6R140 Cast Aluminum Transmission Pan from XDP. This Mishimoto Aluminum Transmission Pan is a direct-fit, upgrade for your Ford 6.7L Powerstroke. Cast from high-quality aluminum and powder-coated Gunmetal Gray, this transmission pan is a robust and long-lasting upgrade for your vehicle's transmission. With a sleek design and bottom ribs, this pan not only adds to the overall aesthetic of your truck but also provides improved cooling.

This transmission pan features internal baffles that reduce sloshing and enhance heat dissipation, resulting in smoother transmission performance. All the headaches that come with a flat gasket and messy sealants are eliminated with our precision-machined dovetail-style groove and O-ring seal. This groove positively retains the O-ring, so you never have to worry about it falling out of place during installation. Additionally, the Mishimoto Ford 6.7L Powerstroke Aluminum Transmission Pan adds an extra 5.9 quarts of ATF to help maintain optimal transmission operation.

Fed up with the frustration of trying to hold up a transmission pan with one hand while threading the fasteners in with the other? Mishimoto has you covered with pre-installed bolt retainers that hold the fasteners in the pan, allowing you to easily thread the bolts without dropping them on the ground, your head, or worse, that pan of nasty transmission fluid you just drained. Additionally, this pan comes equipped with a magnetic drain plug for easy draining and a 1/8-inch NPT port and plug for temperature sensors to make servicing your transmission and monitoring temperatures a breeze.

Features:

• Direct Fit Design
• Durable Cast-Aluminum Construction
• Bolt Retainers Hold Fasteners In Place
• Internal Baffles Reduce Sloshing And Enhance Heat Dissipation
• Dovetail-Style Groove With O-Ring Seal Ensure A Reliable Seal
• 1/8-Inch NPT Port Makes Adding A Temp Sensor Fast And Easy
• Magnetic Drain Plug Makes Servicing Your Transmission A Breeze
• Increases Fluid Capacity By 5.9 Quarts Over The Stock Transmission Pan
• Gunmetal Gray Powder Coat Finish Adds Style And Function To Your Truck's Undercarriage

Includes:
(1) Cast Aluminum Transmission Pan
(1) Magnetic Drain Plug
(19) Silicone Bolt Retainers
(19) Socket Head Cap Screws W/ Washers
(1) O-Ring Seal
(1) 1/8-In NPT Plug
