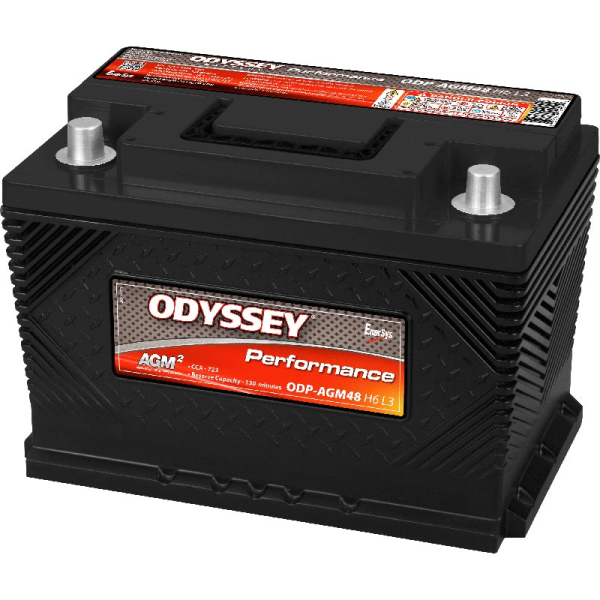

Odyssey Battery Performance Series AGM - Group Size 48 H6 (760 CCA)
PART#
0752-2020 | SKU ODY0752-2020
★★★★★
Vehicle Fitment For:
Universal - Group 48 (H6), 760 CCA, AGM Battery
See full application list below
NOTES: Due to a running change by Odyssey, the Performance Series Batteries will begin coming with a black top instead of red. During the transition period, you may receive bla
$362.99
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Upgrade the battery in your vehicle with the Odyssey Battery Performance AGM - Group Size 48 H6 (760 CCA) ODP-AGM48 H6 L3. The Odyssey Performance System batteries offer increased reliability, deeper cycle capabilities, and a longer service life compared to a conventional battery.
The batteries are manufactured by Odyssey using plates made of 99.99% pure lead, not lead-alloy like less expensive alternatives. Pure lead plates can be made thinner, so more plates can fit inside the battery case. More plates means more surface area, which translates into more power!
Odyssey batteries also employ dry cell Absorbed Glass Mat (AGM) technology to contain acid. This allows the battery to be installed in almost any position, even on its side. For added durability, the batteries also feature Robust Intercell Connections. This helps prevent premature battery failure, typically caused by high impact shocks and vibrations.
The Group 48 battery size is commonly found in these vehicles:
2007.5-2010 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax LMM)
2011-2016 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax LML)
2017-2026 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax L5P)
The batteries are manufactured by Odyssey using plates made of 99.99% pure lead, not lead-alloy like less expensive alternatives. Pure lead plates can be made thinner, so more plates can fit inside the battery case. More plates means more surface area, which translates into more power!
Odyssey batteries also employ dry cell Absorbed Glass Mat (AGM) technology to contain acid. This allows the battery to be installed in almost any position, even on its side. For added durability, the batteries also feature Robust Intercell Connections. This helps prevent premature battery failure, typically caused by high impact shocks and vibrations.
Features:
- Maintenance Free
- Vibration Resistant
- Longer Service Life
- Extreme Temperature Tolerance
- Mounts in Virtually Any Position
Odyssey 48-720 Performance Series AGM Battery Specifications:
- Group Size: 48
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 1250A
- Cold Cranking Amps (CCA): 760A
- HCA: 950A
- MCA: 840A
- 20Hr Nominal Capacity (Ah): 70Ah
- 10Hr Nominal Capacity (Ah): 63Ah
- Reserve Capacity Minutes: 130 mins
- Terminal: SAE
- Torque Spec in-lbs (Nm max): N/A
- Internal Resistance (mΩ): 2.8 mΩ
- Short Circuit (A): 2300A
- Recommended Min. Charging Current (A): 6.3A
- Operating Temperature Range: -40°F / -40°C to 140°F / +60°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241140514
- Dimensions (in): 10.90" x 6.90" x 7.40" (terminals included)
- Weight (lbs): 48
The Group 48 battery size is commonly found in these vehicles:
2007.5-2010 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax LMM)
2011-2016 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax LML)
2017-2026 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax L5P)
2020-2023 Jeep Wrangler JL (3.0 EcoDiesel)
2021-2023 Jeep Gladiator JT (3.0 EcoDiesel)Jeep Application Note:
The Jeep Wrangler JL/Gladiator JT came equipped with either a Group 48 or Group 94R battery from the factory depending on configuration/options.
The Jeep Wrangler JL/Gladiator JT came equipped with either a Group 48 or Group 94R battery from the factory depending on configuration/options.
Please check and verify your battery group number before ordering.
Note:
Due to a running change by Odyssey, the Performance Series Batteries will begin coming with a black top instead of red. During the transition period, you may receive black or red. If you prefer the old look of the red top, you can purchase the Extreme Series battery as they will remain unchanged.
