Rare Parts 20609 Extreme Duty Pitman Arm (3 Spline)

The Rare Parts 20609 Extreme Duty Pitman Arm (3-Groove) from XDP replaces the weak factory part on your 2001-2010 GM Silverado/Sierra 2500HD/3500HD. The cold headed 30mm ball stud eliminates binding between the pitman and idler arm. The durable steel construction ensures this pitman arm can withstand the stress from added horsepower or larger wheel and tire combinations.

Features:

• Made in the USA
• Heat treated steel race
• Powder metal upper bearing
• Cold headed 30MM full ball stud
• Fits 3-Grove/33-Spline Gear Boxes
• Relocated grease fitting for easy access
• SAE 1541 forged, and heat treated forging with increased size for maximum strength
• Induction through hardened and annealed SAE 4140 stud provides extreme wear resistance

Stud Dia. Small End Of Taper: 0.598
Sector Shaft Diameter:1.313
Sector Shaft Spline Large Inner Diameter: 1.151
Length Center to Center: 5.625
Key Way (Male or Female): Male
Off Set: Up
# of Splines: 33
Greaseable: Yes
Hardware Content Included: Yes
Arm Type: Bent
Arm Fixture: Stud
Arm Fixture Stud Thread/Hole Inside Diameter: M14-2.0

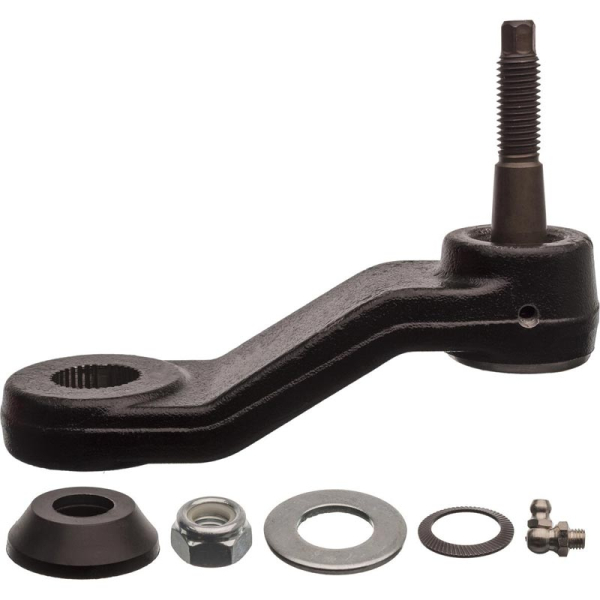

Package Contents: 1 Pitman Arm, 1 Dust Boot, 1 Lock Nut, 1 Grease Fitting

Manufacturer Warranty*:
Limited Lifetime Warranty
