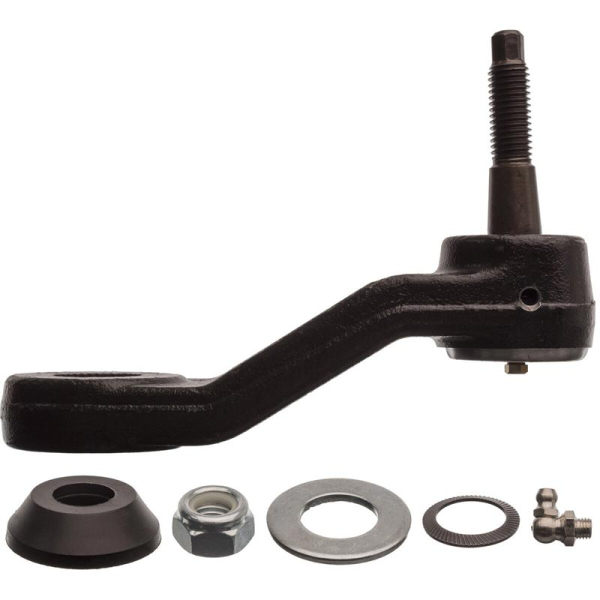

Rare Parts 20610 Extreme Duty Pitman Arm (4 Spline)

The Rare Parts 20610 Extreme Duty Pitman Arm (4-Groove) from XDP restores the steering system in your 2001-2010 GM Silverado/Sierra 2500HD/3500HD. The cold headed 30mm ball stud eliminates binding between the pitman and idler arm. The robust steel construction ensures this pitman arm can resist the stress from added horsepower or larger wheel and tire combinations.

Features:

• Made in the USA
• Cold headed 30MM full ball stud
• Heat treated steel race
• Powder metal upper bearing
• Relocated grease fitting for easy access
• Fits 4-Grove/32-Spline Gear Boxes
• SAE 1541 forged, and heat treated forging with increased size for maximum strength
• Induction through hardened and annealed SAE 4140 stud provides extreme wear resistance

Stud Dia. Small End Of Taper: 0.598
Sector Shaft Dia.: 1.313
Sector Shaft Spline Large Inner Dia.: 1.151
Length Center to Center: 5.625
Key Way (Male or Female): Male
Off Set: Up
# of Splines: 32
Greaseable: Yes
Hardware Content Included: Yes
Arm Type: Bent
Arm Fixture: Stud
Arm Fixture Stud Thread/Hole Inside Dia.: M14-2.0
Package Contents: 1 Pitman Arm, 1 Dust Boot, 1 Lock Nut, 1 Grease Fitting

Manufacturer Warranty*:
Limited Lifetime Warranty
