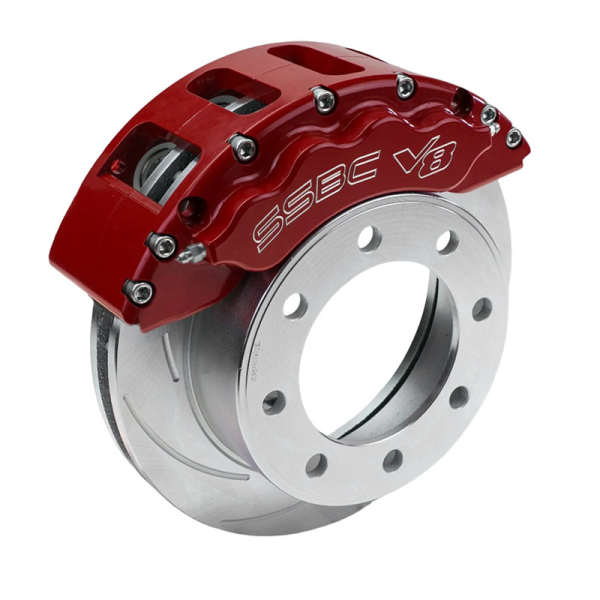

SSBC A-193-1-DS V8 8-Piston Brake Caliper & Rotor Kit (Front)

Vehicle Fitment:
1999-2004 Ford F-250/350 | 2000-2005 Excursion 2WD/4WD | See full application list below
Part #:
FROM 1707
Buy now, pay later using Affirm Logo during checkout.
Ships directly from the manufacturer

An Email Will Be Sent With Expected Shipping Date After Purchase

Ground Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Color
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The SSBC A-193-1-DS V8 8-Piston Brake Caliper & Rotor Kit (Front) from XDP provides your 1999-2004 Ford F-250/350 or 2000-2005 Excursion 2WD/4WD with the braking power it needs.

The V8 caliper upgrade kit enhances the appearance of your vehicle by filling the empty space behind your wheels. This kit from SSBC-USA features an 8-piston, heavy-duty brake caliper that provides your truck with the stopping power and performance it requires. The calipers are constructed from aircraft-grade T6061 billet aluminum with stainless steel pistons using CNC machining, resulting in high-performance, quick-change calipers. These calipers are lightweight and have a large bore, making them direct replacements for the factory 2-piston front calipers. Moreover, they have a clear anodized coating, black powder coat, or red powder coat for lasting durability, and include dimple drilled and slotted brake rotors for superior performance with zinc plating to resist corrosion. The brake upgrade kit can be easily installed as it bolts directly onto your stock steering spindles/knuckles. It is designed to fit behind most factory wheels and comes with high-performance severe-duty brake pads, all necessary hardware, and full instructions.

Features:
  • Direct-Bolt On
  • Eye-Popping Good Looks
  • Incredible Stopping Power
  • Significantly Upgraded Safety
  • Fits Behind Most Factory Wheels
  • Fully Assembled And Easy To Install
  • Works With Factory Hydraulics & ABS
  • Simple Instructions For Bolt-On Installation
  • Slotted Rotor Design Reduces Brake Fade & Glazing
  • Quick Change Direct-Fit Design (No Brackets Required)
  • All Rotor Surfaces Zinc Plated To Help Prevent Corrosion
  • Bolts Onto Stock Spindles With Existing Mounting Hardware
  • Rotors Feature Fully Vented Vane Configuration For Maximum Cooling
  • "Dimple Drilled" Gives Similar Benefits to "Cross Drilled" With Improved Long-Term Reliability
  • Available In A Clear Anodized, Black Powder Coat, Or Red Powder Coat Finish



Kit Includes:
(2) Calipers Complete With High-Friction, Low-Dust Semi-Metallic Brake Pads
(2) Dimple Drilled & Slotted High-Performance Brake Rotors
(8) Heavy Duty, Large Bore Stainless Steel Pistons Per Caliper
(7) Bridge Bolts Per Caliper For Maximum Stiffness
(2) Stainless Steel Pad Pins Per Caliper
(2) Stainless Steel Anti-Rattle Pad Clips Per Caliper
(4) Stainless Steel Bleeders Per Caliper
(8) HD Square-Cut Pressure Seals & 8 Dust Seals Per Caliper (DOT Design)
(1) Banjo Bolt With Compression Washer Per Caliper

Vehicle Fitment

YEAR MAKE FOR ENGINE SERIES
1999 Ford 7.3L Powerstroke
2000 Ford 7.3L Powerstroke
2001 Ford 7.3L Powerstroke
2002 Ford 7.3L Powerstroke
2003 Ford 7.3L Powerstroke
2003 Ford 6.0L Powerstroke
2004 Ford 6.0L Powerstroke
1999 Ford Gas
2000 Ford Gas
2001 Ford Gas
2002 Ford Gas
2003 Ford Gas
2004 Ford Gas

Product Options

PART NUMBER COLOR
A193-1-DS Clear Anodized
A193-1BK-DS Black Powder Coat
A193-1R-DS Red Powder Coat

Specifications

  • ID 130889
  • Manufacturer Name SSBC-USA
  • Shipping Weight 85.00 lb.
  • Shipping Length 14 in.
  • Shipping Width 14 in.
  • Shipping Height 14 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
