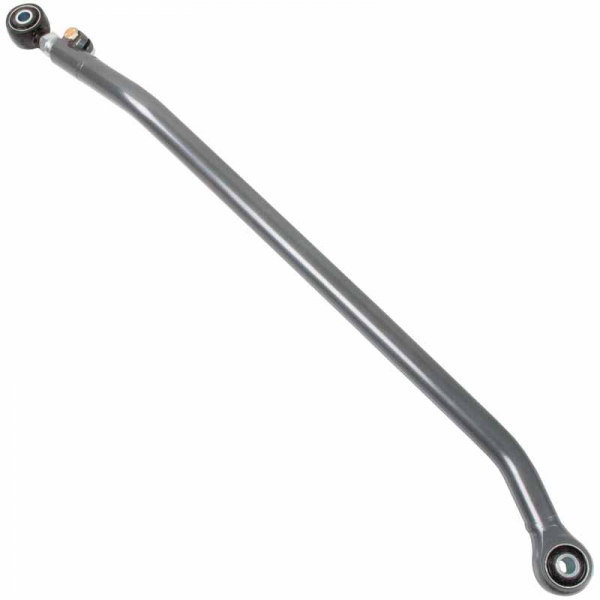

Synergy 8704-01 Heavy-Duty Adjustable Front Track Bar

The Synergy 8704-01 Heavy-Duty Adjustable Front Track Bar from XDP is an ideal upgrade for your 2014-2023 Ram 2500 4WD or 2013-2023 Ram 3500 4WD. Adjustable track bars are used to help center your axles when leveling the truck or running a suspension lift. This track bar significantly improves lateral stiffness over stock and is considerably stronger than stock to hold up to the abuse of large tires and aggressive off-road driving. Length is adjustable on the vehicle to make adjustments a breeze. Uses maintenance-free Synergy Dual Durometer Bushings on both ends. Bent to clear most aftermarket differential covers. Pair with Synergy's Drag Link and Tie Rod to bulletproof your steering and guarantee product compatibility from stock height to 4 plus inches of lift. This kit features 100 percent bolt-on components to ensure an easy, trouble free installation with the use of basic hand tools.

Features:

Made From High Quality 1.50” X .250 Wall DOM
Retains Factory Track Bar Mounting Bolts & Hardware
Suspension Components Feature An Abrasion-Resistant Powder Coat Finish For Maximum Durability And Corrosion Resistance
Synergy Double Adjuster Sleeve & Pinch Bolt Assembly Allows For Adjustment Of Track Bar Length Without Removing Control Arm Mounting Bolt
Features Synergy Dual Durometer Bushings (DDB) With Teflon Bearing Surface For A Maintenance Free Design Focusing On Performance, Flex, Longevity, And Ride Quality

Benefits:

No Modifications Required To Install
Compatible With Synergy HD Steering
Maintenance Free, No Greasing Required
Adjustable Without Removing From Vehicle
No Jam Nuts That Are Impossible To Keep Tight
Bent To Clear Most Aftermarket Differential Covers
Allows Centering Of Front Axle When Running A Suspension Lift
Isolates Noise, Vibration, And Harshness (NVH) Increasing Ride Quality
Limited Lifetime Warranty

Measured In Straight Line From Center Of Bolt Hole To Center Of Bolt Hole
Min collapsed length: 37.75"
Max extended length: 39.25"

(1) Synergy Ram Front Track Bar
(1) Grade 8 Hardware Kit
(1) Synergy Double Adjuster Sleeve

Notes:

Compatible from 0-4" of lift in the stock mounting locations with no bump stop spacing required.
Drop pitman arm and front track bar relocation bracket are recommended for lifts over 4" and requires 2" of bump stop spacing.
Can be used with lowered trucks (competition sled pulling) to re-center the axle.
The replacement adjustable joint is 4810-01 and the replacement bushings are 4328-01.
OEM Track Bar length is 38.63" or 38.75" for Power Wagons.
NOT compatible with AEV Prospector Lift Kit.
