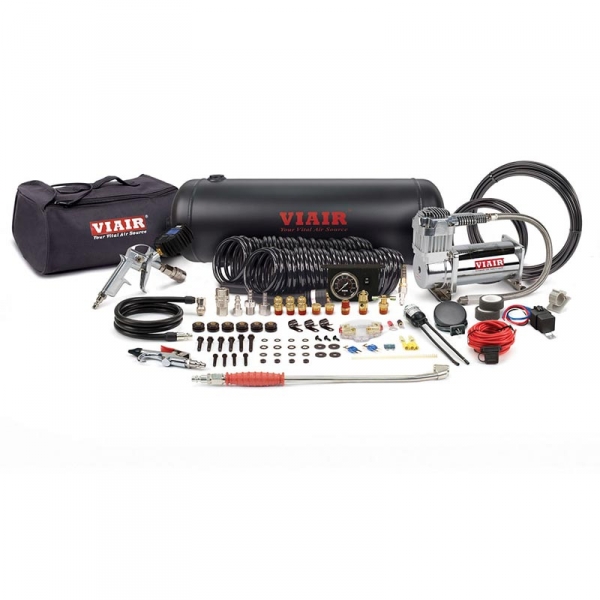

Viair 50017 Base Camp Heavy-Duty On-Board Air System

The Viair 50017 Base Camp Heavy-Duty On-Board Air System is engineered to inflate Class C Motorhome tires to 70-80 PSI in about 60 seconds. The on-board air system consists of a 2-gallon tank and a 400C Chrome 150 PSI compressor. With the help of this compressor, you can operate numerous pneumatic devices, including air horns, lockers, and tools. All the parts required for installation are included in this pre-packaged air solution. There are a few useful tools provided, including a Rubber-Tipped Blow Gun, a Tire Inflation Gun, and a 45-Degree Dually Extended Reach Chuck.

Features:

• Storage Bag
• Rubber-Tipped Blow Gun
• Air Source Relocation Kit
• 1/4" (M) to 1/4" (M) NPT Reducer
• 90-Degree Twist-on 40" Chuck Air Hose
• 45-Degree Dually Extended Reach Chuck
• Mini ANL Fuse holder With 40-Amp Fuse
• (5) Pc. Tank 200 PSI Rated Port Fittings Kit
• 2 Gallon 150 PSI Matte Black VIAIR Air Tank
• Digital RV Tire Inflation Gun With 180 PSI Gauge
• Sealed Pressure Switch (110 PSI On, 145 PSI Off)
• Illuminated Black Face Dash Panel 200 PSI Gauge Kit
• 40-Amp Sealed 4-Prong Relay With Pre-wired Female Socket
• 400C Chrome VIAIR Compressor With Thermal Overload Protector
• (2) 30ft. Inside Braided Black Coil Hose With Quick Connect & Stud

Specifications:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Ingress Protection Rating: IP67
Max. 12V Amp Draw: 30-Amps
Max. Working Pressure: 150 PSI

Manufacturer Warranty*:
1 Year
