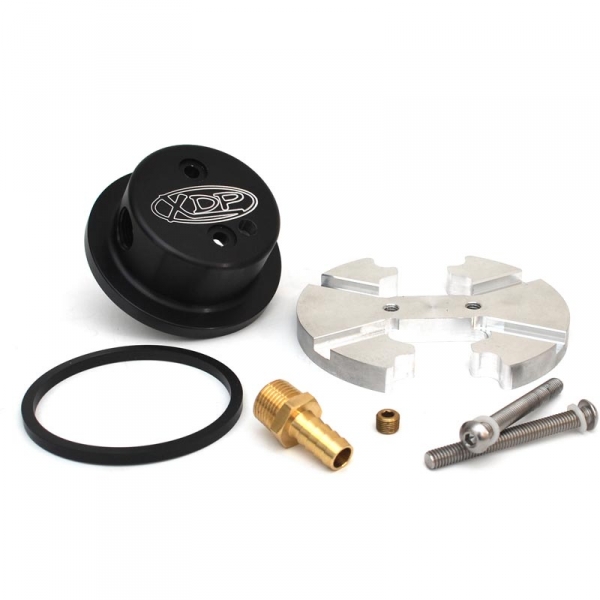

XDP Fuel Tank Sump - One Hole Design XD182

Universal - Most Diesel Fuel Tanks (Cutting Required)
Part #: XD182
★★★★★ ★★★★★ 5 Reviews
$149.95
In-Stock
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The XDP Fuel Tank Sump XD182 is the perfect solution for those wanting to maximize fuel delivery to their engine. This One Hole Design Fuel Tank Sump is easier to install than others on the market, and it only requires one hole in your fuel tank! The XD182 provides an outlet for fuel on the bottom of your fuel tank, which eliminates the typical ¼ tank issues associated with in-tank draw straws used with aftermarket fuel system such as Air Dog & FASS Pumps.

For an easy install, the inner-ring is designed to fit in the bottom of the tank without needing to remove it from the truck. A machined groove for the o-ring gasket ensures a leak free seal, and the 2-bolt design eliminates the need to drill additional bolt holes in your tank. For use with aftermarket fuel systems. Includes barbed 1/2 NPT fitting for 1/2" hose.

Features:
  • Built-In Drain Plug
  • No Tank Drop Installation
  • Large Opening for Unrestricted Fuel Flow
  • Made From Aircraft Grade T6 Billet Aluminum
  • Works Great With Stock & Aftermarket Fuel Tanks
  • MADE IN THE USA!
Note: Not recommended for off-road applications or for vehicles with potential ground clearance issues. Extra care must be taken to ensure that fuel tank is free of debris after drilling.

Warranty Info:
Products manufactured by XDP carry a 1-Year warranty against defects in materials and craftsmanship. The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within the product's kit. Click Here for full warranty policy.

Specifications

  • MFG. Number XD182
  • Manufacturer Name XDP
  • Shipping Weight 2.00 lb.
  • Shipping Length 7 in.
  • Shipping Width 7 in.
  • Shipping Height 7 in.
  • Fuel Type Diesel
  • UPC 865978000052
  • Warranty Yes
  • Warranty Info 1 Year / Unlimited Mileage
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Reviews

★★★★★ ★★★★★
4.8/5 Stars out of 5 Reviews
1
0
2
0
3
0
4
1
5
4
Verified Buyer
Good Sump, but Needs Improvements
4
I installed this sump on my 2004 F-250 6.0l along with an AirDog 165 pump. Everything worked out well. The parts seem to be good quality, machining and finish look great. But it is lacking in a couple small areas. The instructions tell you to put teflon tape on the threads of the outlet fitting before installing, but don’t specify which kind. I had to research this and find out which grade of tape would be suitable for diesel fuel, as I wasn’t comfortable with normal white tape having to withstand contact with diesel. The second thing is there’s no hose clamp included or mention of hose clamp in the instructions. All the fittings on the AirDog required no clamps so I assumed the one on the XDP sump would be the same. After filling tank with fuel it began leaking and I had to add one. All small inconveniences, but things that I expect to have for the price. Overall it’s still a great product, I’d buy another.
Easy to install
5
Got a 3in hole saw threw the mounting plate inside ( Very clever design ), no need to drop the tank the mounting plate is designed to go right up into the 3 inch hole with some maneuvering. Bolt everything up and your good to go. Used this for my suction line on my fass fuel pump
Works good
5
Works good will see how long the seal last
Pages 1   2

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Can this be installed on a metal tank?
View Staff Answer
Answer

Yes, the XDP FUEL TANK SUMP - ONE HOLE DESIGN XD182 can be installed into a metal fuel tank. However, the tank must be at least 6mm thick to make a good seal.

Can it be ran on a stock fuel pump?
View Staff Answer
Answer

Universal items on our site have no specific application fitment information. Please contact our Experts via E-mail (), Phone (1-888-343-7354) or LiveChat (Found on the bottom right hand corer of our website) for additional details on the item to see if it fits just what you’re looking for.

What size hole saw does it need?
View Staff Answer
Answer
The XDP Fuel Tank Sump - One Hole Design XD182 requires the use of a 3" holesaw.
What is the fitting thread pitch?
View Staff Answer
Answer
The fitting on this product is a 1/2 NPT fitting.
