Part #: XD390

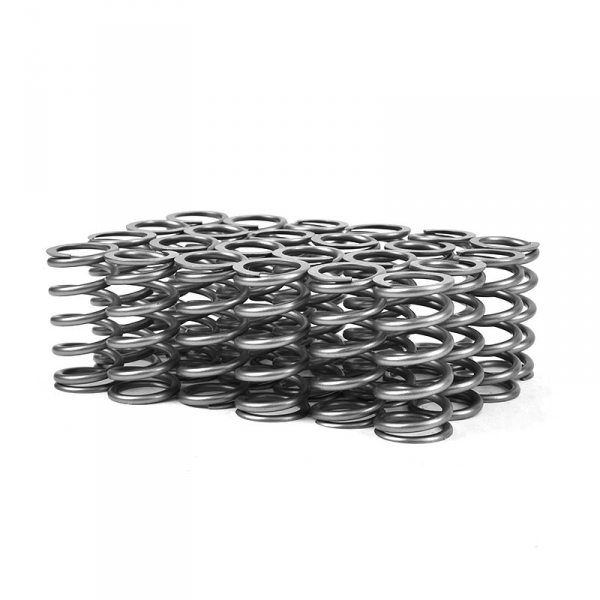

XDP HD High Boost Valve Spring Set XD390

Vehicle Fitment:
1998.5-2024 Dodge Ram 5.9L/6.7L Diesel | See full application list below
Part #: XD390
★★★★★ ★★★★★ 1 Reviews
$399.95
Buy now, pay later using Affirm Logo during checkout.
In-Stock
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?

Complete the job with these highly suggested add-on products.

Product prices marked with an * may require additonal fees, such as a core charge, which will be displayed in the cart.

SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Control the valvetrain in your modified vehicle with the XDP HD High Boost Valve Spring Set XD390. The XD390 Valve Spring Kit is designed to help eliminate valve float due to elevated cylinder pressures and higher boost levels. Common upgrades like aftermarket tuning and fueling and turbo upgrades can cause valve float that results in severe engine damage. Intake valves can also be blown open from added boost levels and exhaust drive pressure which allows reversion. Reversion is when exhaust gasses enter cylinder on the intake stroke, another condition that can hurt your power potential.

The XD390 Valve Spring Set is ideal for the enthusiast that is running an aftermarket camshaft, upgraded or compound turbochargers, and fueling upgrades. These springs are ready to install using your factory retainers and locks. The XD390 Valve Springs have a reduced OD and will fit all 1998.5-2002 cylinder heads regardless of the casting inconsistencies.

Features:
  • Performance Valve Spring Kit
  • Essential For Elevated Boost Levels (+50 lbs)
Specifications:
Installed Height:1.340"
Installed Pressure: 108lbs
192lbs @ .920"
Coil Bind: .800"

Warranty Info:
Products manufactured by XDP carry a 1-Year warranty against defects in materials and craftsmanship. The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within the product's kit. Click Here for full warranty policy.

Disclaimer: XDP is in no way affiliated with Cummins or any of its subsidiaries or related companies, and that Cummins has not authorized the sale of any of XDP's parts, and has not tested or approved any of XDP’s parts for use in genuine Cummins brand products.
Shipping Restrictions Apply shipping restriction icon This product can not be shipped to these states: CA

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
1998 Dodge Ram 2500 5.9
1999 Dodge Ram 2500 5.9
2000 Dodge Ram 2500 5.9
2001 Dodge Ram 2500 5.9
2002 Dodge Ram 2500 5.9
2003 Dodge Ram 2500 5.9
2004 Dodge Ram 2500 5.9
2005 Dodge Ram 2500 5.9
2006 Dodge Ram 2500 5.9
2007 Dodge Ram 2500 5.9
2007 Dodge Ram 2500 6.7
2008 Dodge Ram 2500 6.7
2009 Dodge Ram 2500 6.7
2010 Dodge Ram 2500 6.7
1998 Dodge Ram 3500 5.9
1999 Dodge Ram 3500 5.9
2000 Dodge Ram 3500 5.9
2001 Dodge Ram 3500 5.9
2002 Dodge Ram 3500 5.9
2003 Dodge Ram 3500 5.9
2004 Dodge Ram 3500 5.9
2005 Dodge Ram 3500 5.9
2006 Dodge Ram 3500 5.9
2007 Dodge Ram 3500 5.9
2007 Dodge Ram 3500 6.7
2008 Dodge Ram 3500 6.7
2009 Dodge Ram 3500 6.7
2010 Dodge Ram 3500 6.7
2008 Dodge Ram 4500 6.7
2009 Dodge Ram 4500 6.7
2010 Dodge Ram 4500 6.7
2008 Dodge Ram 5500 6.7
2009 Dodge Ram 5500 6.7
2010 Dodge Ram 5500 6.7
2011 Ram 2500 6.7
2012 Ram 2500 6.7
2013 Ram 2500 6.7
2014 Ram 2500 6.7
2015 Ram 2500 6.7
2016 Ram 2500 6.7
2017 Ram 2500 6.7
2018 Ram 2500 6.7
2019 Ram 2500 6.7
2020 Ram 2500 6.7
2021 Ram 2500 6.7
2022 Ram 2500 6.7
2011 Ram 3500 6.7
2012 Ram 3500 6.7
2013 Ram 3500 6.7
2014 Ram 3500 6.7
2015 Ram 3500 6.7
2016 Ram 3500 6.7
2017 Ram 3500 6.7
2018 Ram 3500 6.7
2019 Ram 3500 6.7
2020 Ram 3500 6.7
2021 Ram 3500 6.7
2022 Ram 3500 6.7
2011 Ram 4500 6.7
2012 Ram 4500 6.7
2013 Ram 4500 6.7
2014 Ram 4500 6.7
2015 Ram 4500 6.7
2016 Ram 4500 6.7
2017 Ram 4500 6.7
2018 Ram 4500 6.7
2019 Ram 4500 6.7
2020 Ram 4500 6.7
2021 Ram 4500 6.7
2022 Ram 4500 6.7
2011 Ram 5500 6.7
2012 Ram 5500 6.7
2013 Ram 5500 6.7
2014 Ram 5500 6.7
2015 Ram 5500 6.7
2016 Ram 5500 6.7
2017 Ram 5500 6.7
2018 Ram 5500 6.7
2019 Ram 5500 6.7
2020 Ram 5500 6.7
2021 Ram 5500 6.7
2022 Ram 5500 6.7

Specifications

  • MFG. Number XD390
  • Manufacturer Name XDP
  • Shipping Weight 2.00 lb.
  • Shipping Length 10 in.
  • Shipping Width 4 in.
  • Shipping Height 4 in.
  • Fuel Type Diesel
  • Warranty Info 1 Year / Unlimited Mileage
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R5
