XDP X220 Main Stud Kit XD3016MS

Swap out the factory main bolts on your 1994-1997 Dodge 5.9L Diesel 12-Valve with the XDP X220 Main Stud Kit XD3016MS. The XDP main studs feature high-quality 8740 Chromoly construction that also includes a proprietary element added for upgraded strength and durability. A tensile strength between 220K psi and 236K psi and a yield strength between 210K psi and 230K psi ensures these studs can handle the increased performance of upgraded applications. In addition, the threads are rolled after heat-treating to deliver optimum fatigue strength.

Upgrading from the OEM main bolts to studs also allows you to obtain a much more accurate torque reading. A bolt gets twisted as it is tightened, so it's reacting to two different forces at the same time. With a stud the force gets applied to the vertical axis, resulting in a more even clamping force. Furthermore, they provide for easier engine assembly and proper alignment of the main bearing caps every time. These studs are also reusable unlike OEM Torque-To-Yield (TTY) bolts which must be replaced after each use. Studs are manufactured in an ISO/TS 16949 quality control facility. Included with the studs are washers and 12-point nuts. Assembly lubricant sold separately.

Features:

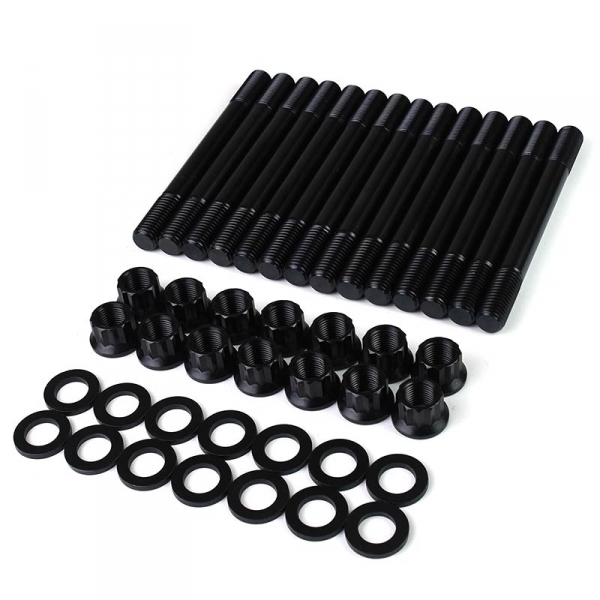

• Includes Washers & 12-Point Nuts
• Yield Strength 210K psi - 230K psi
• Tensile Strength 220K psi - 236K psi
• Will Not Stretch Like The Factory Bolts

• Thread Has Been Rolled After Heat Treatment
• High-Strength 8740 Chromoly Construction
• 10mm Studs Test Out At A Max Load: Over 120KN
• Manufactured In An ISO/TS 16949 Quality Control Factory
• Studs Are Reusable, Unlike Torque-To-Yield (TTY) Bolts Which Much Be Replaced After Each Use

TECH TIPS:
XDP Thread Cleaning Chasers (Sold Separately):
The XDP Thread Cleaning Chaser XD40126TC is the perfect add-on to any head stud installation. Using Thread Cleaning Chasers ensures that you are able to properly clean the threads in your engine block before the installation of any studs or fasteners. Clean threads will provide you with accurate torque readings which are critical to your head gasket repair, or engine build.

XDP X-TRA Slick Engine & Fastener Assembly Lubricant (Sold Separately):
The use of XD541 is highly recommended during engine assembly. Apply XDP X-TRA Slick Lubricant to head studs, head bolts, main studs, main bolts, connecting rod bolts, and any other fasteners used during engine assembly. Using a proper assembly lubricant during fastener installation reduces friction and torque pre-load scatter in the torquing sequence, while also helping to prevent thread galling and seizing.

Disclaimer: XDP is in no way affiliated with Cummins or any of its subsidiaries or related companies, and that Cummins has not authorized the sale of any of XDP's parts, and has not tested or approved any of XDP’s parts for use in genuine Cummins brand products.
