Part #: XD316

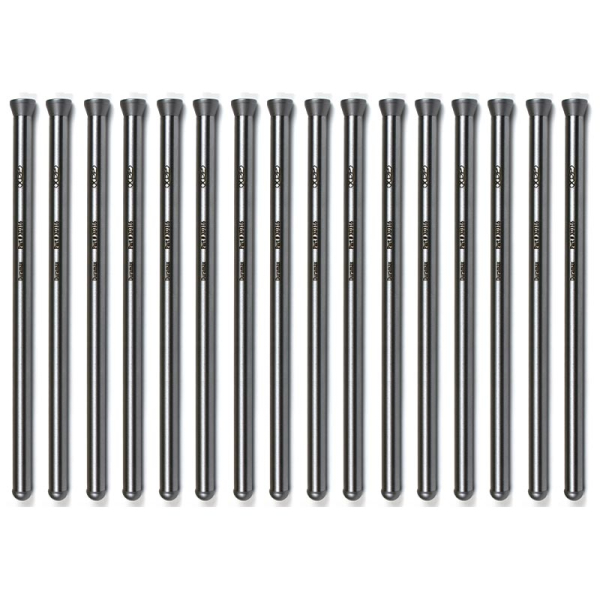

XDP 7/16" Competition & Race Performance Pushrods XD316

2001-2016 GM 6.6L Duramax
Part #: XD316
$306.95
In-Stock
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Restore lost power from the valvetrain in your 2001-2016 GM 6.6L Duramax with the XDP Pushrods 7/16" Competition & Race Performance XD316. The factory pushrods in your Duramax engine are not adequate to handle the stress from your modified engine. Increased cylinder pressures, higher engine RPM, and increased valve spring pressures can quickly max out the material strength of your originally equipped pushrods. In most instances you won't see physical signs of wear, damage, or failure in your pushrods. That does not mean that they are able to handle the excess load from a modified engine. The XDP Competition and Race Performance Pushrods feature a larger 7/16" diameter to give you a drastic strength increase that will support 1000HP+.

Handcrafted in the USA to XDP's stringent specifications, the XDP Competition & Race Pushrods are made from only the highest quality materials. The 7/16" diameter pushrods are build from seamless 4130/4135 chromoly tubing that is cold drawn over a mandrel for maximum rigidity and strength. The CNC machined tips are made from 86L20 bar stock that is core hardened and triple tempered to provide the ultimate in impact and wear resistance. Not only do these extra steps during the manufacturing process give you the best components, they maximize the performance of your valvetrain.

The Competition & Race Pushrods can be also be used in mild and stock builds. While they are intended for competition use and high horsepower, the larger pushrod is perfect for those who want to build their engine stronger, or for those who are building now, to make big power down the road. The 7/16 pushrods can handle 1000HP+ and work perfectly on stock to extreme engines. Sold as a set.

Features:
  • Supports 1000HP+
  • 170,000 PSI Tensile Strength
  • 4130/4135 Chromoly Construction
  • Great For Stock To Extreme Builds
  • 7/16 x .120, 9.430 Overall Length
  • MADE IN THE USA!
Installation Note:
These Pushrods are a direct replacement for the factory pushrods in your engine.
Please consult the factory service manual for removal, installation and valve adjustment instructions.

Warranty Info:
Products manufactured by XDP carry a 1-Year warranty against defects in materials and craftsmanship. The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within the product's kit. Click Here for full warranty policy.

Vehicle Applications

YEAR MAKE ENGINE
2001 Chevy 6.6L LB7 Duramax
2002 Chevy 6.6L LB7 Duramax
2003 Chevy 6.6L LB7 Duramax
2004 Chevy 6.6L LB7 Duramax
2004.5 Chevy 6.6L LLY Duramax
2005 Chevy 6.6L LLY Duramax
2006 Chevy 6.6L LLY/LBZ Duramax
2007 Chevy 6.6L LLY/LBZ Duramax
2007.5 Chevy 6.6L LMM Duramax
2008 Chevy 6.6L LMM Duramax
2009 Chevy 6.6L LMM Duramax
2010 Chevy 6.6L LMM Duramax
2011 Chevy 6.6L LML Duramax
2012 Chevy 6.6L LML Duramax
2013 Chevy 6.6L LML Duramax
2014 Chevy 6.6L LML Duramax
2015 Chevy 6.6L LML Duramax
2016 Chevy 6.6L LML Duramax
2001 GMC 6.6L LB7 Duramax
2002 GMC 6.6L LB7 Duramax
2003 GMC 6.6L LB7 Duramax
2004 GMC 6.6L LB7 Duramax
2004.5 GMC 6.6L LLY Duramax
2005 GMC 6.6L LLY Duramax
2006 GMC 6.6L LLY/LBZ Duramax
2007 GMC 6.6L LLY/LBZ Duramax
2007.5 GMC 6.6L LMM Duramax
2008 GMC 6.6L LMM Duramax
2009 GMC 6.6L LMM Duramax
2010 GMC 6.6L LMM Duramax
2011 GMC 6.6L LML Duramax
2012 GMC 6.6L LML Duramax
2013 GMC 6.6L LML Duramax
2014 GMC 6.6L LML Duramax
2015 GMC 6.6L LML Duramax
2016 GMC 6.6L LML Duramax

Specifications

  • MFG. Number XD316
  • Manufacturer Name XDP
  • Shipping Weight 8.00 lb.
  • Shipping Length 14 in.
  • Shipping Width 8 in.
  • Shipping Height 8 in.
  • Fuel Type Diesel
  • UPC 856217008588
  • Warranty Yes
  • Warranty Info 1 Year / Unlimited Mileage
  • Prop 65 WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Cross Reference # 97240416, 97367163
