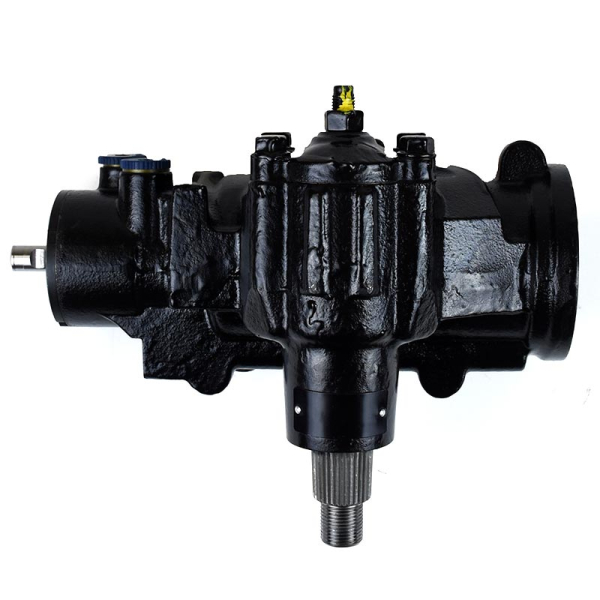

XDP Stock+ Power Steering Gearbox (New) XD746
PART#
XD746 | SKU XD746
★★★★★
Vehicle Fitment For:
2001-2007 GM Silverado/Sierra 2500HD/3500HD 2WD/4WD (3-Groove/33-Spline)
See full application list below
NOTES: 3 Groove 33 Spline Output Shaft
$728.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Replace the worn steering gear in your Chevy Silverado or GMC Sierra 2500HD/3500HD with the XDP Stock+ Power Steering Gearbox (New) XD746. The most common cause of a failing steering gearbox (also known as a
steering gear or steering box) is long-term wear and tear. Over time,
internal components such as the worm gear, sector gear, and bearings can
wear down or get damaged. Other contributing factors may include rough
road conditions, potholes, and fluid leaks.
Specifications:
Input Shaft Diameter: 0.66
Output Shaft Diameter: 1.25
Output Shaft Spline Quantity: 33
Power Assisted: Yes
Pressure Port Thread Size: 18-1.5MM
Return Port Thread Size: 16-1.5MM
Total Turns Lock To Lock: 3.3
Symptoms
of a worn steering gearbox include a leaking sector shaft seal,
excessive play in the steering wheel (loose or unresponsive steering),
or the vehicle wandering or pulling while driving. Other signs to watch
for are difficulty turning, leaking fluid, a stiff steering wheel, and
grinding or clunking noises coming from the steering system. As the
condition worsens, you may also notice that more effort is required to
steer, especially at lower speeds or when maneuvering.
New, Not Remanufactured
Built with 100% new components, the XDP Stock+ Power Steering Gearbox is designed to provide you with a long and dependable service life. Each unit features a bolt-on design and is designed to work with the factory pitman arm and steering shaft.
Built with 100% new components, the XDP Stock+ Power Steering Gearbox is designed to provide you with a long and dependable service life. Each unit features a bolt-on design and is designed to work with the factory pitman arm and steering shaft.
Features:
- Brand New
- No Core Charge
- Direct-Fit Replacement
- Works With Factory Pitman Arm & Steering Shaft
- Every Component Is 100% Completely New, Not Remanufactured
Specifications:
Input Shaft Diameter: 0.66
Output Shaft Diameter: 1.25
Output Shaft Spline Quantity: 33
Power Assisted: Yes
Pressure Port Thread Size: 18-1.5MM
Return Port Thread Size: 16-1.5MM
Total Turns Lock To Lock: 3.3
Manufacturer Warranty*:
2 Year / Unlimited Mileage
2 Year / Unlimited Mileage
Note:
3 Groove
33 Spline Output Shaft
3 Groove
33 Spline Output Shaft
Instructions & Tech Info
Installation Info
Recommended Specialty Tool
Reviews For XDP XD746
Overall Rating
/5
1 Review
Rating Snapshot
1
0
0
0
0
Verified Buyer
No issues.
Matt (Maine) | November 6th, 2025
I bought this as a replacement for my 07’ sierra classic. My old gearbox had over 200,000 miles on it and had a ton of play. After some research I chose to go with the XDP box. After seeing reviews on some of the reman boxes, brand new was the way to go. Box went in and fit perfectly, just as good as original. I would recommend buying a new pitman arm with the box however. Since putting the new box in, the truck has been used hard and put away wet without any issues. Steering feels like brand new. No shakes, binds, or any sort of play.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
I’m wondering if it’s already centered, or if I have to find the center?
You will have to find the center of the XDP Stock+ Power Steering Gearbox (New) XD746 as it might have shifted during shipping. To find the center, rotate the input shaft counterclockwise using a sufficient tool until it no longer turns. (DO NOT use excessive force). Then rotate the input shaft clockwise and count the total turns until it stops. On average, this will be about 3 to 4 turns. Take the total number of turns you have and divide that number by 2. Turn the input shaft the determined number of turns back counterclockwise. For example, if you have 3 and 1/4 total turns, your amount would be 1 and 5/8 turns. You have now centered the steering gear.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For XDP XD746
MPN
XD746
SKU
XD746
ID
152161
Manufacturer Name
XDP
Shipping Weight
36.00 lb.
Shipping Length
16 in.
Shipping Width
11 in.
Shipping Height
8 in.
Fuel Type
Diesel / Gas
E-Code
1
Manufacturer Warranty*
2 Year / Unlimited Mileage
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
11421, 1421, 27-7589, 3005, 36-G0144, 47588, 503-0153, 61-5041, 98176M, N503-0153, 15068759, 19150135, 19330479, 19330500, 26079880, 26099875, 26100337
