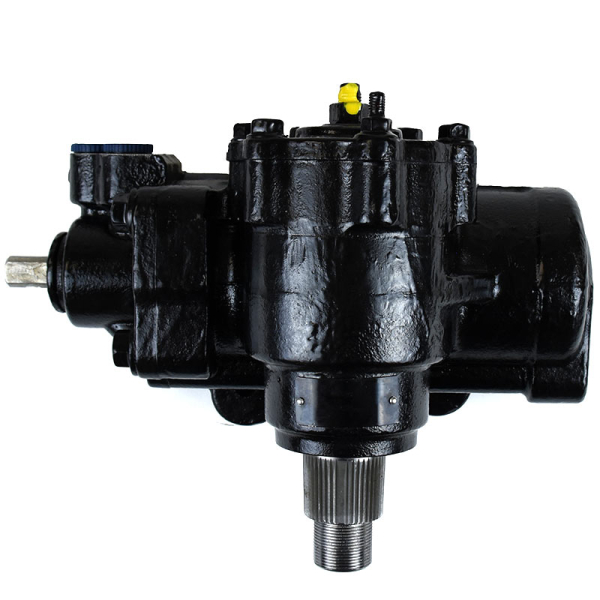

XDP Stock+ Power Steering Gearbox (New) XD752
PART#
XD752 | SKU XD752
★★★★★
Vehicle Fitment For:
2009-2025 Dodge Ram 2500/3500 4WD (Without Adaptive Steering)
See full application list below
NOTES: This steering gear has the 6-bolt top cover. For trucks without adaptive steering (torque overlay steering gear)
$750.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Restore the steering in your Dodge Ram 2500/3500 with the XDP Stock+ Power Steering Gearbox (New) XD752. The most common cause of a failing steering gearbox (also known as a
steering gear or steering box) is long-term wear and tear. Over time,
internal components such as the worm gear, sector gear, and bearings can
wear down or get damaged. Other contributing factors may include rough
road conditions, potholes, and fluid leaks.
Specifications:
Input Shaft Diameter: 0.865
Output Shaft Diameter: 1.77
Power Assisted: Yes
Pressure Port Thread Size: 18-1.5MM
Return Port Thread Size: 16-1.5MM
Total Turns Lock To Lock: 4.25
Symptoms
of a worn steering gearbox include a leaking sector shaft seal,
excessive play in the steering wheel (loose or unresponsive steering),
or the vehicle wandering or pulling while driving. Other signs to watch
for are difficulty turning, leaking fluid, a stiff steering wheel, and
grinding or clunking noises coming from the steering system. As the
condition worsens, you may also notice that more effort is required to
steer, especially at lower speeds or when maneuvering.
New, Not Remanufactured
Built with 100% new components, the XDP Stock+ Power Steering Gearbox is designed to provide you with a long and dependable service life. Each unit features a bolt-on design and is pre-tested for function before shipping to ensure a hassle-free installation.
Built with 100% new components, the XDP Stock+ Power Steering Gearbox is designed to provide you with a long and dependable service life. Each unit features a bolt-on design and is pre-tested for function before shipping to ensure a hassle-free installation.
Performance Tested
Each XDP Steering Box includes a unique test inspection report. These functional tests are designed to check the steering feel & function with the results listed for input torque, maximum effort, returnability, backlash, and total turns, as well as a post-test leak check.
Each XDP Steering Box includes a unique test inspection report. These functional tests are designed to check the steering feel & function with the results listed for input torque, maximum effort, returnability, backlash, and total turns, as well as a post-test leak check.
Features:
- Brand New
- No Core Charge
- Direct-Fit Replacement
- Works With Factory Pitman Arm & Steering Shaft
- Every Component Is 100% Completely New, Not Remanufactured
- Inspection Report Included With Steering Feel & Function Test Results
Specifications:
Input Shaft Diameter: 0.865
Output Shaft Diameter: 1.77
Power Assisted: Yes
Pressure Port Thread Size: 18-1.5MM
Return Port Thread Size: 16-1.5MM
Total Turns Lock To Lock: 4.25
Manufacturer Warranty*:
2 Year / Unlimited Mileage
2 Year / Unlimited Mileage
Note:
This steering gear has the 6-bolt top cover.
For trucks without adaptive steering (torque overlay steering gear)
This steering gear has the 6-bolt top cover.
For trucks without adaptive steering (torque overlay steering gear)
Instructions & Tech Info
Reviews For XDP XD752
Overall Rating
/5
3 Reviews
Rating Snapshot
3
0
0
0
0
Verified Buyer
Love the new steering gearbox
Alan (Kathleen, GA) | April 25th, 2026
The new SGB arrives, and it’s the 6-bolt improved version. Already clocked and loaded with fluid, it was ready to go in. The box is extremely heavy so I had to use a little ingenuity to get it in place and start the mounting bolts, but I got it done. Anyway, steering is nice and tight now. Great work, XDP.
Verified Buyer
Time Will Tell but No Complaints
Davis (NC) | March 16th, 2026
Replaced my OEM Mopar box this weekend with the new XDP. Heard some complaints with the Borgeson, Red Head isn't what it used to be, and there was no way I paying $1k for a PSC, so I took a chance on the XDP. Nice looking unit, bolted up without issue, and functions as it should. Praying it'll last another 10 years like the stock box!
Verified Buyer
So far so good!
Kp (Saint Jo Tx) | December 3rd, 2025
I’ve installed 3 of these boxes and had good luck with them so far. They steer good, have a return to center feel, and very little slop from left to right. Got one on my personal truck and have put about 10k miles on it, and it still feels tight. You have to center the steering shaft as that’s very important.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For XDP XD752
MPN
XD752
SKU
XD752
ID
152167
Manufacturer Name
XDP
Shipping Weight
36.00 lb.
Shipping Length
16 in.
Shipping Width
11 in.
Shipping Height
8 in.
Fuel Type
Diesel / Gas
E-Code
1
Manufacturer Warranty*
2 Year / Unlimited Mileage
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
11606, 1606, 275203, 27-5203, 3012, 36-G0090, 47618, 502-0146, 97-5203GB, 98159M, 98159MN, N502-0146, 5154349AB, 52122315AD, 52122316AD, 52122316AE, 52122316AF, 52122316AG, 68090633AA, 68170214AA, 68170214AB, 68210720AA, 68210720AB, 68210720AC, 68429132AB, 8575536AA, 975203GB, 275203, 19321345, 19321348, R2122316AG
