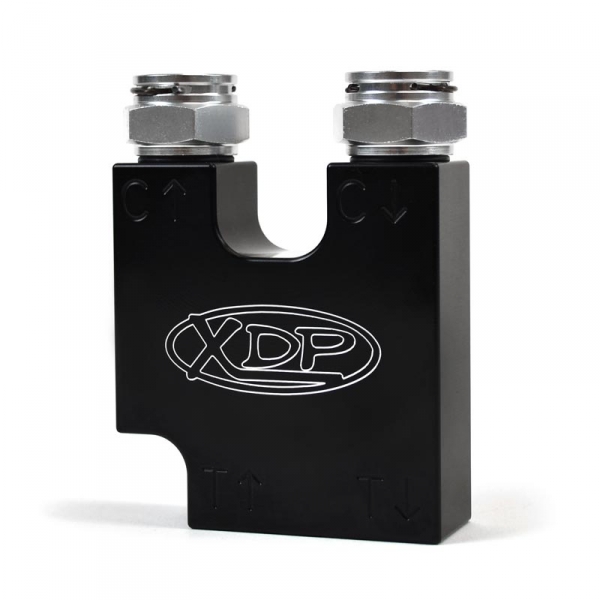

XDP Xtra Cool Transmission Cooler Thermal Bypass Valve Upgrade XD343
PART#
XD343 | SKU XD343
★★★★★
Vehicle Fitment For:
2013-2018 Ram with 6.7L Cummins Engine (68RFE & AS69RC Transmission)
See full application list below
$99.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Replace the problematic factory thermal bypass valve in your 2013-2018 Dodge Ram 6.7L Diesel before it causes catastrophic failure with the XDP Xtra Cool Transmission Cooler Thermal Bypass Valve Upgrade XD343. The OE thermal bypass valve is designed to route bypass the transmission cooler in cold temperatures in order to bring the transmission up to operating temperature faster. Unfortunately, the bimetallic valve commonly fails in the closed position, causing hot transmission fluid to constantly circulate right back into the transmission, never, or barely, passing through the cooler at all. This results in excessive transmission temperatures, potentially damaging your transmission and leaving you stranded on the side of the road with not only an expensive tow bill, but a costly repair bill as well!
XDP's Thermal Bypass Valve Upgrade utilizes an unrestricted straight through design, eliminating the recirculation aspect of the factory TBV. No more having to worry about when the factory part will fail you. By removing the passageway that returns hot fluid back to the transmission, fluid restriction is reduced, lowering overall transmission temperatures. A transmission that runs cool will last longer than one that's always hot. Installation is just like installing the OE part, requiring no cutting or modifications to the factory lines. To prevent leaks before they start, Four (4) new O-rings are supplied as well as two (2) quick connect fittings, making for a complete bolt-on kit for the 68RFE and Aisin AS69RC transmissions.
Features:
- Direct Replacement
- Eliminates Hot Fluid Recirculation
- Cooler Transmission Temperatures
- No Modification Needed For Installation
- Replaces Factory Thermal Bypass Valve
- Fits 68RFE & Aisin AS69RC Transmissions
- Replaces OE Part #: 68186711AA & 68186711AB
Note: Will also fit Hemi trucks equipped with a 545RFE, 65RFE, or 66RFE transmission.
Manufacturer Warranty*:
2 Year / Unlimited Mileage
2 Year / Unlimited Mileage
Instructions & Tech Info
Installation Info
Reviews For XDP XD343
Verified Buyer
68rfe mastectomy pan,xdp thermal bypass,and filter bracket
chris (NC) | August 22nd, 2025
Great parts, well made. Just make sure to check the fittings on the thermal bypass. Mine were hand tight and leaked when I installed it. Tightened them up good and everything is good.
Verified Buyer
Leaks
Landon (Colorado) | October 9th, 2023
Installed before a long road trip. The block worked fine for the first 1k mi but then coming back from the trip it started leaking out the quick connect fittings in middle of nowhere Kansas, took some multi-duty rubber hose and eliminated block completely to get me back home. Going to try and put bigger o rings in and see if that takes care of the leaking issue. Other than that happy with ther performace of the block.
Verified Buyer
Leaks
Cody (Bellefontaine, Ohio) | December 9th, 2022
Fairly good quality, however, like many others mine started leaking out of the quick connects, going to pull apart and put in new o-rings this weekend, not super excited but it's not a big deal.
Verified Buyer
Ram 2500
Celtic (NC) | August 19th, 2022
Just finished a 450 mile trip after the install. Before I would see 172-185 temps from the transmission temp gauge. On this trip the temp hung out around 162-168. Not the dramatic drop I was expecting. The ambient outside temperature never exceeded 83 degrees so not a hot day at all.
Leaking Issue
Gary S. (Plainfield, IL) | July 19th, 2021
Went together easy, but started leaking on the quick disconnect side both fittings. Took it back apart and put thicker o-rings in the fitting and it took care of the leaking. Does lower the temperature to nothing above 132 degrees.
Overall nice part
Dustin (Kentucky) | July 11th, 2021
It’s overall a nice part. First off make sure the supplied fittings are tight before install. The second thing that I think would improve the part is on the inside of the part on the transmission side where the lines with the orings. This is my opinion but that side needs to be tapered like the stock one. Had issues with it leaking. I even had new oem orings. Plus for the price of this part at least it could come with two new orings. But overall it’s a nice piece!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For XDP XD343
MPN
XD343
SKU
XD343
GTIN
856217008793
ID
50183
Manufacturer Name
XDP
Shipping Weight
1.00 lb.
Shipping Length
7 in.
Shipping Width
5 in.
Shipping Height
3 in.
Fuel Type
Diesel / Gas
Manufacturer Warranty*
2 Year / Unlimited Mileage
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
68186711AA, 68186711AB
