Part #: XD255

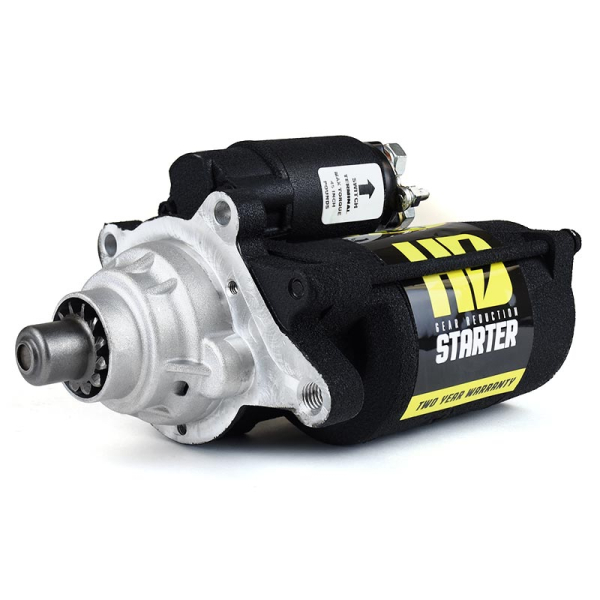

XDP HD Gear Reduction Starter (New) Wrinkle Black XD255
Vehicle Fitment:
2003-2007 Ford 6.0L Powerstroke F-Series Pickups | 2003-2010 Ford 6.0L Powerstroke E-Series Vans | See full application list below
2003-2007 Ford 6.0L Powerstroke F-Series Pickups | 2003-2010 Ford 6.0L Powerstroke E-Series Vans | See full application list below
★★★★★
Buy now, pay later using
during checkout.
during checkout.
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations
Compatible Products
Close
Part #: {{:: (product.sku == undefined) ? product.code : product.sku }}
{{:: product.customfield_values.customfields.short_desc }}
View Details
Description
You can rely on the XDP HD Gear Reduction Starter (New) Wrinkle Black XD255 to get your 2003-2007 Ford 6.0 Powerstroke or 2003-2010 Ford 6.0L Powerstroke E-Series Vans running in the most extreme environments. XDP's HD Gear Reduction Starters are faster, stronger, and more durable than your factory starter. This gives you the ability to turn over even the most aggressive diesel engines.
XDP's HD Gear Reduction Starters feature a motor that is faster, more efficient, and draws less amperage. The Gear Reduction Design produces more torque than a factory unit and provides you with a fast and reliable start-up. Each starter comes pre-tested, ready for installation and features a durable "Wrinkle Black" finish for corrosion resistance and aesthetics.
Features:
- HD Gear Reduction Design
- Wrinkle Black Finish
- Increased Durability
- 1-Year Warranty
Specifications:
- 4.0 HP
- 3.0 KW
- 275 Ft-Lbs. Torque
- 4.75:1 Gear Reduction
Tech Notes:
Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 11V DC. Starter heat shields are not required, but are an excellent idea for heat protection.
Specifications
- MPN XD255
- SKU XD255
- GTIN 857062006538
- ID 34031
- Manufacturer Name XDP
- Shipping Weight 14.00 lb.
- Shipping Length 12 in.
- Shipping Width 9 in.
- Shipping Height 9 in.
- Fuel Type Diesel
- Warranty Info 1 Year / Unlimited Mileage
-
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
- Cross Reference # 3C3Z-11002-AA, 3C3Z11002AA, 3C3U-11000-AB, 3C3U11000AB, 3C3U-11000-AC, 3C3U11000AC, 3C3Z-11002-AARM, 3C3Z11002AARM, 6C2T-11000-AA, 6C2T11000AA, 6C2Z-11002-AA, 6C2Z11002AA, 7C3Z-11002-AA, 7C3Z11002AA, SA904, SA1144, SA931, 88861936, 3362003
- Internal L36R37
