XDP HD Gear Reduction Starter (New) Wrinkle Black XD257
PART#
XD257 | SKU XD257
★★★★★
Vehicle Fitment For:
1994-2002 Dodge with 5.9L Cummins Engine
See full application list below
$299.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description

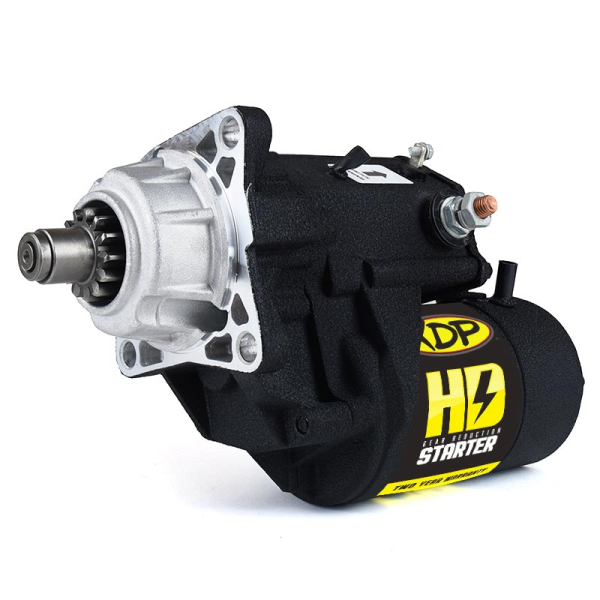

You can rely on the XDP HD Gear Reduction Starter (New) Wrinkle Black XD257 to get your 1994-2002 Dodge 5.9L Diesel running in the most extreme environments. XDP's HD Gear Reduction Starters are fast, strong, and durable, giving you the ability to turn over even the most aggressive diesel engines.
XDP's HD Gear Reduction Starters give you the torque you need for fast, consistent, and reliable starting. Each starter comes pre-tested and ready for installation. For added corrosion resistance and enhanced aesthetics, each unit features a "Wrinkle Black" finish.
Features:
- No Core Charge
- Wrinkle Black Finish
- Direct-Fit Replacement
- HD Gear Reduction Design
Specifications:
- 3.6 HP
- 2.7 KW
- 260 Ft-Lbs. Torque
- 5.50:1 Gear Reduction
Tech Notes:
Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 11V DC. Starter heat shields are not required, but are an excellent idea for heat protection.
Manufacturer Warranty*:
2 Year / Unlimited Mileage
2 Year / Unlimited Mileage
Instructions & Tech Info
Installation Info
Customer Average
0.5 Hour
Recommended Specialty Tool
Related Articles
Reviews For XDP XD257
Verified Buyer
Bad Starter and Worse Customer Service
Chad (OR) | May 18th, 2026
Putting a cummins in a tahoe and put this on. Bad decision. Main motor feed wire completely exposed, insulation dry rotting completely off after 6 months of being bolted onto the truck.. hadn't even been wired in yet. They wouldnt send me a new one, acted like it wasn't their issue, and then wanted me to pay for shipping it back. So I basically pay a fee for their shotty workmanship
Note From Store Owner: Thanks for your feedback, and we apologize that this product did not meet your expectations. Our Technical Support team mentioned that this starter had been sitting out in the elements and not under the hood of a truck, due to its use in an engine swap project that was underway. Unfortunately, it seems likely that direct UV exposure could have damaged the insulation. If there’s anything else we can do in this situation, please reach out to our customer service team using the help desk feature on our website.
Truck starts great on starter #2 - TERRIBLE CUSTOMER SERVICE
James (West Coast) | May 4th, 2026
Terrible customer service. I ordered the first starter through Power Driven Diesel, it arrived, non-working. XDP would not swap it out. I had to submit it into the warranty department and I had to pay shipping to get starter #2.
Note From Store Owner: Thank you for your feedback, and we’re very sorry to hear about the issue you experienced with this starter. Since this part was not directly purchased through XDP, we issued a credit for this part as soon as the as possible to the retailer from which you purchased. If you have not been credited, please reach out to the seller, and we’re confident they will make things right. If they are not being accommodating, please reach out to our customer service team if you need further assistance.
Verified Buyer
Starter
Mm (Massachusetts) | March 22nd, 2026
Easy install and made a crazy difference on how fast the truck started.
Verified Buyer
Great
Dylan (Pa) | March 14th, 2026
Great product. Had some fitment issues the first time due to my truck being a stick, but David was able to get with his team and help me get the adapter kit and this starter, which so far runs well. Only thing I would change is the fitment guide to remind people if they have a manual that they need that adapter/spacer, and put it as a might also need this etc.
Verified Buyer
Works great!
Thomas (Mo) | January 24th, 2025
Starts up ny 1999 5.9 Cummins super quick, no matter what the temperature is outside.
Verified Buyer
XDP HD Starter
Josh (Missouri) | December 5th, 2024
Shipping was great. The starter looked amazing truck starts faster and hopefully this will be the last starter for a while and like the protective coating that is on it very nice.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Do you need to use the spacer ring?
Yes, reinstall the spacer ring with the XDP HD Gear Reduction Starter (New) Wrinkle Black XD257.
Is there a core charge in this starter?
No, the XDP HD Gear Reduction Starter (New) Wrinkle Black XD257 does not have a core charge.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For XDP XD257
MPN
XD257
SKU
XD257
GTIN
857062006552
ID
34033
Manufacturer Name
XDP
Shipping Weight
18.00 lb.
Shipping Length
13 in.
Shipping Width
9 in.
Shipping Height
9 in.
Fuel Type
Diesel
Manufacturer Warranty*
2 Year / Unlimited Mileage
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
3935888
