XDP X220 Series Head Stud Kit XD3014HS

PART# XD3014HS | SKU XD3014HS

Vehicle Fitment For:
1989-1998 Dodge with 5.9L Cummins Engine | See full application list below
$439.95 $417.95
In-Stock
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Purchase the XDP X220 Series Head Stud Kit XD3014HS for your 1989-1998 Dodge 5.9L Diesel 12-Valve engine. Upgrading the OEM head bolts is a must when adding horsepower and torque to your diesel-powered Dodge Ram. The OEM bolts typically can't handle the additional pressure from high-performance applications which can lead to the cylinder head lifting. Upgrading to studs helps keep your cylinder head locked down and avoid head gasket failures. This XDP head stud kit is constructed from high-quality 8740 Chromoly Steel construction that also includes a proprietary element added for upgraded strength and durability. The threads are rolled after heat-treating to deliver optimum fatigue strength. These studs are rated at 225K-233K psi tensile strength and 205K-215K yield strength to ensure a strong hold under higher combustion pressures.

Upgrading from head bolts to studs also allows you to obtain a much more accurate torque reading. A conventional bolt gets twisted as it is tightened, so it's reacting to two different forces at the same time. With a stud the force gets applied to the vertical axis, resulting in a more even clamping force. Furthermore, they provide for easier engine assembly and proper alignment of the cylinder heads every time. Unlike OEM Torque-To-Yield (TTY) bolts which must be replaced after each use, these studs are reusable. Included with the stud kit 12-point nuts and washers. Assembly lubricant sold separately.

Features:

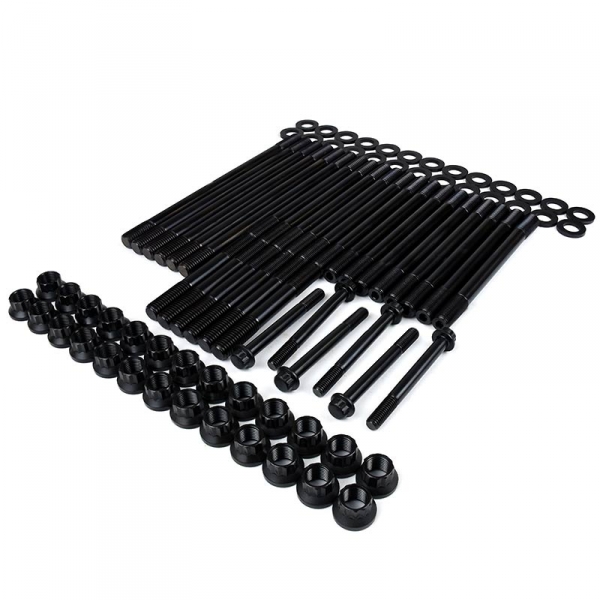

  • Includes Washers & 12 Point Nuts
  • Yield Strength 205K psi - 215K psi
  • Tensile Strength 225K psi - 233K psi
  • Will Not Stretch Like The Factory Studs
  • Thread Has Been Rolled After Heat Treatment
  • High-Strength 8740 Chromoly Steel Construction
  • 10mm Studs Test Out At A Max Load: Over 120KN
  • Studs Are Reusable, Unlike Torque-To-Yield (TTY) Bolts Which Much Be Replaced After Each Use


TECH TIPS:
XDP Thread Cleaning Chasers (Sold Separately):
The XDP Thread Cleaning Chasers XD40125TC (For Head Studs) & XD40128TC (For Rocker Arm Pedestal Bolts) are an excellent add-on that should be used prior to installation of this kit. Using Thread Cleaning Chasers ensures that you are able to properly clean the threads in your engine block before the installation and torquing of the head studs. Clean threads will provide you with accurate torque readings which are critical during your head gasket repair, or engine build.

XDP X-TRA Slick Engine & Fastener Assembly Lubricant (Sold Separately):
The use of XD541 is highly recommended during engine assembly. Apply XDP X-TRA Slick Lubricant to head studs, head bolts, main studs, main bolts, connecting rod bolts, and any other fasteners used during engine assembly. Using a proper assembly lubricant during fastener installation reduces friction and torque pre-load scatter in the torquing sequence, while also helping to prevent thread galling and seizing.

WARRANTY INFO:
2 Year / Unlimited Mileage
Disclaimer: XDP is in no way affiliated with Cummins or any of its subsidiaries or related companies, and that Cummins has not authorized the sale of any of XDP's parts, and has not tested or approved any of XDP’s parts for use in genuine Cummins brand products.

Specifications

  • MPN XD3014HS
  • SKU XD3014HS
  • ID 131423
  • Manufacturer Name XDP
  • Shipping Weight 9.00 lb.
  • Shipping Length 12 in.
  • Shipping Width 9 in.
  • Shipping Height 3 in.
  • Fuel Type Diesel
  • E-Code 1
  • Warranty Info 2 Year / Unlimited Mileage
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Cross Reference # HSK5912
  • Internal L17R20
