Zone Offroad 5" Lift Kit With Nitro Series Shocks ZOND9N

Name: Zone Offroad 5" Lift Kit With Nitro Series Shocks ZOND9N
Brand: Zone Offroad
SKU: XDK572
Price: 825.65 USD
Availability: BackOrder

In This Kit: (2) ZON7750, (2) ZON7761, (1) ZOND1407, (1) ZOND1501, (1) ZOND3501

0 Reviews | Write the First Review

Vehicle Fitment For:

2003-2007 Dodge Ram 2500/3500 4WD (With 4" Axle)

See full application list below

$1,076.27

Ships directly from the manufacturer

An Email Will Be Sent With Expected Shipping Date After Purchase

FREE Delivery by ,

If you order within hr min

This product cannot be shipped to your destination

Not Shipping to ?

Need it faster?

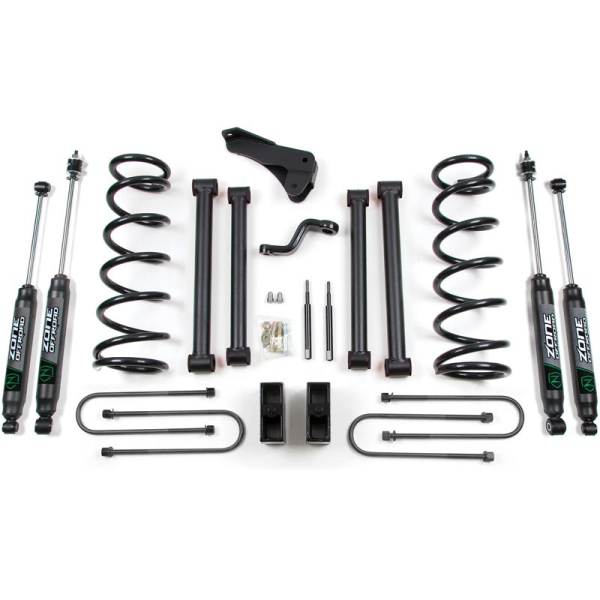

Get enough clearance to mount 36" tires on your Dodge Ram 2500/3500 4WD with the Zone Offroad 5" Lift Kit With Nitro Series Shocks ZOND9N. This kit has everything you need to raise your truck and includes front coil springs, bump stops, heavy-duty upper and lower control arms, heavy-duty front track bar bracket, pitman arm, rear block, and U-bolts.

This kit also includes Nitro Series front and rear shock absorbers. These Nitro shocks offer balanced ride comfort and a good performance value. The heavy-duty twin tube design features a black powder coat finish for added corrosion resistance. They are nitrogen gas charged for fade resistance and are optimized for wheel travel.

Features:

100% Bolt-On Design For Easy Installation
Nitro Series Front & Rear Shock Absorbers
Bump Stop Extensions Properly Limit Up-Travel, Protecting Your Vehicle
Heavy-Duty Front Track Bar Bracket Correctly Positions Front Axle Under Vehicle
Heavy-Duty Upper And Lower Control Arms Improve Strength And Articulation While Correcting Caster
Steering Components Included To Ensure Smooth Post-Installation Operation Of Steering System And Factory-Consistent Vehicle Handling Characteristics

Recommended Tires & Wheels:
36" x 12.5" with 17" x 9" and 5" Backspace

35" x 12.5" with 18" x 9" and 5" Backspace

35" x 12.5" with 20" x 9" and 5" Backspace

*Trimming may be required

Specifications:
Front Lift Method: Coil Spring
Front Lift Height: 5"
Rear Lift Method: Block
Rear Lift Height: 3"
Shocks Included: Yes

Rear Axle Option:
The Dodge Ram truck has 2 different rear axle diameters. This kit is designed for use with a 4" Axle. If your truck has a 3.5" axle, use kit # ZOND5N

Please measure your rear axle and select the appropriate rear kit for your vehicle.

Application Notes:

This kit is not designed for dually models.

Factory wheels fit when paired with factory / original equipment tire size.

Gas models may sit slightly taller than the advertised lift height due to lighter weight of engine.

Kit includes a 3" rear block kit. Measure your truck before ordering to determine the stance of your truck with the lift installed.

Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

If your Truck has had the steering gear box changed and the sector shaft diameter measures ~1-1/2"-1-5/8" you will need ZOND8404 also with your kit.

This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection in configuration.
