USD 270.75
Part #: ATS3019002116

ATS 3019002116 Transmission Pan

1994-2007 Dodge 5.9L Cummins 46/7/8-RH/E
Part #: ATS3019002116
★★★★★ ★★★★★ 4 Reviews
Our Recommendations Compatible Products
Scroll to View More


The ATS 3019002116 Transmission Pan for your 94-07 Dodge 5.9L Cummins adds an additional 5 quarts of fluid capacity over stock. Build from durable aluminum and powdercoated black for superior corrosion resistance this pan will include everything you need for an easy installation.


  • Magnetic 1" Drain Plug
  • Pre-Tapped For Sensor
  • 5 Extra Quarts Of Fluid Over Stock


  • MFG. Number 3019002116
  • Manufacturer Name ATS Diesel
  • Shipping Weight 20.00 lb.
  • Shipping Length 13 in.
  • Shipping Width 7 in.
  • Shipping Height 17 in.
  • Fuel Type Diesel
  • Prop 65 WARNING: Cancer & Reproductive Harm -


★★★★★ ★★★★★
4.5/5 Stars out of 4 Reviews
48re trans pan
(Texas) | August 5th, 2018
used this on my 48re trans rebuild along with duel 2 qt. filter setup I fabed my self along with a manual ball valve on top trans cooler bypass tube and 24 qt of fluid trans runs 165 on 110 degree days
Good Product
(Junction City, KS) | June 15th, 2014
The product was easy to install and keeps temps 15-25 degrees cooler under normal driving conditions. My tranny ran about 200 before instal and now runs 175-180, which are the factory recommended temps. Any up hill , high load, or high ambient temps and it climbs right back to 200 or higher. The transmission pan comes with a plug for the temp probe port, a paper gasket, relocation bracket for the filter and Allen key hardware to bolt the pan on.
It's pretty snazzy
(San Diego, CA) | June 24th, 2015
This thing is HEAVY was really surprised at the size of this pan. Looks good the extra piece of mind knowing the filter has plenty of fluid all the time and the cooler Temps are well worth it. I really liked that it has a plug for the temp unit because I use a test port for my Temps. Very easy install AND NO MORE RED WAVE
Pages 1   2

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Ask XDP a Question about this product (Allow 24-48 hours for reply)

Most Popular Questions

Do i need a longer dip stick for this tranny pan?
View Staff Answer

A longer dipstick is not necessary for the aftermarket transmission pans.

Does this pan come with the extension for the filter and is there a bung for temp sensor?
View Staff Answer
The ATS pan includes a filter spacer and a pre-tapped section for a sensor.

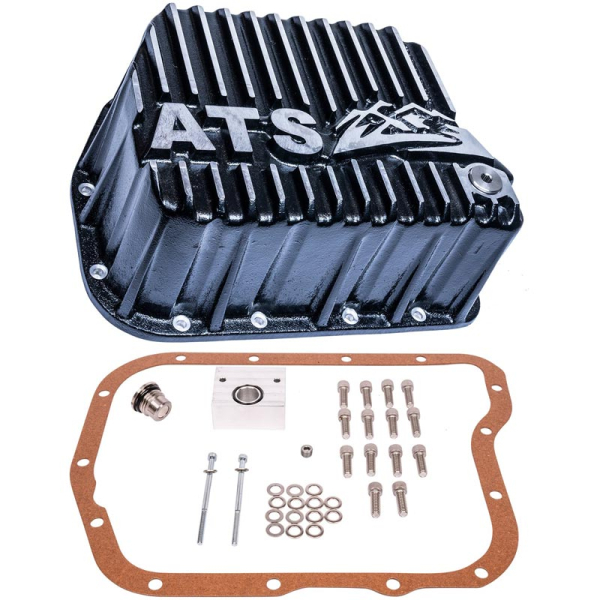

ATS 3019002116 Transmission Pan Bill of Materials:

1. ATS High Capacity Transmission Pan

2. Gasket

3. Transmission Filter Spacer

(1) Transmission Filter Spacer

(2) Torx Mounting Screws

4. Hardware Bag

(14) Stainless Steel Cap Screws (5/16-18 x 7/8)

(14) 5/16 Washers

(1) 1/8 Pipe Plug

5. Magnetic Drain Plug

(1) Drain Plug

(1) O-Ring

Will the trans fluid read over full on the dip stick since the pan allows more to be held?
View Staff Answer

Check fluid level. If level is low, add fluid in increments of 0.25 quarts to bring level to MIN mark on dipstick. Check to see if oil level is equal on both sides of dipstick. If one side is noticeably higher than other, the dipstick has picked up some oil from the dipstick tube. Allow oil to drain down dipstick tube and re-check. Add fluid until the correct level is achieved (fluid should be up to MAX arrow mark on dipstick. (Do not overfill transmission; fluid foaming and shifting problems can result.)

Is this made in the USA ?
View Staff Answer
Yes. The ATS 3019002116 Transmission Pan is made in the USA.
