USD 383.25
Part #: ATS3019002326

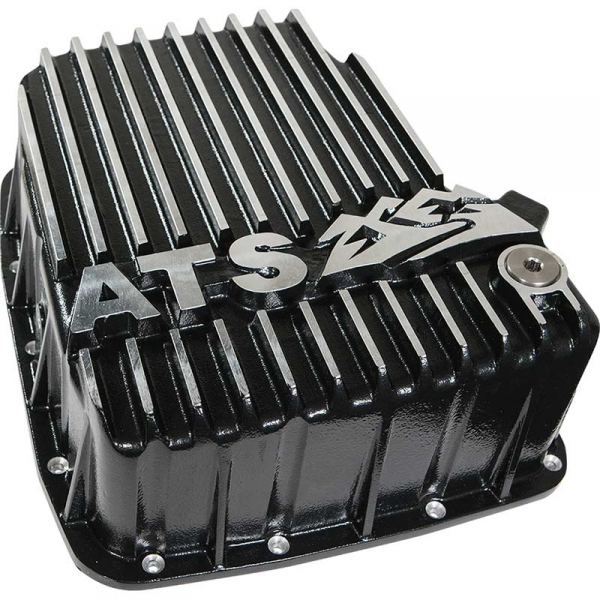

ATS 3019002326 Deep Transmission Pan

Vehicle Fitment:
2007.5-2018 Dodge Ram 6.7L Equipped With 68RFE (See Note) | See full application list below
Part #: ATS3019002326
★★★★★ ★★★★★ 6 Reviews
$383.25
Buy now, pay later using Affirm Logo during checkout.
In-Stock
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?

Complete the job with these highly suggested add-on products.

Product prices marked with an * may require additonal fees, such as a core charge, which will be displayed in the cart.

SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

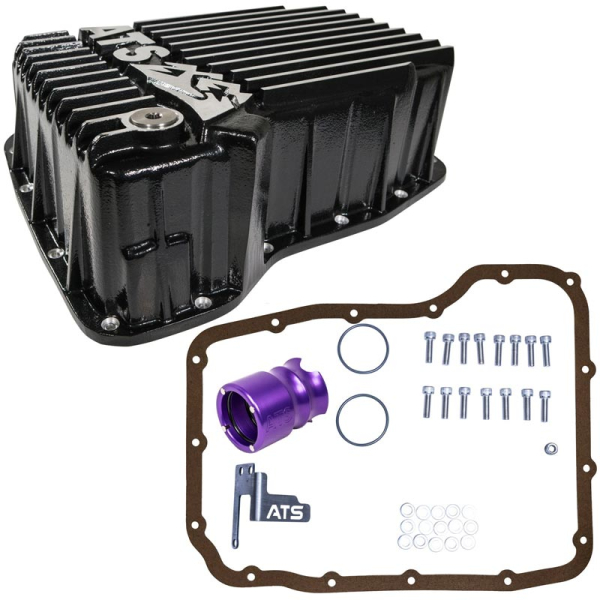

The ATS 3019002326 Deep Transmission Pan for your 2007.5-2018 Dodge 6.7L Diesel adds an additional 4-4.5 quarts of fluid capacity over stock. Built from durable aluminum and powdercoated black for superior corrosion resistance this pan will include everything you need for an easy installation.

Features:
  • Magnetic 1" Drain Plug
  • Pre-Tapped For Sensor
  • 4 Extra Quarts Of Fluid Over Stock (4WD)
  • 4.5 Extra Quarts Of Fluid Over Stock (2WD)
Note: *2013-2018 Models: Due to interference issues, the transmission lines on the new models must be pulled away or modified in order to provide clearance for the installation of this transmission pan. ATS highly recommends the installation of the 3010212326 Billet Aluminum Filter Coupler when installing this pan (see below).

Vehicle Fitment

YEAR MAKE FOR ENGINE SERIES
2007.5 Dodge 6.7L 24V Cummins
2008 Dodge 6.7L 24V Cummins
2009 Dodge 6.7L 24V Cummins
2010 Ram 6.7L 24V Cummins
2010 Dodge 6.7L 24V Cummins
2011 Ram 6.7L 24V Cummins
2011 Dodge 6.7L 24V Cummins
2012 Ram 6.7L 24V Cummins
2012 Dodge 6.7L 24V Cummins
2013 Ram 6.7L 24V Cummins
2013 Dodge 6.7L 24V Cummins
2014 Ram 6.7L 24V Cummins
2014 Dodge 6.7L 24V Cummins
2015 Ram 6.7L 24V Cummins
2015 Dodge 6.7L 24V Cummins
2016 Ram 6.7L 24V Cummins
2016 Dodge 6.7L 24V Cummins
2017 Ram 6.7L 24V Cummins
2017 Dodge 6.7L 24V Cummins
2018 Ram 6.7L 24V Cummins
2018 Dodge 6.7L 24V Cummins

Specifications

  • MFG. Number 301-900-2326
  • Manufacturer Name ATS Diesel
  • Shipping Weight 25.00 lb.
  • Shipping Length 15 in.
  • Shipping Width 8 in.
  • Shipping Height 21 in.
  • Fuel Type Diesel
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L5.00R6.00

Reviews

★★★★★ ★★★★★
4.0/5 Stars out of 6 Reviews
1
1
2
0
3
1
4
0
5
4
Verified Buyer
Had to cut and grind to make it fit :(
1
The pan looks great. Having the increased oil capacity is good too. It wouldn't bolt up though because the oil pickup extender was too long and there were fins on the inside of the pan right where the pickup is located. So I had to cut and grind the pickup extender and remove a large chunk of the fin on the inside of the pan so the pickup extender would fit. That’s a pretty crappy error for such an expensive item.
Verified Buyer
Be Careful
3
Be careful when ordering this part. The listing that shows it will fit 2007.5 to 2018 is incorrect, when the actual part arrived the instructions from ATS indicated it only fits 2007.5 to 2014. It will fit a 2015 Ram 2500 if your willing to grind the inside of the pan to get around the fill tube and redo the cooling lines. The product itself is nice, I would recommend buying it directly from ATS to avoid all the bullshit. I was first told by XDP that it shipped, then I was told it was on back order with no ship date, then after several phone calls to XDP I changed the order to another product, at that point the original part shipped. Nothing but confusion! The reason I gave this product 3 stars is because of fitment issue, other than that it is a quality product and works as it should, I did not buy this pan for looks as it is under the truck, I bought it for function. My Trans temp has dropped another 10 to 15 degrees when towing 12000lb trailer.
Looks great
5
Looks great, haven’t towed my trailer yet to see how much of a difference it will make but I’m hopeful, I bought the billet filter adapter as well to make sure i don’t have issues later on.
Pages 1   2

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

Do you need a filter extender tube on this to get the intake to the bottom of the pan?
View Staff Answer
Answer
The pan includes a billet aluminum filter coupler to extent the pickup on the filter.
Does installing this pan void my factory Warranty?
View Staff Answer
Answer
No - Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) .
Will you have to reroute the factory transmission lines?
View Staff Answer
Answer
No you will not - Click Here for Install Instructions
