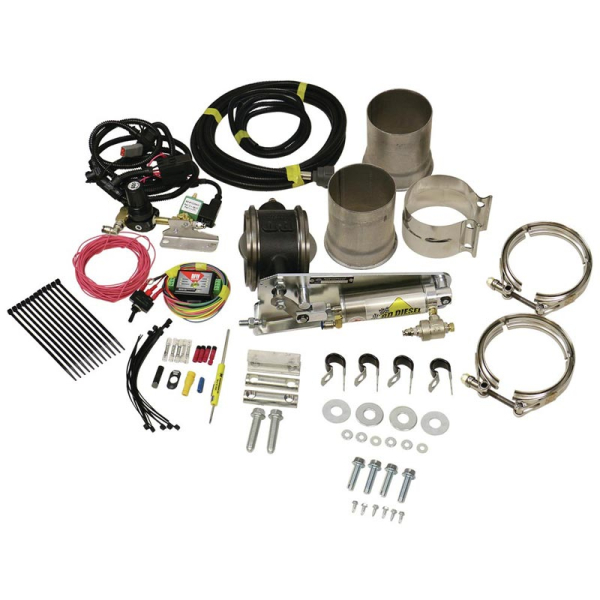

BD Diesel 1028040 4" Remote Mount Exhaust Brake
PART#
1028040 | SKU BD1028040
Vehicle Fitment For:
Universal - For 4" Exhaust Systems
$1,516.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
The BD-Power 1028040 4" Remote Mount Exhaust Brake provides you with additional safety, comfort, and control of your vehicle. Descending grades can be dangerous and tricky, resulting in over heated service and trailer brakes, that leads to brake fade, excessive wear, and costly unwarranted repairs. BD Engine brake has been the industries time proven Variable Regulating Back-Pressure Exhaust Brake.
BD’s rugged cast-iron exhaust brake housing incorporates their exclusive AlumiBronze bushing and positive sealing piston ring, no blind holes for carbon and rust to form, and miles of leak free retarding. The stainless steel butterfly shaft that has proven to stand up under the harsh, high-heat conditions of the exhaust environment, the offset butterfly valve won’t stick, and has been strategically placed in the elbow so that it won’t impede exhaust flow when in the open position. The brake valve is actuated by an air cylinder.
How It Works:
Using BDs exclusive Variable butterfly Technology, providing peak retarding power throughout the engines rpm range unlike some models that rely on a hole/orifice within the butterfly to calibrate back-pressure only in the higher engine RPM.
Where It Mounts:
The universal in-line design mounts in the exhaust system between the engine and muffler, DPF, or cat. BD’s Butterfly is constantly exercising thus reducing the possibility of carbon and rust deposit forming that can cause premature wear and binding which can happen with other brands. Furthermore, no maintenance or lubrication is required providing miles of trouble free service.
Universal Fitment:
Because this brake simply mounts in-line it can be used in a wide variety of applications such as medium duty trucks, motorhomes, diesel pickups and more. Some fabrication may be required for installation.
Features:
- Remote Mount Design
- For 4" Exhaust Systems
- Rugged, Cast-Iron Housing
- For Trucks With On-Board Air
- Stainless Steel Butterfly Shaft
- All Mounting Hardware Provided
- Adjustable Pressure Regulation
- Adjustable Pressure Regulation
- Pneumatic Spring Loaded Cylinder
- BD's Exclusive Alumibronze Bushing
- BD's Exclusive Variable Orifice Technology
- Provides Up To 150 Retarding Horsepower Throughout The Engine's RPM Range
- 24-Month / 24,000 Mile Warranty
Tech Notes:
Torque converter lockup controller not included.
Exhaust back pressure test gauge kit is recommended.
For use on trucks with on-board air. Air compressor is not included.
Brake controls connect to throttle pedal with accelerator pedal position sensor (APPS).
Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes.
Vehicles without accelerator pedal position sensor (APPS) will require 1300420 micro switch and a custom bracket will have to be made.
Manufacturer Warranty*:
1 Year / 12,000 Mile
1 Year / 12,000 Mile
Shipping Restrictions Apply
This product can not be shipped to these states/provinces: CA
This product can not be shipped to these states/provinces: CA
Instructions & Tech Info
Reviews For BD Diesel 1028040
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For BD Diesel 1028040
MPN
1028040
SKU
BD1028040
GTIN
019025019874
ID
34167
Manufacturer Name
BD Diesel
Shipping Weight
25.00 lb.
Shipping Length
20 in.
Shipping Width
15 in.
Shipping Height
9 in.
Fuel Type
Diesel
Manufacturer Warranty*
1 Year / 12,000 Mile
