USD 1178.95
Part #: BD2033135

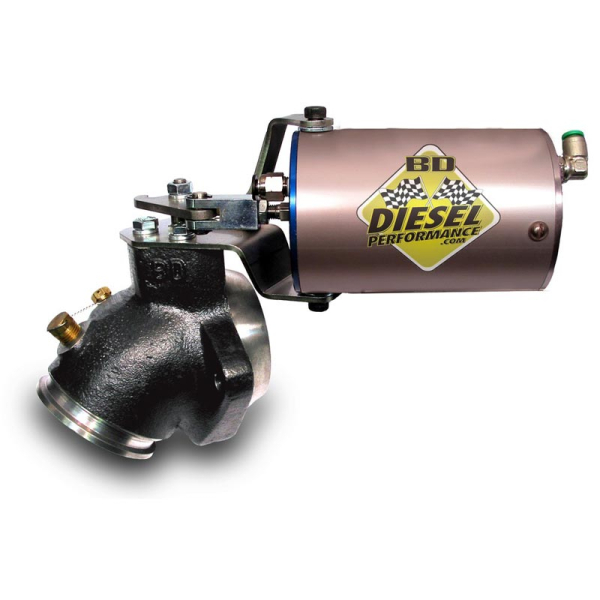

BD-Power 2033135 Turbo Mount Exhaust Brake

1989-1998 Dodge 5.9L Cummins (Vacuum Actuated)
Part #: BD2033135
$1,178.95
In-Stock
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The BD-Power 2033135 Turbo Mount Exhaust Brake for your 1989-1998 Dodge 5.9L Cummins provides you safety and comfort while driving around the country. Descending grades can be a hazardous and tricky situation, resulting in over heated service and trailer brakes, that leads to brake fade, excessive wear, and costly unwarranted repairs. BD Engine brake has been the industries time proven variable regulating back-pressure exhaust brake.

Controlled by a lighted On/Off toggle switch or optional stick-mounted rocker switch for manual transmissions, the BD brake communicates with the engines electronic idle verification board for quick engagement. How it works: Using BDs exclusive Variable butterfly Technology, providing peak retarding power throughout the engines rpm range unlike some models that rely on a hole/orifice within the butterfly to calibrate back-pressure only in the higher engine RPM .

BDs turbo-mount design bolts in place of the factory elbow between the turbo and the exhaust system. The advantage to regulating the butterfly vs. other brands is: The Butterfly is constantly exercising thus reducing the possibility of carbon and rust deposit forming that can cause premature wear and binding. Furthermore no maintenance or lubricating is required providing miles of trouble free service.

The BD Brakes rugged cast-iron housing incorporates BDs exclusive AlumiBronze bushing and positive sealing piston ring, no blind holes for carbon and rust to form, and miles of leak free retarding.Stainless steel butterfly shaft that has proven to stand up under the harsh, high-heat conditions of the exhaust environment, the offset butterfly valve wont stick, and has been strategically placed in the elbow so that it wont impede exhaust flow when in the open position.

Brake valve is actuated by a powerful, three-inch vacuum cylinder. Automatic-equipped trucks require BDs programmable AutoLoc and PressureLoc kits (sold separately) to electronically control torque converter clutch engagement. This addition effectively reduces slippage, resulting in peak retarding performance as well as lower transmission temperatures.

Features:
  • Vacuum Actuated
  • Turbo Mount - For Stock Turbo
  • 60# Valve Springs Required (Sold Separately)
Notes (Please Read For Additional Required Components):
1989-1998 12-valve engines require 1030060 exhaust valve spring kit
1989-1993 turbo mount brakes require 1040050 down pipe kit
1996-1998 "California" spec engines with EGR require 1030030 Kit
Trucks with automatic transmissions are suggested to also install an AutoLoc for electronic controlled lock-converters, or, a lower stall converter for manual or no lock-up converters.
For stock turbos only. If you plan on upgrading please see BD-Power Remote Mount 1037135 Exhaust Brake as it can be used with aftermarket turbos.

Vehicle Applications

YEAR MAKE ENGINE
1989 Dodge 5.9L 12V Cummins
1990 Dodge 5.9L 12V Cummins
1991 Dodge 5.9L 12V Cummins
1992 Dodge 5.9L 12V Cummins
1993 Dodge 5.9L 12V Cummins
1994 Dodge 5.9L 12V Cummins
1995 Dodge 5.9L 12V Cummins
1996 Dodge 5.9L 12V Cummins
1997 Dodge 5.9L 12V Cummins
1998 Dodge 5.9L 12V Cummins

Specifications

  • MFG. Number 2033135
  • Manufacturer Name BD-Power
  • Shipping Weight 13.00 lb.
  • Shipping Length 19 in.
  • Shipping Width 10 in.
  • Shipping Height 8 in.
  • Fuel Type Diesel
  • UPC 019025002746
  • Prop 65 WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Reviews

No Reviews Yet!

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Does heavy duty valve springs have to be installed on a 93 5.9 ?
View Staff Answer
Answer
89-98 Dodge 5.9L 12 Valve Cummins diesels have a light valve spring configuration. To get the most braking power out of your exhaust brake, we recommend installing 60LB upgraded valve springs on the exhaust side of the valvetrain.
