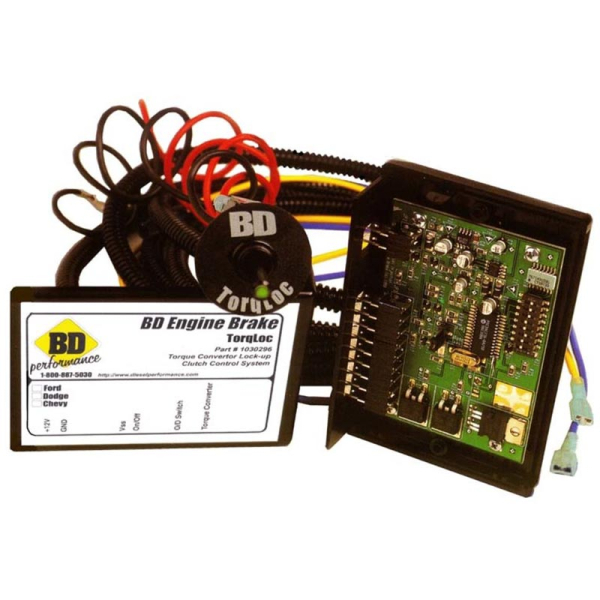

BD Diesel 1030395 TorqLoc Torque Converter Control System
PART#
1030395 | SKU BD1030395
Vehicle Fitment For:
1990-2003 Ford E4OD/4R100 | 1994-2004 Dodge 47RH/47RE/48RE | 1993-2000 Chevy 6.5L Turbo
See full application list below
$446.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Command the torque converter to stay locked, stay unlocked, or revert to OEM settings with the BD TorqLoc. Flip the toggle switch to position one, and the lock-up clutch is engaged, so transmission temperature remains low and the exhaust brake can work with 100% effectiveness (this is a manual setting and should only be selected under light load/light power conditions, such as highway driving).
Position two reverts back to stock function, or can be wired to unlock the torque converter. Position three acts as an AutoLoc by commanding lock-up only when the exhaust brake is engaged - perfect setting for every day driving in all situations.
Additionally, the TorqLoc has an Overdrive inverter option which allows the transmission to start out in Drive which will prevent upshift into the Overdrive gear - great for those who live in city/urban areas. Also, if you have a BD Valve Body with the second gear lock-up capability, the lock-up can be set to hold until 5-10 mph.
Position two reverts back to stock function, or can be wired to unlock the torque converter. Position three acts as an AutoLoc by commanding lock-up only when the exhaust brake is engaged - perfect setting for every day driving in all situations.
Additionally, the TorqLoc has an Overdrive inverter option which allows the transmission to start out in Drive which will prevent upshift into the Overdrive gear - great for those who live in city/urban areas. Also, if you have a BD Valve Body with the second gear lock-up capability, the lock-up can be set to hold until 5-10 mph.
Manufacturer Warranty*:
1 Year
1 Year
Instructions & Tech Info
Reviews For BD Diesel 1030395
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Will this also shut off the exhaust brake when you get down to a certain rpm? Exhaust brake
The BD-POWER TORQLOC TORQUE CONVERTOR CONTROL SYSTEM 1030395 is an electronic device used to command the torque converter to stay locked, stay unlocked, or remain in a stock-like setting. This unit does not control an exhaust brake but is used in conjunction with one to obtain the maximum braking effect.
which positions are for each lock up? I bought a truck already installed with this torque lock up system, the switch has 3 positions, up (green light) middle (orange light) down (red light). Im not sure which position is for which locking system. I run it on the middle (orange light, without turning the overdrive switch off), but not sure if that is the best way to run it.
For a better understanding of how the BD-Power TorqLoc System works, click HERE to view the installation instructions and user manual.
Will this system work if I don’t have an exhaust brake?
Yes, the BD-Power 1030395 TorqLoc Torque Converter Control System will work without an exhaust brake.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For BD Diesel 1030395
MPN
1030395
SKU
BD1030395
GTIN
019025000360
ID
4078
Manufacturer Name
BD Diesel
Shipping Weight
2.00 lb.
Shipping Length
11 in.
Shipping Width
9 in.
Shipping Height
3 in.
Fuel Type
Diesel
Manufacturer Warranty*
1 Year
