BD Diesel

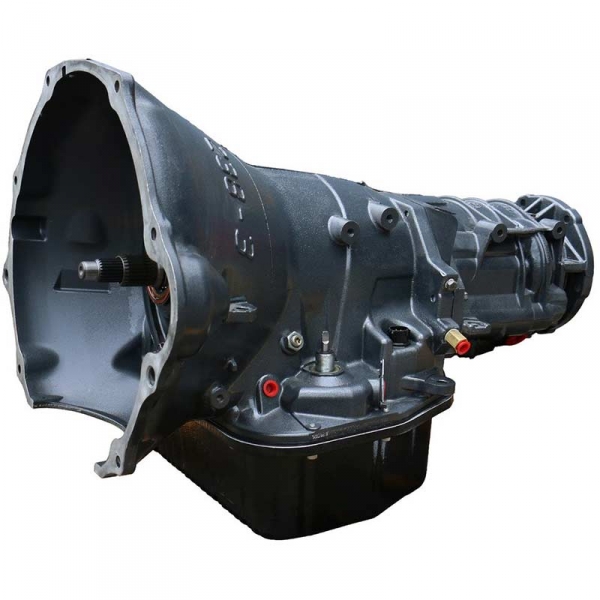

Image 1 for BD Diesel TowMaster 48RE Transmission

BD Diesel TowMaster 48RE Transmission

0 Reviews | Write the First Review

Vehicle Fitment For:
2003-2007 Dodge with 5.9L Cummins Engine

See full application list below
NOTES: No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet. BD torque converter must be installed at
Read More
FROM 4245

Out-of-stock
Estimated ship date: Unavailable
Truck Freight Item(Shipping calculated at checkout)
Tap Shifter
Model Year
Accept Core Charge * VIEW CORE RETURN POLICY *
Add The Essentials
Thumbnail for Anchor Transmission Mount 3066
Anchor Transmission Mount 3066
2003-2005 Dodge Ram 2500/3500 2WD/4WD (Automatic or Manual Trans)
+$35.83
Thumbnail for Anchor Transmission Mount (With Heat Shield) 3673
Anchor Transmission Mount (With Heat Shield) 3673
2006-2018 Dodge Ram 2500/3500 With 5.9L/6.7L Cummins Engine 2WD/4WD (Automatic or Manual Trans) | 2008-2020 Dodge Ram 4500/5500 With 6.7L Cummins Engine 2WD/4WD (Automatic or Manual Trans)
+$71.66
Thumbnail for Anchor Transmission Mount 3376
Anchor Transmission Mount 3376
2006-2022 Dodge Ram 2500/3500 With 5.9L/6.7L Cummins Engine 2WD/4WD (Automatic or Manual Trans) | 2008-2024 Dodge Ram 4500/5500 With 5.9L/6.7L Cummins Engine 2WD/4WD (Automatic or Manual Trans)
+$64.57

Description

The BD-Power TowMaster 48RE Transmission is built to handle 400HP and a drop-in replacement transmission for your Dodge 5.9L Diesel. The stock transmission in your truck is designed to handle the output of the stock engine, but not much else. Enhance the durability of your drivetrain with a BD transmission. All BD-Diesel transmissions come with BD's heavy-duty transmission pan and an auxiliary transmission filter kit for even more protection!

Features:
  • Magnetic Drain Plug
  • Upgraded Valve Body
  • No Shuttle Shifting Problems
  • Upgraded Governor Solenoid
  • High Temp/Energy Raybestos Band
  • Pan Adds 2 Quart Extra Oil Capacity
  • Increased Line Pressure To 190-200psi
  • Every Transmission Is Tested On A Dyno
  • Not Warranted For Race Or Sled Pull Use
  • Increase The Durability Of Your Drivetrain
  • Cooler Line Case Saver In Every Transmission
  • Modified Manual Valve For Lube In All Positions
  • BD Rigid Aluminum Heavy Duty Transmission Pan
  • BD Auxiliary Full Flow Filter Kit For Extra Protection
  • Pan Heat-Dissipating Fins Keep Temperature Down
  • Drilled Intermediate Shaft For Increased Lubrication
  • Works With Stock Shifting And Has Gear Limiting Function
  • Provides Manual Torque Converter Lock-Up Clutch Control
  • Sealed Plug-In Wiring, No Cutting Or Tapping Of Wires Required
  • Stock Thrust Bushings Replaced With Roller Torrington Bearings
  • Upgraded Governor Pressure Transducer With Twice The Burst Pressure Than Stock
  • Includes New Model Shift Lever, BD Control Module, BD Gear Selection Display, & Wiring Harness

Specifications:
Clutch Count: OD 6
Clutch Count: OD Direct 10
Clutch Count: Forward 5
Clutch Count: Direct 6
Manufacturer Warranty*:
3 Year / 150,000 Mile
Note:
No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty

Product Options

PART NUMBER TAP SHIFTER MODEL YEAR
1064192F Without Tap Shifter 03-04 (2WD)
1064194F Without Tap Shifter 03-04 (4WD)
1064232F Without Tap Shifter 05-07 (2WD)
1064234F Without Tap Shifter 05-07 (4WD)
1064234FT With Tap Shifter 05-07 (4WD)

Frequently Bought Together

In-Stock
In-Stock
In-Stock
In-Stock

Reviews

No Reviews Yet!
Write a Review
Write a Review

Review this product and help other XDP customers make informed decisions!

Overall Rating
Your Information

Frequently Asked Questions

What Converter do you recommend with the street and tow 48RE?
BD-Power Torque Converter (Street & Towing) 1070217X[@answer]Give our Diesel Experts a call at 1-888-343-7354 for help finding a programmer that fits your needs.
What kind of power is this transmission capable of holding up to?

As a daily drive/tow vehicle, the transmission will hold 500-600HP as long as the truck is not being beat on at every traffic light. The transmission would hold more power with the addition of the Heavy Duty Flex Plate and Billet Input Shaft.

Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.

More to Consider

Specifications

ID 692
Manufacturer Name BD Diesel
Shipping Weight 400.00 lb.
Shipping Length 24 in.
Shipping Width 45 in.
Shipping Height 27 in.
Fuel Type Diesel
Manufacturer Warranty* 3 Year / 150,000 Mile
