B&M 40295 Hi-Tek Deep Transmission Pan For E4OD/4R100
PART#
40295 | SKU BM40295
Vehicle Fitment For:
1994-2003 Ford 7.3L Powerstroke (Equipped with E4OD/4R100)
See full application list below
NOTES: B&M recommends changing out the filter when installing this pan with a 4WD filter
$359.95
$399.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description

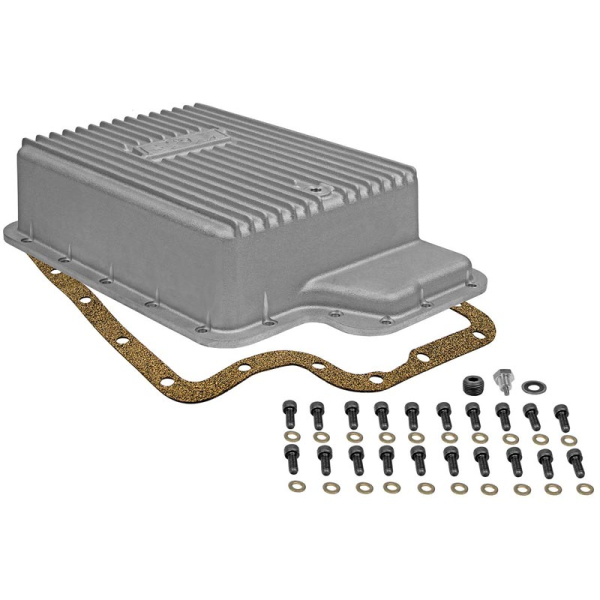

The B&M 40295 Hi-Tek Deep Transmission Pan for E4OD/4R100 is a heavy-duty upgrade designed to enhance cooling performance and durability. By increasing fluid capacity by 3.5 quarts, this pan helps lower operating temperatures, promoting improved efficiency and transmission longevity. Constructed from A356-T6 hardened aluminum, it features thick internal and external cooling fins that maximize heat dissipation while adding strength for demanding applications.
This transmission pan also includes the necessary mounting hardware and gasket for installation. It features a magnetic drain plug to capture metallic contaminants for easy servicing. The 1/8-inch NPT temperature sensor port is included to help easily add a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Each pan includes detailed instructions for an easy DIY installation.
Features:
- Straightforward Installation
- Cast Aluminum Construction
- Includes Temperature Sensor Port
- Additional 3.5-quart Fluid Capacity
- Helps Improve Cooling Performance
- Includes Mounting Hardware & Gasket
- Drain Port with Magnetic Drain Plug for Easy Servicing
Specifications:
Additional Fluid Capacity (qts): 3.5
Capacity: 19.5 QT
Category: Transmission
Color: Aluminum
Drain Plug Included: Yes
Filter Extension Included: No
Filter Included: No
Gasket Included: Yes
Gasket Or Seal Included: Yes
Grade Type: Performance
Instructions Included: Yes
Material: Cast Aluminum
Mounting Hardware: Yes
Mounting Hardware Included: Yes
Oil Pan Gaskets Included: Yes
Overall Depth (in): 4.9
Part Type: Transmission Oil Pan
Product Type: Automatic Transmission Pans
Style: Deep
Temperature Sensor Bung: No
Transmission: 4R100, E4OD
Transmission Filter Included: No
Transmission Type: Automatic
Manufacturer Warranty*:
Limited Lifetime
Limited Lifetime
Note:
B&M recommends changing out the filter when installing this pan with a 4WD filter
Instructions & Tech Info
Reviews For B&M 40295
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Is this pan drilled and tapped for a temperature sensor?
Yes, the B&M 40295 Hi-Tek Deep Transmission Pan For E4OD/4R100 includes a 1/8-inch NPT temperature sensor port for adding a temp gauge for monitoring transmission temperatures.
Does pan use a standard gasket or an O-ring?
This transmission pan uses a standard style gasket and has a flat flange design. It is not machined for an o-ring gasket.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For B&M 40295
MPN
40295
SKU
BM40295
GTIN
019695402952
ID
117122
Manufacturer Name
B&M
Shipping Weight
14.00 lb.
Shipping Length
23 in.
Shipping Width
16 in.
Shipping Height
5 in.
Fuel Type
Diesel
Manufacturer Warranty*
Limited Lifetime
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
103162, F6TZ7A194B, F7TZ7A194CB, F7UZ7A194AB, F81Z7A194BA, SK265805, TP0805, FD1414649
