Part #: CSF3601

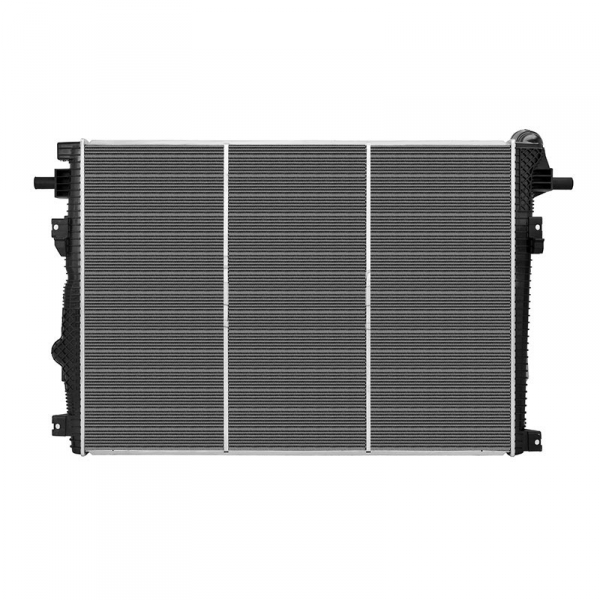

CSF 3601 OEM Style Replacement Primary Radiator

2011-2016 Ford 6.7L Powerstroke
Part #: CSF3601
★★★★★ ★★★★★ 4 Reviews
$245.99
Buy now, pay later using Affirm Logo during checkout.
In-Stock
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The CSF 3601 OEM Style Replacement Primary Radiator from XDP is constructed from high-quality materials to provide you with a durable aftermarket OE-style replacement radiator for your 2011-2016 Ford 6.7L Powerstroke. CSF is an ISO certified cooling system manufacturer with many OEM customers around the world. CSF is also known as an industry leader in automotive cooling for both OE and the performance aftermarket.

Each CSF Radiator is built to OE specifications for a true, "Drop-in Fit" that matches the performance of your factory radiator. CSF tests every radiator design in-house with their state-of-the-art testing facility that includes wind tunnel, burst pressure testing, vibration testing, thermal cycle, and salt spray corrosion testing. When CSF identifies a weakness in either the OEM design or performance, a stronger solution is implemented for class-leading performance and durability. Individually pressure tested and serial # certified. This radiator comes complete with a 1-year warranty.

Features:
Primary Radiator
OEM Replacement
Drop-In Installation
Includes 1-Year Warranty

Specifications:
Bottom Hose Fitting (in): 2 1/4 Right
Top Hose Fitting (in): 2 1/4 Left
Core Length (in): 38 3/8
Core Material: Aluminum
Core Thickness (in): 1 5/8
Core Width (in): 27 11/16
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 28 3/8
Inlet Width (in): 2 3/16
No. Of Rows: 2
Outlet Length (in): 28 3/8
Outlet Width (in): 2 3/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic Tanks & Aluminum Core; With Quick-Connect Outlet Pipe.

Vehicle Applications

YEAR MAKE ENGINE
2011 Ford 6.7L Powerstroke
2012 Ford 6.7L Powerstroke
2013 Ford 6.7L Powerstroke
2014 Ford 6.7L Powerstroke
2015 Ford 6.7L Powerstroke
2016 Ford 6.7L Powerstroke

Specifications

  • MFG. Number 3601
  • Manufacturer Name CSF
  • Shipping Weight 50.00 lb.
  • Shipping Length 51 in.
  • Shipping Width 33 in.
  • Shipping Height 9 in.
  • Fuel Type Diesel
  • UPC 710353036013
  • Warranty Yes
  • Warranty Info 1 Year
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Cross Reference # 13230, BC3Z 8005E, BC3Z 8005 K, CU13230, FO3010335
  • Internal L9.00R5.00

Reviews

★★★★★ ★★★★★
5.0/5 Stars out of 4 Reviews
1
0
2
0
3
0
4
0
5
4
Verified Buyer
So far so good! #1834811
5
I ordered this primary and the matching secondary to replace an OEM ford secondary and a mishimoto primary. I was unsure which one was leaking, but I had the infamous drivers side drip on my 2012. Figured if I was that far into it, might as well replace them both. Shipped fast, came well packaged, and fixed my leaky mishimoto. My only complaint is, there are no push pin holes to mount the hood seal, and the lower air deflector. Other than that, seems like a solid unit.
Verified Buyer
Order#1806359 Absolutely perfect!
5
This was the best online transaction I've ever had. Part fit and functions properly and shipping was fast. I HIGHLY RECOMMEND this company. My go-to for all my parts needs in the future.
Verified Buyer
Install
5
Great fit, just be sure you set the radiator back on the alignment pins in front of the fan shroud. Most install videos leave that part out. (#1752102)
