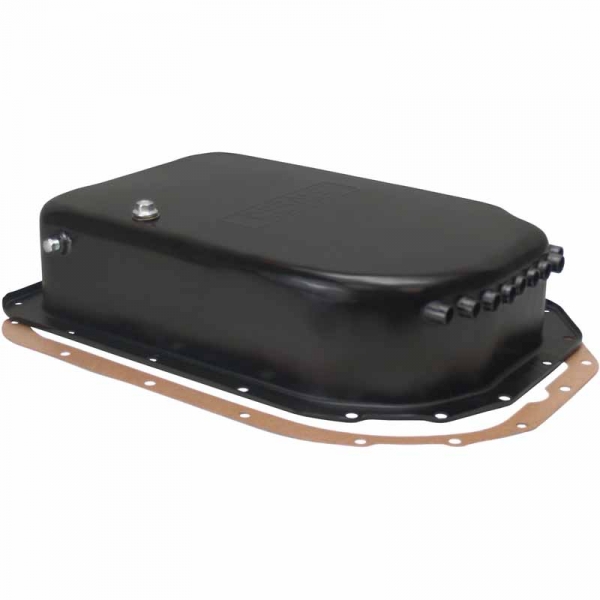

Derale 14207 Transmission Cooling Pan (4L80/4L80E)

The Derale 14207 Transmission Cooling Pan (4L80/4L80E) from XDP uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's heavy duty 4L80E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. Derale includes a powerful magnetic drain plug and rubber/steel reusable washer. In addition, a 1/8" NPT temperature sender bung is located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Features:

• 1/8" NPT Temperature Sender Port
• Two Stage Heat Dissipating Black Finish
• Reduces Fluid Temperatures Up To 50F
• Increases Fluid Capacity By 4 Qts. 16 Oz.
• Heavy-Gauge Stamped Steel Construction
• Uses OEM Filter With No Filter Extension Required
• Patented Turbulator Cooling Tubes Add Heat Transfer Capability
• Magnetic Drain Plug With Increased Magnetic Strength And Rubber/Steel Washer

Specifications:
Pan Dimensions: 19" Length X 13 3/8" Width X 4 1/4" Height
Drain Plug Adds 1/4" To Height
Tube Depth: 2-3/4"
Temperature Bung Size: 1/8" NPT
Drain Plug Size 1/2"-20
Replacement Drain Plug Derale 14000
