Edge Products 31400 Juice with Attitude CS2 Monitor

The Edge Products 31400 Juice with Attitude CS2 Monitor for your 1998.5-2000 Dodge 5.9L Cummins offers you power, performance, efficiency and functionality all in one easy-to-use package. The CS2 offers the same great features and benefits offered by its predecessor, the CS, all while adding a sleek, new exterior and cutting-edge, high-resolution screen. Along with a whole host of additional features! Complete with MyStyle and Edges Maintenance Manager Software.

Power Levels
The Juice with Attitude CS2 includes 5 pre-loaded adjustable on-the-fly power levels. This means you can switch from any of the 5 power levels with just the touch of a button! There's no need to turn your truck off to change tuning with the Juice With Attitude CS2. With tunes designed for Performance, Tow and Economy, you'll have an option for whatever you're doing with your 5.9L Cummins.
Level 1: 40 HP & 150 lb-ft
Level 2: 60 HP & 200 lb-ft
Level 3: 80 HP & 250 lb-ft
Level 4: 100 HP & 300 lb-ft
Level 5: 120 HP & 350 lb-ft

Gauges & Monitoring

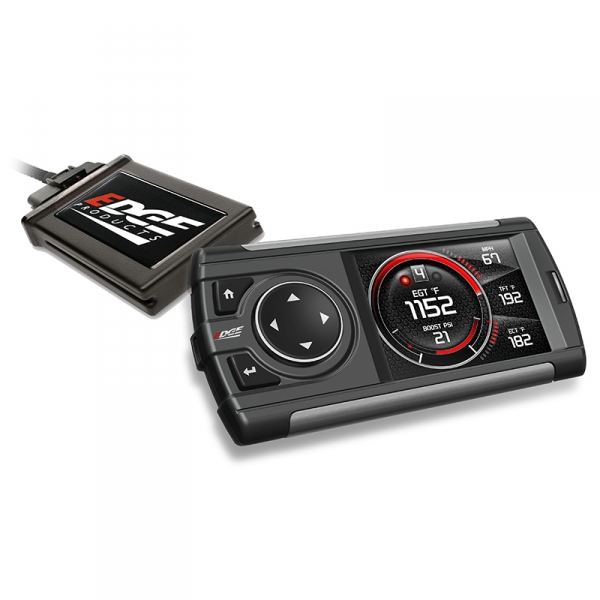

The Juice with Attitude CS2 features a sleek 2.4" Color Screen which makes it a complete, comprehensive gauge package that stays mounted in the cab of the truck and displays up to eight parameters at a time! Monitor vital engine data, such as EGT's, engine RPM, transmission fluid temperature and engine oil temperature to name a few. 1998.5-2000 Dodge 5.9L Cummins Parameters Monitored: Backdown %, Voltage, EGT (exhaust gas temp), Engine Coolant Temp, Engine Fuel Pressure (pressure of the fuel lift pump), Fuel Temperature (measured in the VP44 injector pump), Intake Air Temp, Engine Load % (only on later models), Module Temperature (internal temperature of the module), RPM, Speed MPH, Throttle %, Transmission Temp, Turbo Boost Pressure, Oil Pressure

Mounting Options
Each Edge Products Juice with Attitude CS2 includes a heavy-duty universal suction cup mount for easy installation. Also available separately, are custom molded dash pods that provide an enhanced factory-like look. For those that prefer pillar mounting, you can also use the Gauge Pillar Adapter to mount the CS2 Monitor in a pillar-mounted gauge pod of your choice (adapters, dash pods and pillar pods sold separately. Dash pods coming soon).

Performance Testing, Alerts & Records
Performance and records such as HP & Torque, 0-60 and quarter-mile times; quarter-mile MPH; peak engine temperature, RPM, speed and transmission temperature values. Sounds audible alerts when user-defined values are reached and automatically records the highest value of key parameters.

Expandable
Compatible with optional Edge Accessory System (EAS) to allow users to connect to multiple, additional accessories. Expandable options include turbo timer, universal pressure and temperature sensors. (EAS system and sensors sold separately) Safety Features
The Juice with Attitude CS2 includes automatic defueling to prevent excessive EGT & Boost levels. Along with user-adjustable audible alert settings, you can drive safely with confidence while knowing the Juice with Attitude is actively monitoring the parameters on your truck.

MyStyle Software
MyStyle software allows you the ability to choose from a variety of Edge custom backgrounds, or simply upload an image of your choice. Size, crop and save to your CS2 unit for the ultimate in customizability. Internet updates require Windows PC.

Features:

• 5 On-the-Fly Adjustable Power Levels
• Maintenance Manager Application Increases Performance, Efficiency & Driveability
• Full-Color, High-Res, 2.4" Button-Controlled Screen
• MyStyle Software For Customization Internet Updateable (Attitude Monitor Only)
• Built-In Light Sensitivity Meter To Dim Screen As Light Decreases
• Displays True Speed On Monitor
• Read & Clear Diagnostic Trouble Codes
