USD 512.95
Part #: EP85300

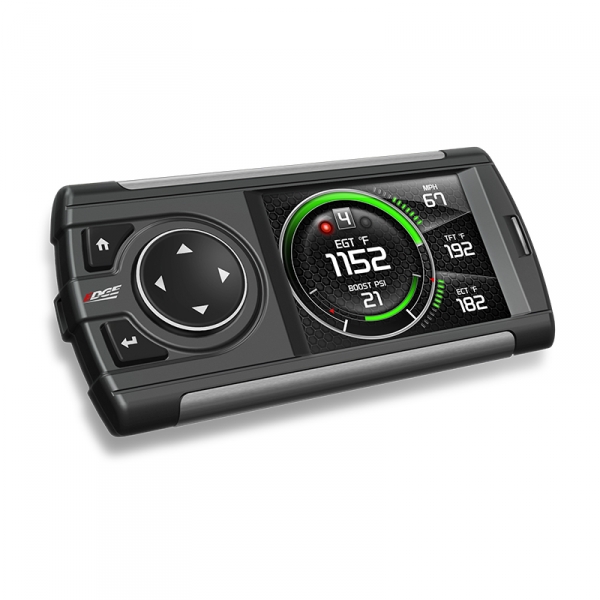

Edge Products 85300 Evolution CS2

Vehicle Fitment:
2001-2016 GM 6.6L Duramax LB7/LLY/LBZ/LMM/LML Diesel |1994-2019 Ford 7.3L/6.0L/67.L Powerstroke Diesel | 2003-2012 Dodge 5.9L/6.7L Diesel* | See full application list below
Part #: EP85300
★★★★★ ★★★★★ 5 Reviews
$512.95
Buy now, pay later using Affirm Logo during checkout.
In-Stock
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
ADD A 1-YEAR XDP Replacement Guarantee! - *VIEW DETAILS*
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The Edge Products 85300 Evolution CS2 for your diesel pickup is an all-in-one performance programmer and gauge display. From the company that was first to introduce the in-cab digital gauge tuning device, the Evolution CS2 offers the same great features and benefits offered by its predecessor, the CS, all while adding a sleek, new exterior and cutting-edge, high-resolution screen. The Evolution CS2 tuner not only re-programs the vehicle to improve power and performance, but also doubles as a gauge-display device providing vital information about the performance of the newly tuned vehicle and can also act as scan tools for reading and clearing trouble codes. The CS2 connects directly into the vehicles computer via the OBDII port and can read and display up to 8 parameters at a time from a list of dozens of engine parameters! The CS2 display can be easily changed and configured to allow each user to view the data most important to them. Safety features with user-defined audible alerts as well as performance test features such as 0-60 and quarter mile times are included, along with light sensitivity meters that automatically adjust screen brightness for improved viewing for both day and night driving. The CS2 model features a full-color high resolution 2.4- inch, button-controlled screen and is designed to work in conjunction with the Edge Accessory System (EAS) which allows users to connect multiple future accessories to the product such as additional exhaust gas temperature (EGT) sensors with many more accessories!


Features:
  • 8 Different Pre-Loaded Backgrounds
  • Displays And Clears Diagnostic Trouble Codes
  • Displays Alerts And Records Such As RPM,MPH, and EGT
  • Internet Updateable (Cable Included, Windows PC required)
  • Multiple Power Levels For Mileage, Towing, and Performance
  • Full-Color, High Resolution, Button-Controlled 2.4 Inch Screen
  • Displays Up To 8 Parameters At A Time In Digital Display Mode
  • Compatible With Optional EGT Pyrometer For Engine Protection
  • Includes Light Sensitivity Meter To Dim Screen As Ambient Light Decreases
  • Monitors And Displays Diesel Particulate Filter (DPF) Status On 2007+ Emission Diesel Trucks
  • Includes Heavy-Duty Suction Cup Mount. For Additional Mounting Options See 98004 Adapter Below
  • 0-60 and Quarter-Mile Performance Test With Drag-Strap, Christmas-Tree Lighting.(Graphs Speed And Time On Screen)
  • Compatible With Optional Edge Accessory System (EAS) To Allow Users To Connect Multiple, Additional Accessories



Applications
1994-2019 Ford Powerstroke 7.3L/6.0L/6.4L/6.7L/3.0L
2001-2016 Chevrolet/GMC Duramax 6.6L LB7/LLY/LBZ/LMM/LML
2003-2012 Dodge Ram 5.9L/6.7L Engine

Power Levels
2001-2016 GM 6.6L Duramax LB7 / LLY / LBZ / LMM / LML:
2001-2005 LB7/LLY Duramax Up To: 100HP & 210 Ft-lbs.
2006-2007 LLY/LBZ Duramax Up To: 100HP & 220 Ft-lbs.
2007.5-2010 LMM Duramax Up To: 85HP & 200 ft-lbs.
2011-2015 LML Duramax Up To: 81HP & 170 ft-lbs.
2016 LML Duramax Up To: 115HP & 220 ft-lbs.

1994-2019 Ford Powerstroke 7.3L / 6.0L / 6.4L / 6.7L / 3.0L:
1994-1997 Ford 7.3L Powerstroke Up To: 80HP & 180 Ft-Lbs.
1999-2010 Ford 7.3L/6.0L/6.4L Powerstroke Up to: 100HP & 200FT-LBS
2011-2014 Ford 6.7L Powerstroke Up To: 80HP & 180 Ft-Lbs.
2015-2016 Ford 6.7L Powerstroke Up To: 106HP & 315 Ft-Lbs.
2017-2019 Ford 6.7L Powerstroke Up to: 120HP & 220 Ft-Lbs.
2018-2019 Ford F-150 3.0L Powerstroke Up to: 53 hp & 128 ft-lb tq

2003-2012 Dodge 5.9L / 6.7L Diesel:
2003-2004 Dodge 5.9L Up To: 120HP & 340 ft-lbs.
2004.5-2005 Dodge 5.9L Up To: 175HP & 430 ft-lbs.
2006-2007 Dodge 5.9L Up To: 175HP & 470 ft-lbs.
2007.5-2009 Dodge 6.7L Up To: 125HP & 340 ft-lbs.
2010-2012 Ram 6.7L Up To: 95HP & 270 ft-lbs.
Shipping Restrictions Apply shipping restriction icon This product can not be shipped to these states: CA

Note:
*Will not fit 2011 Dodge Ram Trucks Equipped With 6.7L Diesel & Manual Trans
Results and feature set may vary based on vehicle make, model, and aftermarket upgrades.

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
2003 Chevrolet Silverado 2500
2001 Chevrolet Silverado 2500 HD 6.6
2002 Chevrolet Silverado 2500 HD 6.6
2003 Chevrolet Silverado 2500 HD 6.6
2004 Chevrolet Silverado 2500 HD 6.6
2005 Chevrolet Silverado 2500 HD 6.6
2006 Chevrolet Silverado 2500 HD 6.6
2007 Chevrolet Silverado 2500 HD 6.6
2008 Chevrolet Silverado 2500 HD 6.6
2009 Chevrolet Silverado 2500 HD 6.6
2009 Chevrolet Silverado 2500 HD
2010 Chevrolet Silverado 2500 HD 6.6
2010 Chevrolet Silverado 2500 HD
2011 Chevrolet Silverado 2500 HD 6.6
2012 Chevrolet Silverado 2500 HD 6.6
2013 Chevrolet Silverado 2500 HD 6.6
2014 Chevrolet Silverado 2500 HD 6.6
2015 Chevrolet Silverado 2500 HD 6.6
2016 Chevrolet Silverado 2500 HD 6.6
2001 Chevrolet Silverado 3500 6.6
2002 Chevrolet Silverado 3500 6.6
2003 Chevrolet Silverado 3500 6.6
2004 Chevrolet Silverado 3500 6.6
2005 Chevrolet Silverado 3500 6.6
2006 Chevrolet Silverado 3500 6.6
2007 Chevrolet Silverado 3500 HD 6.6
2008 Chevrolet Silverado 3500 HD 6.6
2009 Chevrolet Silverado 3500 HD 6.6
2010 Chevrolet Silverado 3500 HD 6.6
2011 Chevrolet Silverado 3500 HD 6.6
2012 Chevrolet Silverado 3500 HD 6.6
2013 Chevrolet Silverado 3500 HD 6.6
2014 Chevrolet Silverado 3500 HD 6.6
2015 Chevrolet Silverado 3500 HD 6.6
2016 Chevrolet Silverado 3500 HD 6.6
2003 Dodge Ram 2500 5.9
2004 Dodge Ram 2500 5.9
2005 Dodge Ram 2500 5.9
2006 Dodge Ram 2500 5.9
2007 Dodge Ram 2500 5.9
2007 Dodge Ram 2500 6.7
2008 Dodge Ram 2500 6.7
2009 Dodge Ram 2500 6.7
2010 Dodge Ram 2500 6.7
2003 Dodge Ram 3500 5.9
2004 Dodge Ram 3500 5.9
2005 Dodge Ram 3500 5.9
2006 Dodge Ram 3500 5.9
2007 Dodge Ram 3500 5.9
2007 Dodge Ram 3500 6.7
2008 Dodge Ram 3500 6.7
2009 Dodge Ram 3500 6.7
2010 Dodge Ram 3500 6.7
2000 Ford Excursion 7.3
2001 Ford Excursion 7.3
2002 Ford Excursion 7.3
2003 Ford Excursion 7.3
2003 Ford Excursion
2004 Ford Excursion
2005 Ford Excursion
2018 Ford F-150 3.0
1994 Ford F-250 7.3
1995 Ford F-250 7.3
1996 Ford F-250 7.3
1997 Ford F-250 HD 7.3
1999 Ford F-250 Super Duty 7.3
2000 Ford F-250 Super Duty 7.3
2001 Ford F-250 Super Duty 7.3
2002 Ford F-250 Super Duty 7.3
2003 Ford F-250 Super Duty 7.3
2003 Ford F-250 Super Duty
2004 Ford F-250 Super Duty
2005 Ford F-250 Super Duty
2006 Ford F-250 Super Duty
2007 Ford F-250 Super Duty
2008 Ford F-250 Super Duty 6.4
2009 Ford F-250 Super Duty 6.4
2010 Ford F-250 Super Duty 6.4
2011 Ford F-250 Super Duty 6.7
2012 Ford F-250 Super Duty 6.7
2013 Ford F-250 Super Duty 6.7
2014 Ford F-250 Super Duty 6.7
2015 Ford F-250 Super Duty 6.7
2016 Ford F-250 Super Duty 6.7
2017 Ford F-250 Super Duty 6.7
2018 Ford F-250 Super Duty 6.7
2019 Ford F-250 Super Duty 6.7
1994 Ford F-350 7.3
1995 Ford F-350 7.3
1996 Ford F-350 7.3
1997 Ford F-350 7.3
1999 Ford F-350 Super Duty 7.3
2000 Ford F-350 Super Duty 7.3
2001 Ford F-350 Super Duty 7.3
2002 Ford F-350 Super Duty 7.3
2003 Ford F-350 Super Duty 7.3
2003 Ford F-350 Super Duty
2004 Ford F-350 Super Duty
2005 Ford F-350 Super Duty
2006 Ford F-350 Super Duty
2007 Ford F-350 Super Duty
2008 Ford F-350 Super Duty 6.4
2009 Ford F-350 Super Duty 6.4
2010 Ford F-350 Super Duty 6.4
2011 Ford F-350 Super Duty 6.7
2012 Ford F-350 Super Duty 6.7
2013 Ford F-350 Super Duty 6.7
2014 Ford F-350 Super Duty 6.7
2015 Ford F-350 Super Duty 6.7
2016 Ford F-350 Super Duty 6.7
2017 Ford F-350 Super Duty 6.7
2018 Ford F-350 Super Duty 6.7
2019 Ford F-350 Super Duty 6.7
2004 GMC Sierra 2500
2001 GMC Sierra 2500 HD 6.6
2002 GMC Sierra 2500 HD 6.6
2003 GMC Sierra 2500 HD 6.6
2004 GMC Sierra 2500 HD 6.6
2005 GMC Sierra 2500 HD 6.6
2006 GMC Sierra 2500 HD 6.6
2007 GMC Sierra 2500 HD 6.6
2008 GMC Sierra 2500 HD 6.6
2009 GMC Sierra 2500 HD 6.6
2010 GMC Sierra 2500 HD 6.6
2011 GMC Sierra 2500 HD 6.6
2012 GMC Sierra 2500 HD 6.6
2013 GMC Sierra 2500 HD 6.6
2014 GMC Sierra 2500 HD 6.6
2015 GMC Sierra 2500 HD 6.6
2016 GMC Sierra 2500 HD 6.6
2001 GMC Sierra 3500 6.6
2001 GMC Sierra 3500 8.1
2002 GMC Sierra 3500 6.6
2002 GMC Sierra 3500 8.1
2003 GMC Sierra 3500 6.6
2003 GMC Sierra 3500 8.1
2004 GMC Sierra 3500 6.6
2005 GMC Sierra 3500 6.6
2006 GMC Sierra 3500 6.6
2007 GMC Sierra 3500 HD 6.6
2008 GMC Sierra 3500 HD 6.6
2009 GMC Sierra 3500 HD 6.6
2010 GMC Sierra 3500 HD 6.6
2011 GMC Sierra 3500 HD 6.6
2012 GMC Sierra 3500 HD 6.6
2013 GMC Sierra 3500 HD 6.6
2014 GMC Sierra 3500 HD 6.6
2015 GMC Sierra 3500 HD 6.6
2016 GMC Sierra 3500 HD 6.6
2010 Ram 2500 6.7
2011 Ram 2500 6.7
2012 Ram 2500 6.7
2011 Ram 3500 6.7
2012 Ram 3500 6.7

Specifications

  • MPN 85300
  • SKU EP85300
  • GTIN 810115011736
  • ID 26771
  • Manufacturer Name Edge Products
  • Shipping Weight 2.00 lb.
  • Shipping Length 10 in.
  • Shipping Width 7 in.
  • Shipping Height 4 in.
  • Fuel Type Diesel
  • Warranty Info 1 Year
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L8R7

Reviews

★★★★★ ★★★★★
4.0/5 Stars out of 5 Reviews
1
1
2
0
3
0
4
1
5
3
Verified Buyer
Great Little Tuner
4
This little thing is great! Setup was easy and it looks clean on the dashboard. I’ve only used the Tow and Economy tunes as I have a bone stock 2005 Dodge 5.9 Diesel but it already woke the truck up quite a bit. The only slight gripe I have about it is that I can’t seem to adjust the tire size according to the instruction manual. That option is just not showing up on my device. It also seems like mine didn’t come with the injector balance test like it says in the manual either. Other than those 2 things tho, it’s a great little tuner!
Over priced
1
Not worth the money
Verified Buyer
1431316
5
Making a worlds difference to my 1999 7.3. No more I think can I think can trying to climb hills.
Pages 1   2

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

95 Ford 7.3L - Need better fuel economy?

109,000 Miles - No Rust, Perfect Shape (I’m the original owner)

View Staff Answer
Answer

The Edge Products 85300 Evolution CS2 would be a prefect option if you looking to obtain better fuel efficiency. Give our Diesel Experts a call for more details on the options avlible and best ways to increase your trucks performance/efficiency.

Does this programmer have a feature to adjust for increased tire size?
View Staff Answer
Answer

Yes, but it depends on the truck you have to be sure if this feature is available. Call us at 1-888-343-7354 to verify this with one of our Diesel Experts.

Can you adjust settings on the fly?
View Staff Answer
Answer

No, the Edge Products 85300 Evolution CS2 is not adjustable On-The-Fly.

What is the difference between the CS and CS2?
View Staff Answer
Answer

The CS2 is the newer updated version of the discontinued CS display. The CS2 offers all of the same tuning a features of the previous version packed into a more streamlined appearance. The CS2 has a Slim & Sleek Case Design, High Resolution Display, and even more customizable display features than ever before.
