Description

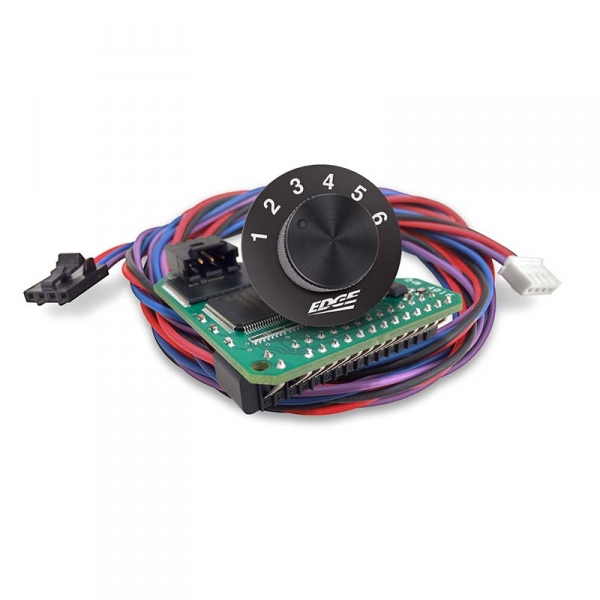

Unleash the potential of your 1995-2003 Ford 7.3L Powerstroke with the Edge Products Revolver Performance Chip & Switch. The Edge Revolver is the ultimate performance upgrade for your truck. This 6-position chip provides you with on-the-fly adjustable power levels that can be changed with just the twist of a dial.
The biggest benefit of using the Edge Revolver chip over the competition is simple: Edge makes the BEST Diesel tunes. At Edge products, diesel performance is their passion. Every day they install cool new toys on their in-house diesel fleet in order to create an extraordinary driving experience. Edge Products engineers build the products for people like themselves- Diesel Nuts! You can expect better tunes, better performance gains (level for level) and better drivability from an Edge Revolver chip than any other chip, tuner, or programmer around for your 7.3L.
Switch on the Fly for Tuning for your 7.3L Powerstroke
Each Revolver chip comes with a 6-position switch that will let you change your power level while driving. This might not seem like a big deal at first, but imagine you are getting ready to go on a camping trip and have your camping trailer hooked up. You probably want to use your tow setting for that so you flip the switch down to your tow setting. When you get to the camp ground and drop your trailer off, you want to head down to the nearest market for some camping supplies, and you want to do it FAST to show your buddy- just switch to your performance level! The bottom line is that all of your performance levels are available to you at the flick of a switch, no re-programming required and the change is instant!
Features:
- Easy Installation
- CARB EO# D-541-18
- Increased Horsepower
- Increased Engine Efficiency
- 6 On-The-Fly Adjustable Levels
- Edge Optimized Transmission Tuning (Automatic Models)
- Up To 140 HP & 250 Lb-Ft TQ.
Revolver Chip Tune Levels:
- Level 1: Stock
- Level 2: High Idle
- Level 3: 50 HP & 100 lb-ft
- Level 4: 75 HP & 150 lb-ft
- Level 5: 100 HP & 200 lb-ft
- Level 6: 140 HP & 250 lb-ft
Box Codes: Edge Products has made it so you can easily purchase a chip for your truck using your model year and transmission. If you'd like to check your Box Code, you can find it using the following information. On your ECU, there will be a large 4 Digit Code that is 3 letters and 1 number. These ECU Codes identify what ECU is in your truck, and they come in groups. Some examples might be NVK2 and NVK4, which share the same tunes which would have the same Box Code, but have different ECM codes.
1999-2003: Your ECU will be located behind the Drivers Side Kick Panel and on the
1995-1998: Your ECU will be located behind the Passengers Side Kick Panel.
Product Options:
14001 - 1995-1997 Ford 7.3L Powerstroke Automatic (Box Code TDE1)
This Master PCM code supports the following PCM codes LKM, MIF, NAW, PRE, PRY, TDE, TEE, YBT, and ZAA.
14002 - 1995-1997 Ford 7.3L Powerstroke Manual (Box Code MLE1)
This Master PCM code supports the following PCM codes ALF, AUG, BEG, GOB, MLE, and SOD.
14003 - 1999 Ford 7.3L Powerstroke Automatic (Box Code XLE7)
This Master PCM code supports the following PCM codes FUT, GLF, HPA, and XLE.
14004 - 1999 Ford 7.3L Powerstroke Manual (Box Code AWA4)
This Master PCM code supports the following PCM codes AWA, BDT, CLB, and DYK.
14005 - 1999.5-2001 Ford 7.3L Powerstroke Automatic (Box Code NVK4)
This Master PCM code supports the following PCM codes AGD, BKA, CNH, FIF, HAM, JLJ, KRK, LVS, MNM, MRT, NVK, PMT, RXM, and YEV
14006 - 2000 Ford 7.3L Powerstroke Manual (Box Code DAC3)
This Master PCM code supports the following PCM codes BAW, BIS, DAC, NBD, QEK, VRP, VXY, XPC, and ZHL.
14007 - 2001 Ford 7.3L Powerstroke Manual (Box Code APX1)
This Master PCM code supports the following PCM codes APX and ZXG.
14008 - 2002-2003 Ford 7.3L Powerstroke Auto (Box Code VDH4)
This Master PCM code supports the following PCM codes BXE, KEK, NWM, PBY, PRW, TMA, QLJ, VDH, and VDU.
14009 - 2002-2003 Ford 7.3L Powerstroke Manual (Box Code AEB3)
This Master PCM code supports the following PCM codes AEB and GDU.
14010 - 2000-2001 Ford 7.3L Powerstroke Excursion (Box Code MQJ2)
This Master PCM code supports the following PCM codes AVB, EBM, MQJ, NMC, AXD1, and UKN.
14011 - 2002-2003 Ford 7.3L Powerstroke Excursion (Box Code NQW2)
This Master PCM code supports the following PCM codes MAP, NQW, and SHT.
14000 - 1995-2003 Ford 7.3L Powerstroke - Blank (Requires Programming)
Note: This product is not intended for use on Vans or trucks with California emissions.
Product Options
| PART NUMBER | PART / MODEL YEAR |
|---|---|
| 14001 | 14001 - 7.3L Ford 1995-1997 Auto 6-Chip |
| 14002 | 14002 - 7.3L Ford 1995-1997 Manual 6-Chip |
| 14003 | 14003 - 7.3L Ford 1999 Auto 6-Chip |
| 14004 | 14004 - 7.3L Ford 1999 Manual 6-Chip |
| 14005 | 14005 - 7.3L Ford 1999.5-2001 Auto 6-Chip |
| 14011 | 14011 - 7.3L Ford 2002-2003 Excursion 6-Chip |
| 14010 | 14010 - 7.3L Ford 2000-2001 Excursion 6-Chip |
| 14009 | 14009 - 7.3L Ford 2002-2003 Manual 6- Chip |
| 14008 | 14008 - 7.3L Ford 2002-2003 Auto 6-Chip |
| 14007 | 14007 - 7.3L Ford 2001 Manual 6-Chip |
| 14006 | 14006 - 7.3L Ford 2000 Manual 6-Chip |
| 14000 | 14000 - Blank (Requires Programming) |
Specifications
- ID 32980
- Manufacturer Name Edge Products
- Shipping Weight 1.00 lb.
- Shipping Length 5 in.
- Shipping Width 6 in.
- Shipping Height 3 in.
- Fuel Type Diesel
- E-Code 2
- EO Number d-541-18
- Manufacturer Warranty* 1 Year
-
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
- Internal LR
Frequently Bought Together
In-Stock
Edge Products Accessory System EAS (expandable)
FROM
$64.05
Vehicle Fitment For:
Designed for use with the EDGE Products CS2/CTS2/CTS3
Designed for use with the EDGE Products CS2/CTS2/CTS3
In-Stock
Edge Products EAS 98106 OBDII Pass Through Splitter
PART# 98106
$54.09
Vehicle Fitment For:
All 1996 and Newer OBD II Compliant Vehicles
All 1996 and Newer OBD II Compliant Vehicles
Edge Products 98621 EAS Revolver To Insight Cable
PART# 98621
$230.95
Vehicle Fitment For:
1995-2003 Ford 7.3L Powerstroke (For Use With Edge Revolver Chips With Insight CTS2 & CTS3)
1995-2003 Ford 7.3L Powerstroke (For Use With Edge Revolver Chips With Insight CTS2 & CTS3)
Reviews
★★★★★
4.6/5 Stars out of 16 Reviews
1
0
1
0
14
Jmagill634 (Raton, NM) | July 9th, 2023
Awesome power gains, pulls a trailer much better now!
Jadin (Wyoming) | May 25th, 2023
The chip wouldn't connect and the switch wouldn't work.
Brian (Sheridan,Wyoming) | May 5th, 2023
Sure woke up my 1996 7.3! The only advice I would give would be to REMOVE the PCM from vehicle to clean the contacts properly. Complete removal is rather easy by taking out a few screws of left inner fender liner and pushing it down and out of the way. PCM will then slide out through firewall...Very happy with product!
Write a Review
Questions and Answers
Will this controler work with the 6 speed trans?
View Staff Answer
Answer
Yes, the EDGE PRODUCTS REVOLVER 6-POSITION PERFORMANCE CHIP will work on both Auto and Manual transmissions.
Yes, the EDGE PRODUCTS REVOLVER 6-POSITION PERFORMANCE CHIP will work on both Auto and Manual transmissions.
Will I need to upgrade any thing else on my motor or truck to use this product?
View Staff Answer
Answer
Additional upgrades are not required to run the Revolver 7.3L Powerstroke Chip. However, as with any performance upgrade additional modifications such as an intake and exhaust system will greatly help improve performance and allow you to maximize the benefits of something like the Revolver.
Additional upgrades are not required to run the Revolver 7.3L Powerstroke Chip. However, as with any performance upgrade additional modifications such as an intake and exhaust system will greatly help improve performance and allow you to maximize the benefits of something like the Revolver.
Is there a recommended tow setting?
View Staff Answer
Answer
Level 3 is commonly used for towing but we recommend monitoring EGT's whenever towing to ensure engine safety and optimization.
Level 3 is commonly used for towing but we recommend monitoring EGT's whenever towing to ensure engine safety and optimization.
Can you give me a breakdown on torque ratings per setting.
View Staff Answer
Answer
The Edge Revolver has the following torque gains. These numbers may vary depending on application and vehicle condition.
* 50 HP & 100 lb-ft
* 75 HP & 150 lb-ft
* 100 HP & 200 lb-ft
* 140 HP & 250 lb-ft
The Edge Revolver has the following torque gains. These numbers may vary depending on application and vehicle condition.
* 50 HP & 100 lb-ft
* 75 HP & 150 lb-ft
* 100 HP & 200 lb-ft
* 140 HP & 250 lb-ft
