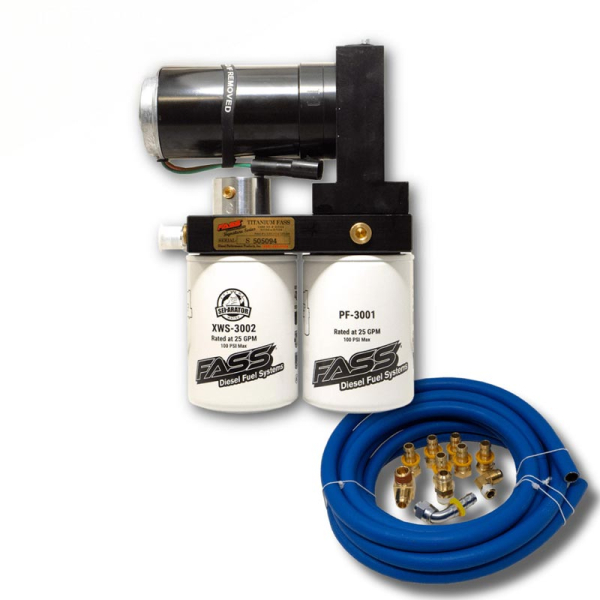

FASS TSF17290F240G Titanium Signature Series 240GPH Fuel System

Find the FASS TSF17290F240G Titanium Signature Series 240GPH Fuel System at XDP for your 2011-2016 Ford F-250/350 6.7L Powerstroke (Highly Modified) today. The Titanium Signature Series diesel fuel System was engineered by FASS Diesel Fuel Systems to be the top-performing, longest-lasting and most reliable aftermarket filtration System in the diesel industry. Rated at 240 gallons per hour, high pressures of 70PSI perfect for competition use and backed by FASS limited lifetime warranty the Titanium Signature Series fuel System can support your Ford 6.7L Diesel engine with enough fuel for 900-1200 HP aggressive tuning and high-performance fuel System upgrades. A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your injection Systems, effectively extending the life of both your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter and FASS Fuel Systems patented air/vapor removal process. Aftermarket Systems are important for both drivers and high-performance applications when looking to improve either fuel economy or increase horsepower/torque.

This kit includes a FASS BHF-1005 (Bulkhead and Suction Tube Kit). Machined from 6061 T-6 Billet Aluminum. This Bulkhead fitting is designed to mount directly to the factory fuel tank module (sending unit) to allow the FASS to directly draw and return fuel to the fuel tank module, effectively eliminating all 1/4 tank and 1/8 tank issues when installed correctly. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depths of fuel tanks. Properly installed, you can safely operate down to approximately 0 miles until empty.

The Titanium Signature Series diesel fuel Systems are the superior fuel System and filtration System, in the diesel industry. This is because at FASS Diesel Fuel Systems they focus on perfecting their Systems and how they are engineered. By doing this they have less than a 2% failure rating with their motor and a design that implements unique design features you can only get with FASS Diesel Fuel Systems

FASS Whisper Technology (FWT): was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System's high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a whisper while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.

Performance Radius Cuts (PRC): are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR) Technology: is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then return the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible.

Bolt On Bracket Mounts: Old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt-on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes and all brackets are made from machined steel for superior support and strength.

Features:

• Whisper Technology
• New Bolt On Bracket Installation
• Preset 60-65 PSI Fuel Pressure
• Complete Replacement System
• 240 Gallons Per Hour Flow Rating
• Removes Water, Air and Debris From Diesel Fuel
• 2 Micron Filtration Rating
• Protects and Extends The Life Of Your Injectors
• Improved Cold Weather Starts
• Decreases Carbon Monoxide and Carbon Dioxide Emissions
• 1/2" Fuel Lines and Ports
• Includes Bulkhead Fitting and Suction Tube Kit

Note: 290F/240gph/55psi
