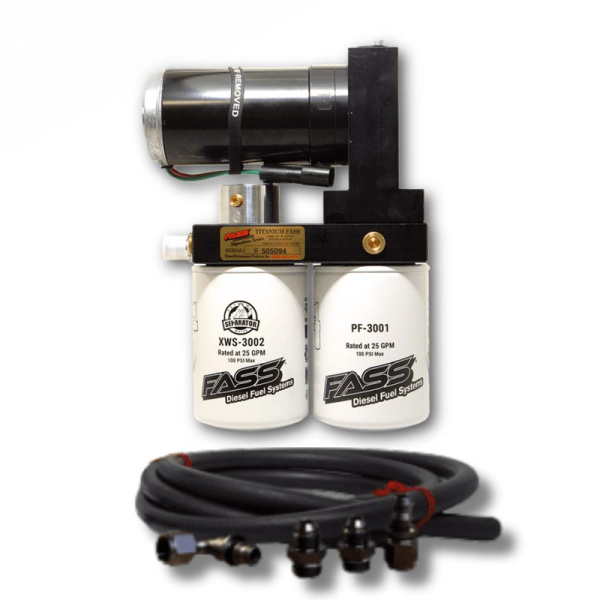

FASS TSPN16140F110G Titanium Signature Series Plus 110GPH Fuel System

Upgrade your Nissan Titan XD 5.0 diesel with the FASS TSPN16140F110G Titanium Signature Series Plus 110GPH Fuel System. The Titanium Signature Series Plus Fuel System is engineered by FASS to deliver enhanced fuel delivery and is the next evolution of their popular Titanium Signature Series Fuel System. The Titanium Signature Series Plus is equipped with ORB (O-Ring Boss) Fittings, 6061 aluminum black anodized fittings, and black fuel line for a smooth and clean installation. This system is rated at 110 gallons per hour and can provide sufficient fuel for many applications.

The Titanium Signature Series Plus also includes advanced filtration benefits such as an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Diesel Fuel Systems patented air/vapor removal process. These additions not only help fuel filtration, but can also help extend the life of your Titan's injection system and injectors.

FASS Whisper Technology (FWT)
Developed by the engineering team at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation systems. By using radius cuts, tighter tolerances on all gears and a high quality military Specd Coating over the aluminum base, FASS Fuel Systems is able to develop the quietest fuel air separation system on the market.

Performance Radius Cuts (PRC)
An advanced machining technique used to improve the flow of fuel through the pump by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and also to prevent stagnant fuel pockets from forming within the corner of a 90 degree bend. FASS Titanium Signature Series Fuel Pumps are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90 degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR)
Technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine and returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is constantly being moved and cleaned. This guarantees that your truck always has the freshest and cleanest fuel possible.

Bolt On Bracket Mounts
Old mounting styles required drilling or welding when mounting your pump. This has been simplified with the FASS bolt on brackets that utilize your factory bed bolt that secures your truck bed to the frame. Mounting the Titanium Signature Series Pump takes only minutes and all brackets are made from machined steel for durability, support and strength.

Titanium Signature Series Plus Includes:
ORB (O-Ring Boss) Fittings
6061 Aluminum Black Anodized Fittings
Black Fuel Line For An Ultra-Clean Installation

Features:

• 110GPH @ 78PSI
• Whisper Technology
• Fuel Mileage Improvement
• 2 Micron Filtration Rating
• Complete Replacement System
• Improved Cold Weather Starts
• 1/2-Inch Fuel Lines and Ports
• Improved Fuel Volume Delivery
• 30,000 Mile Filter Life Expectancy
• Removes Water, Air, & Debris from Diesel Fuel
• Increases Efficiency, Performance, & Smoother Idle
• Optional Electric Heater & Fuel Pressure Gauge Port
• Protects & Extends The Life Of Your Fuel System & Injectors
• For Applications With Stock - 700HP
