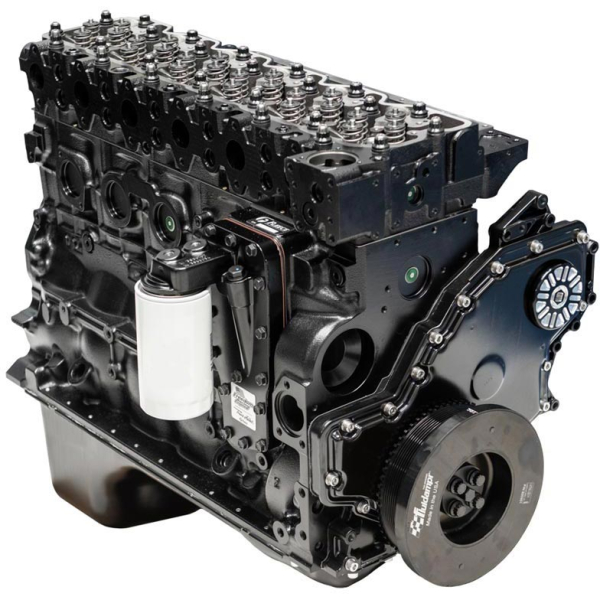

Fleece Freedom Street HD Series 5.9L Long Block Crate Engine FPE-CUMM-59L-LB-HD

Fleece Freedom Street HD Series 5.9L Long Block Crate Engine FPE-CUMM-59L-LB-HD is perfect for severe duty or heaving heavy towing applications up to 700 HP. Machined and assembled in Fleece's state-of-the-art Freedom Racing Engine shop, these engines are remanufactured with the critical upgrades to the common problem areas. Fully blueprinted with all clearances exceeding factory specifications, the Street Series engine will get you back on the road faster.

Final Testing Includes:
Vacuum testing of the entire coolant system.
Pre-torque test to pre-lube and verify oil flow to all components.
Torque test and measurement of crankshaft loads.
Run-in test to verify oil pressure and flow.
Compression test on all cylinders.

Features:

• New Tappets
• New Oil Pump
• New Oil Cooler
• New Head Gasket
• New Engine Oil Pan
• New Pistons And Rings
• New Lower Gasket Kits
• Hamilton 178/208 Camshaft
• Custom Age 625 Head Studs
• Reconditioned Factory Crankshaft
• New H Series Main And Rod Bearings
• Aftermarket Heavy Duty Connecting Rods
• Freedom Series Street HD Cylinder Head
• New Freeze Plugs In All Block Locations
• New Front And Rear Main Seals With Wear Sleeve
• Upgraded 12mm Main Studs And Hardened Main Dowels
• New Oil Pressure Relief Valve And Regulator Spring
• A Case Of Amsoil Break-In Oil And Fleetguard Filter
• Includes Fluidampr With Full Power Kit And 5/16" Dowel Installed In Crank Snout
• Reconditioned Block That Is Decked, Bored, Torque Plate Honed, Align Honed, Pressure Tested, And Painted Black.

Included Gaskets & Seals:

• Camshaft Seal
• Water Pump Seal
• CP3 Snout O-Ring
• Fuel Banjo Washers
• Crankcase Drain Gasket
• Additional Sensor O-Rings
• CP3 Nut Access Cover Gasket
• Coolant Inlet, A/C Compressor Bracket O-Ring

The following new valvetrain components are recommended to accompany this long block but are not included:

• Rocker Arm Assemblies (FPE-CUMM-RAA-CR)
• Pushrods (FPE-CUMM-S2-PROD)
• Billet Rocker Arm Bridges (FPE-BRAB-C1)

Manufacturer Warranty*:
12 Months / Unlimited Miles (Standard) | 12 Months / 50,000 Miles (Commercial)
View Warranty Form
